Home > Products > Ridge Cap Roll Forming Machine > Metal Roofing Iron Sheet Aluminum Cap Making Machine
Metal Roofing Iron Sheet Aluminum Cap Making Machine
- Tianjin new port
 - T/T

You May Like
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 8-10m/min | Place of Origin | Hebei, China | |
| Brand Name | HC Steel Sheet Roof Ridge Capping Cold Roll Forming Machine | Model Number | HC500 Metal Roofing Iron Sheet Aluminum Cap Making Machine | |
| Power(W) | 3+3KW | Voltage | 380V | |
| Dimension(L*W*H) | 5800X1150X1510mm | Weight | 1.8T | |
| Certification | CE&ISO | Warranty | 1year | |
| After-sales Service Provided | Overseas service center available |
Product Description

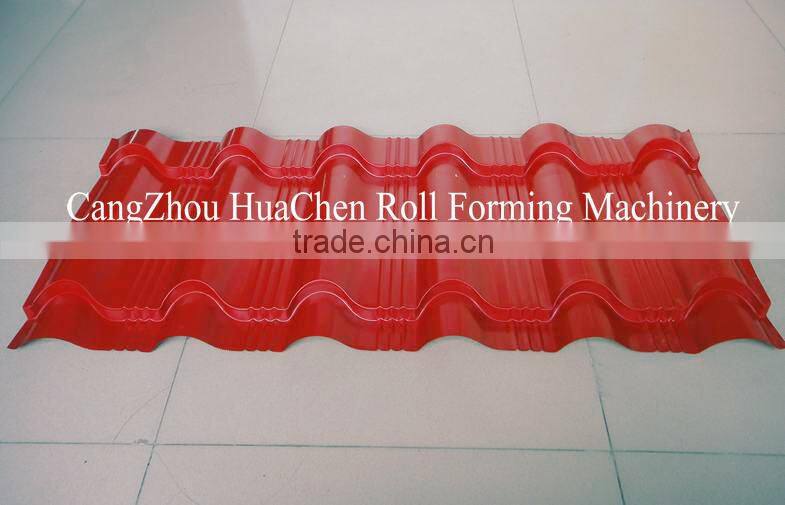

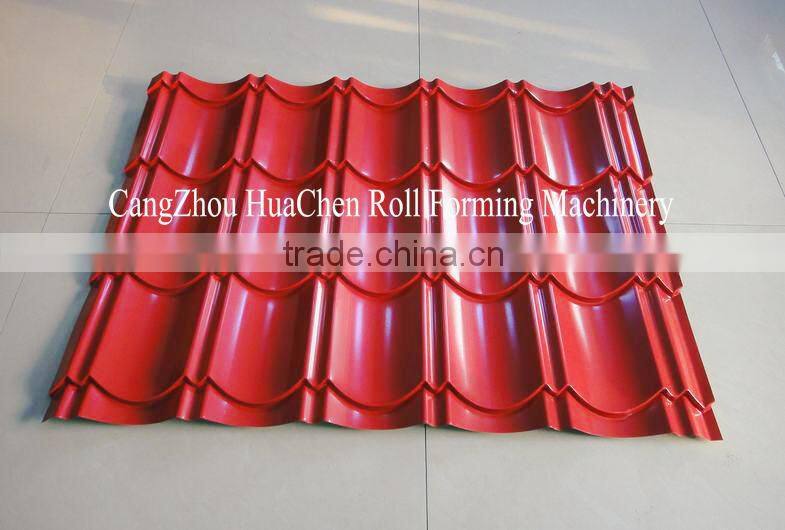

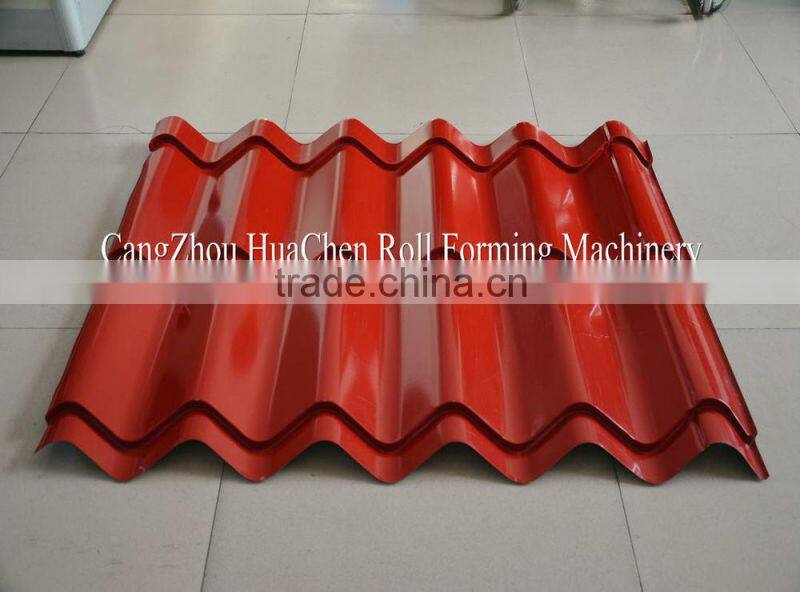

After Metal Roofing Iron Sheet Aluminum Cap Making Machine finished,we take pictures and keep the finished sheets to our showroom.We test our machine strictly to make sure every customer get it satisfied. Your profile drawing is welcomed and acceptable. We can also design the roll forming machine as your requirement.
Detailed Parameters of Metal Roofing Iron Sheet Aluminum Cap Making Machine , want to operate it yourself ?
No.  | Metal Roofing Iron Sheet Aluminum Cap Making Machine  | |
1  | Suitable material  | Color steel sheet ,galvanized steel sheet, aluminium sheet  |
2  | Width of material  | 370mm or as you required  |
6  | Thickness of material  | 0.3-0.6mm or as your needs  |
2  | Working speed  | 8-10m/min  |
3  | Main motor power  | 4kw with cycloidal reducer  |
4  | Hydraulic station power  | 4kw  |
5  | Electrical control system  | PLC control system  |
7  | Shaft diameter  | 70mm  |
8  | Roller station  | 12 rows  |
10  | Dimension  | 6200x1500x1910mm  |
11  | Weight  | About 1.8 T  |
12  | Voltage  | 380V 3phase 50HZ or as the customer's requirements  |
13  | Material of roller  | High grade 45# forged steel plated with hard chrome plating  |
14  | Material of cutting  | Cr12 mould steel with quenched treatment  |
15  | Working time  | Can be 24 hours  |
16  | Workers  | 1-2 only  |
Please Note: All the parameters can be designed as your requirement.
Let me show you how to operate Metal Roofing Iron Sheet Aluminum Cap Making Machine

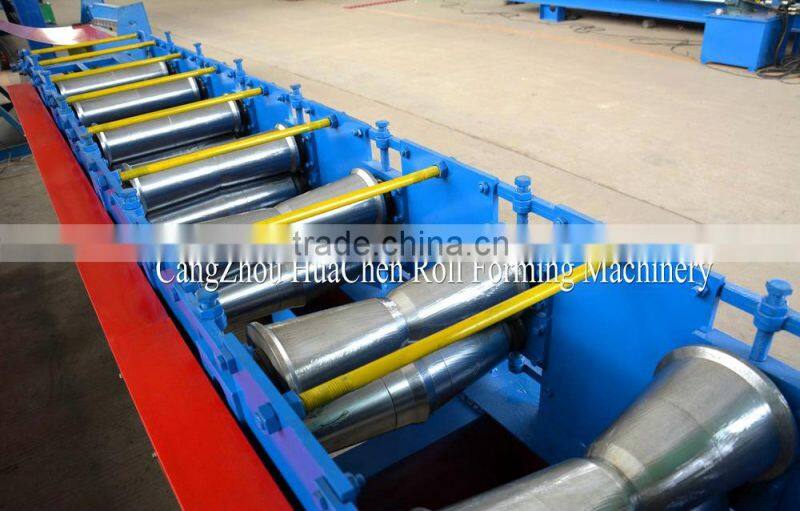

Decoiling→Feeding & Guiding→Roll Forming →Cutting→Finished Products To Support Table
Not interested in this design ? Here are other profiles for your reference.





Worry about Packing and delivery ?
1.Main Metal Roofing Iron Sheet Aluminum Cap Making Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.
