Home > Products > Ridge Cap Roll Forming Machine > Cnc Metal Tile Roofing Ridge Cap/ Angle Roll Formming Machine Made in China

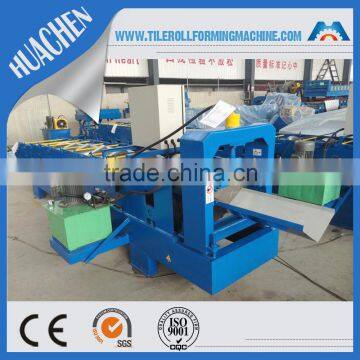

Cnc Metal Tile Roofing Ridge Cap/ Angle Roll Formming Machine Made in China

FOB Price

US$ 5,000 - 19,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Tile Forming Machine
Tile Type	Colored Steel	Use	Other, ridge cap machine
Production Capacity	15-20/min	Place of Origin	Hebei, China
Brand Name	HC	Model Number	CH343 angle roll forming machine
Power(W)	3+3KW	Voltage	380V
Dimension(LWH)	6600X1150X1510mm	Weight	2.5T
Certification	ISO/CE	Warranty	1year
After-sales Service Provided	Overseas service center available

CNC Metal Tile Roofing Ridge Cap/ Angle Roll Formming Machine Made in China

working flow:

CNC Metal Tile Roofing Ridge Cap/ Angle Roll Formming Machine Made in China

Manual Uncoiler—Angle Forming Machine—Computer Control System—Hydraulic Control System—Form Cutter

parameter

CNC Metal Tile Roofing Ridge Cap/ Angle Roll Formming Machine Made in China

No.	main parameter of Angle Forming Machine
1	Suitable to process	Color steel plate
2	Width of the plate	343mm
3	Roller	12 rows
4	Dimensions	7700015501910mm
5	Power	3+3 kw
6	Thickness of the plate	0.3-0.6mm
7	Productivity	4m/min
8	Material of the cutting blade	Cr12
9	Diameter of the roller	Φ66mm
10	Weight	About 3.4T
11	Voltage	380V 50Hz 3phases
14	Control system	PLC control

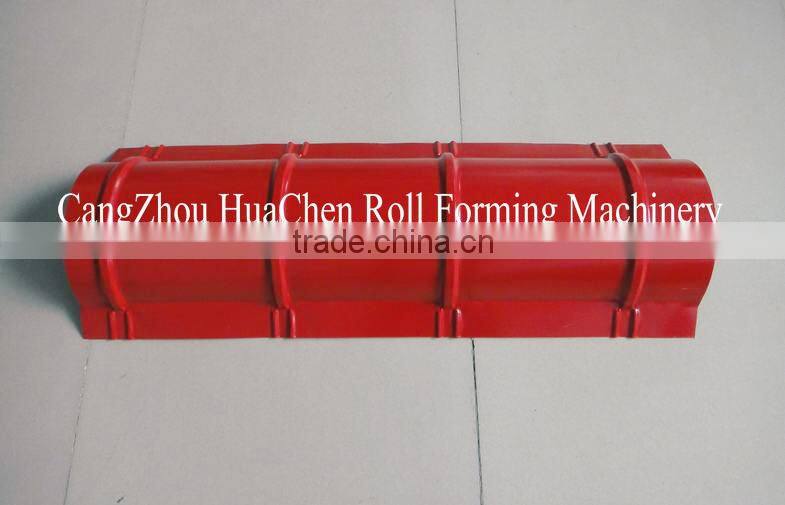

sheet sample

CNC Metal Tile Roofing Ridge Cap/ Angle Roll Formming Machine Made in China

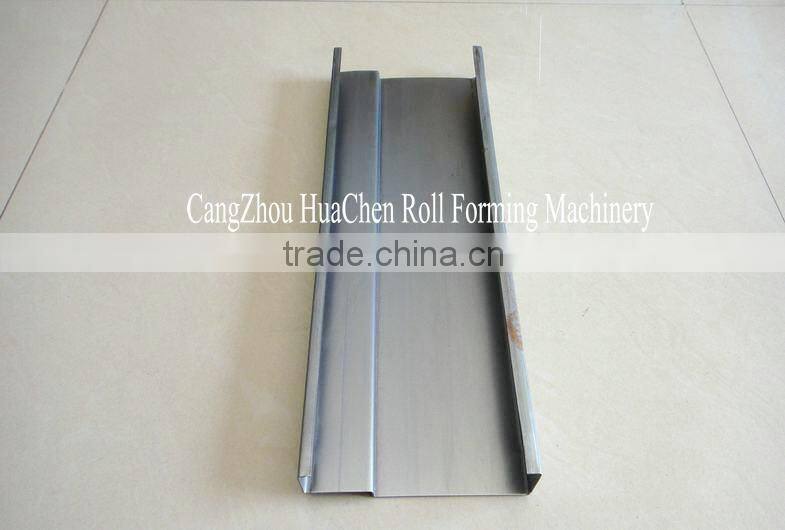

more profiles:

Did Not Find What You Want? We Have More Here!

Helpful Device

The Following Parts Are FREE!

Certificate &Loading

We have CE certification and ISO certification.
