Home > Products > Floor Deck Roll Forming Machine > HOT Aluminium And Galvanized Steel Panel Floor Deck Roll Forming
HOT Aluminium And Galvanized Steel Panel Floor Deck Roll Forming
- Tianjin new port
- T/T
You May Like
-
Full Automatic Galvanized Steel Panel Floor Deck Machine
-
Low Price Steel Floor Tile Making Machine
-
China Supplier Steel Floor Deck Machine Manufacturing Machine
-
Cnc China Cold Rolling Machinery, Steel Floor Deckk Forming Machine
-
China Supplier Steel Floor Deck Forming Machine
-
Galvanized Metal Sheet Floor Deck Forming Machine China
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Steel | Use | Floor | |
| Production Capacity | 8-10m/min | Place of Origin | Hebei, China | |
| Brand Name | HC | Model Number | HC161 | |
| Power(W) | 33+7.5KW | Voltage | 380V | |
| Dimension(L*W*H) | 11900X1860X1510mm | Weight | 28T | |
| Certification | CE&ISO | Warranty | 1year | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
Customized profile steel floor tile making machinecustomized profile acceptable
short production cycle
ISO&CE
PLC control
HOT Aluminium And Galvanized Steel Panel Floor Deck Roll Forming
HOT Aluminium And Galvanized Steel Panel Floor Deck Roll Forming Main Parameter
No. | main parameter of Floor Deck Roll Forming Machine | |
1 | Suitable to process | Color steel plate |
2 | Width of the plate | 1500mm |
3 | Rollers | 26rows |
4 | Dimensions | 11.9*1.85*1.51m |
5 | Power | 33+7.5kw |
6 | Thickness of the plate | 1.5mm |
7 | Productivity | 8-10m/min |
8 | Diameter of the roller | Φ100mm |
9 | Weight | About 31.8T |
10 | Voltage | 380V 50Hz 3phases |
11 | Material of the cutting plate | Cr12 |
12 | Hydraulic | 40# |
13 | Processing precision | Within 1.00mm |
14 | Control system | PLC control |

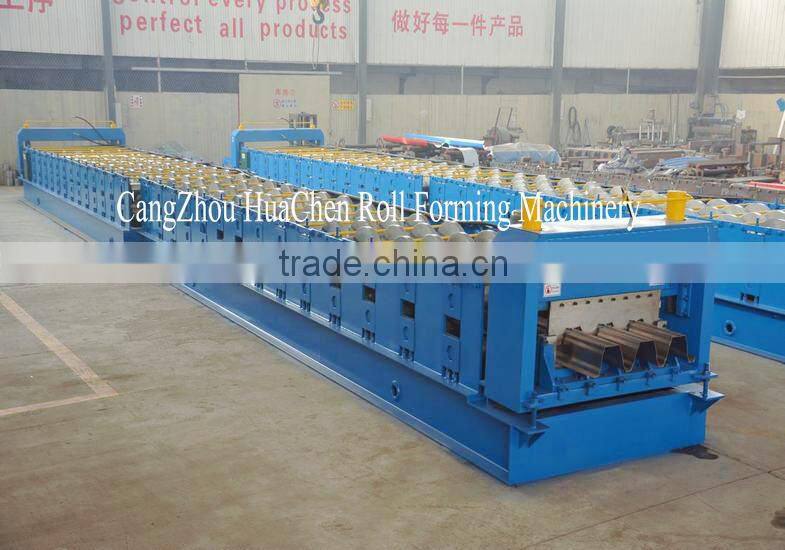

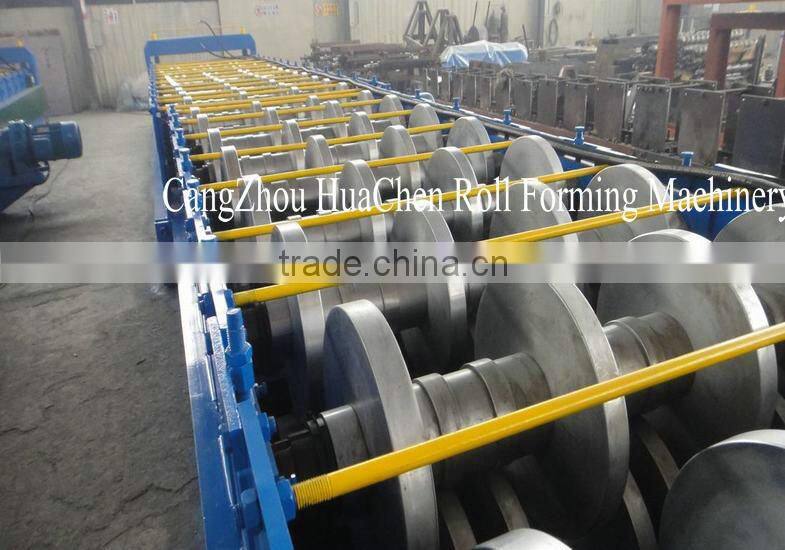

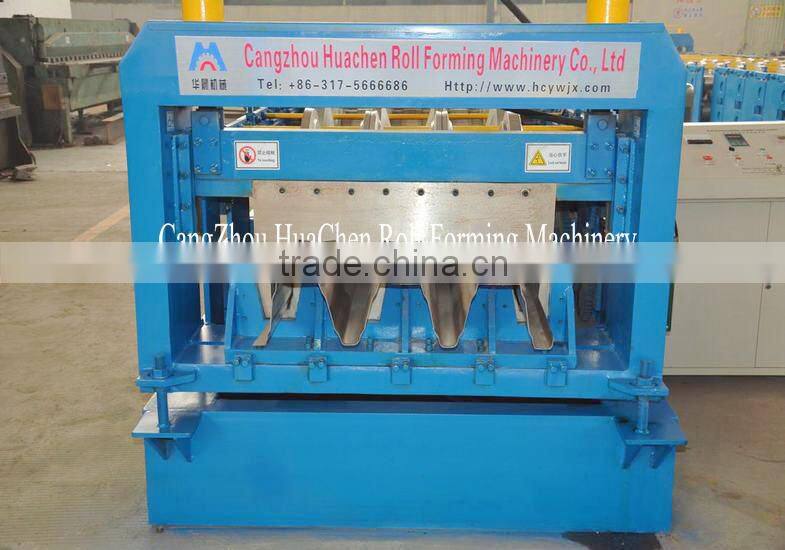

HOT Aluminium And Galvanized Steel Panel Floor Deck Roll Forming Main Machine
Rolling material: Forging Steel 45#,Rolling galvanization thickness:0.05 mm
Equipment components: Man-made uncoiler-roll forming machine-computer control system-
hydraulic control system-cutting

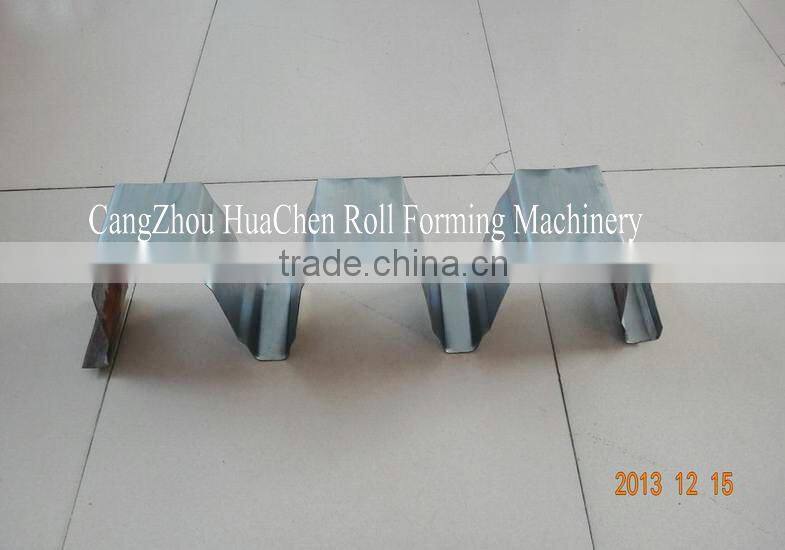

HOT Aluminium And Galvanized Steel Panel Floor Deck Roll Forming Production Sample
This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.
Sample
We have a professional design team,
Can also design and manufacture according to customer's requirement.
Loading Scene
We also have professional worker in charge of loading to make sure the machine without broken during transportation
ISO certificated
Thank you for your attention about our products. Your support is our progressive force
Hoping have a chance to cooperate with you. Thanks
