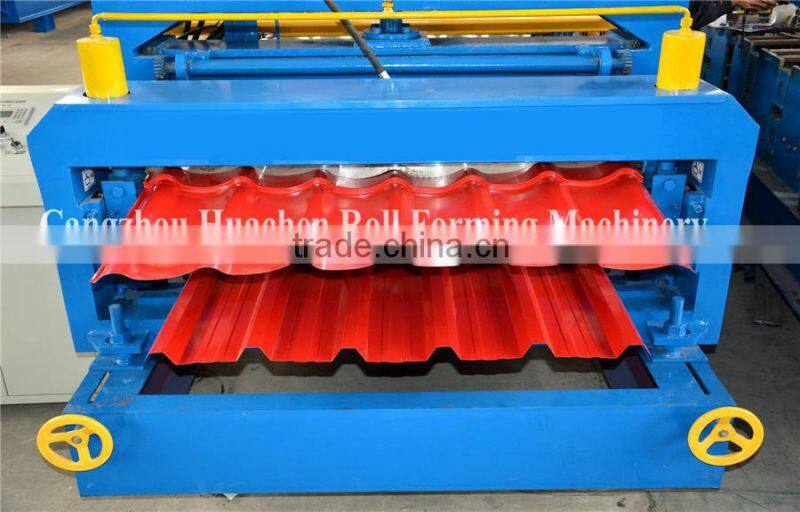

Corrugated Aluminum Siding Cold Roll Forming Machine
- Tianjin new port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine, Cold Galvanizing Line
-
HC Galvanized Color Steel Sheet Double Roof Forming Machine
-
Fast Speed IBR Profile Roof Metal Roll Forming Machine for Sale
-
Double Layer Corrugated Metal Roofing Sheet Forming Machine
-
Hot In Nigeria Aluminium/Iron Roofing Sheet Making Machine
-
Double Layer Galvanized Roofing Sheet Metal Manufacturing Machine Quality Choice
Product Details
| Condition | New | Type | Other, Tile Forming Machine, Corrugated Aluminum Siding Cold Roll Forming Machine | |
| Tile Type | Colored Glaze Steel | Use | Roof | |
| Production Capacity | 2-10m/min | Place of Origin | Hebei, China | |
| Brand Name | HC | Model Number | HC23-33 | |
| Power(W) | 4+4KW | Voltage | 380V | |
| Dimension(L*W*H) | 9500*1550*1910mm | Weight | 5.8T | |
| Certification | ISO | Warranty | 1 year | |
| After-sales Service Provided | Overseas service center available |
Product Description
After Corrugated Aluminum Siding Cold Roll Forming Machine finished,we take pictures and keep the finished sheets to our showroom.We test our machine strictly to make sure every customer get it satisfied. Your profile drawing is welcomed and acceptable. We can also design the roll forming machine as your requirement.
Detailed Parameters of Corrugated Aluminum Siding Cold Roll Forming Machine , want to operate it yourself ?
No. | Corrugated Aluminum Siding Cold Roll Forming Machine | |
1 | Suitable material | Color steel sheet ,galvanized steel sheet, aluminium sheet |
2 | Width of material | 1250mm or as you required |
6 | Thickness of material | 0.3-0.6mm or as your needs |
2 | Working speed | 2-10m/min |
3 | Main motor power | 4kw with cycloidal reducer |
4 | Hydraulic station power | 4kw |
5 | Electrical control system | PLC control system |
7 | Shaft diameter | 70mm |

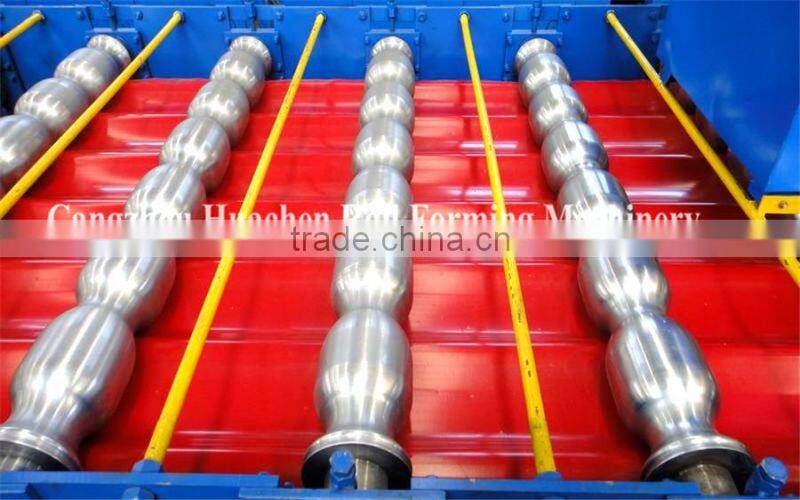

8 | Roller station | Up layer:12 rows Down layer:15 rows |
10 | Dimension | 9500x1500x1910mm |
11 | Weight | About 5.8 T |
12 | Voltage | 380V 3phase 50HZ or as the customer's requirements |
13 | Material of roller | High grade 45# forged steel plated with hard chrome plating |
14 | Material of cutting | Cr12 mould steel with quenched treatment |
15 | Working time | Can be 24 hours |
16 | Workers | 1-2 only |
Please Note: All the parameters can be designed as your requirement.
Let me show you how to operate Corrugated Aluminum Siding Cold Roll Forming Machine
Decoiling→Feeding & Guiding→Roll Forming →Pressing→ Cutting→Finished Products To Support Table
Not interested in this design ? Here are other profiles for your reference.
Worry about Packing and delivery ?
1.Main Corrugated Aluminum Siding Cold Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.
