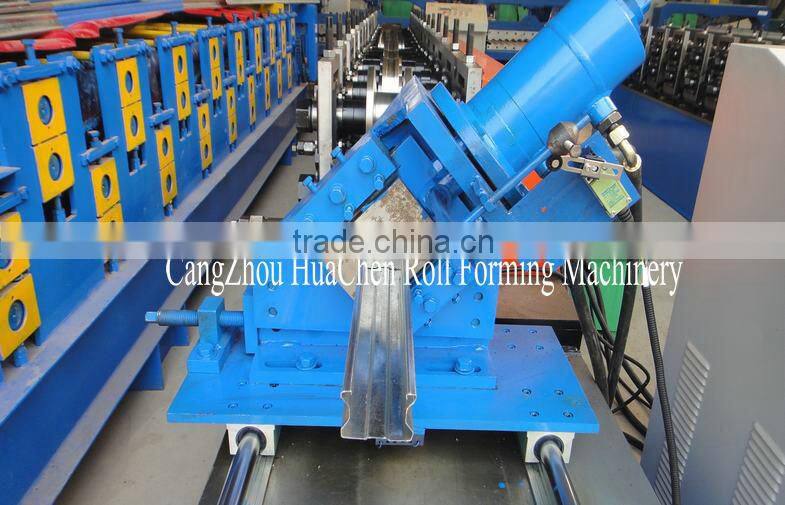

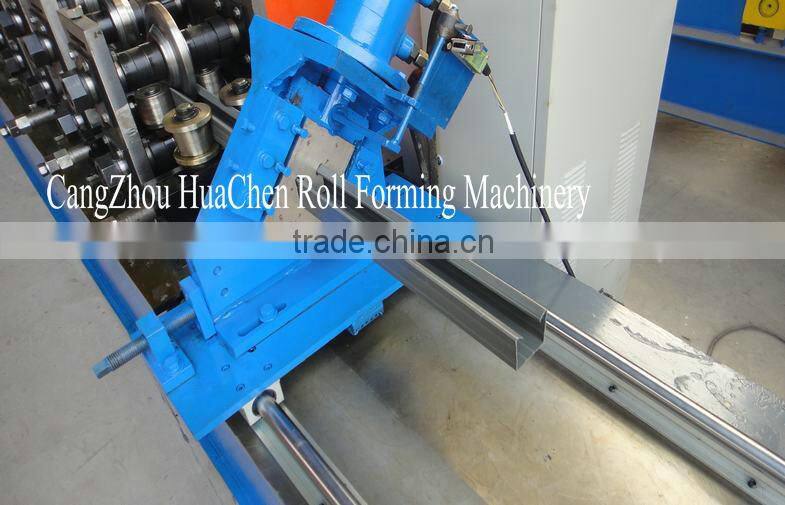

High End Fast Speed Angle Iron Profile Making Machine
- Tianjin new port
- T/T
You May Like
-
Automatic C Channel Steel Purlin Roll Forming Machine
-
C Z Purlin Roll Forming Machine, C Z Channel Tile Making Machine
-
HC Aluminium Linear Ceiling Roll Forming Machine
-
Metal Stud and Track Roll Forming Machine
-
Steel C Channel Roll Forming Machine C Section Purline Cold Roll Forming Machine
-
C Purlin Metal Stud And Track / Truss Making Machine High Effiency
Product Details
| Place of Origin | Hebei, China | Brand Name | HC | |
| Model Number | HC64 | After-sales Service Provided | Overseas service center available |
Product Description
After angle iron profile making machine finished,we take pictures and keep the finished sheets to our showroom.We test our machine strictly to make sure every customer get it satisfied. Your profile drawing is welcomed and acceptable. We can also design the roll forming machine as your requirement.
Detailed Parameters of angle iron profile making machine , want to operate it yourself ?
No. | angle iron profile making machine | |
1 | Suitable material | Color steel sheet ,galvanized steel sheet, aluminium sheet |
2 | Width of material | 170mm or as you required |
6 | Thickness of material | 0.3-0.6mm or as your needs |
2 | Working speed | 8-10m/min |
3 | Main motor power | 4kw with cycloidal reducer |
4 | Hydraulic station power | 4kw |
5 | Electrical control system | PLC control system |
7 | Shaft diameter | 70mm |
8 | Roller station | 14 rows |
10 | Dimension | 6100x1150x1510mm |
11 | Weight | About 1.6 T |
12 | Voltage | 380V 3phase 50HZ or as the customer's requirements |
13 | Material of roller | High grade 45# forged steel plated with hard chrome plating |
14 | Material of cutting | Cr12 mould steel with quenched treatment |
15 | Working time | Can be 24 hours |
16 | Workers | 1-2 only |
Please Note: All the parameters can be designed as your requirement.
Let me show you how to operate angle iron profile making machine
Decoiling→Feeding & Guiding→Roll Forming →Cutting→Finished Products To Support Table
Not interested in this design ? Here are other profiles for your reference.
Worry about Packing and delivery ?
1.Main angle iron profile making machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.
