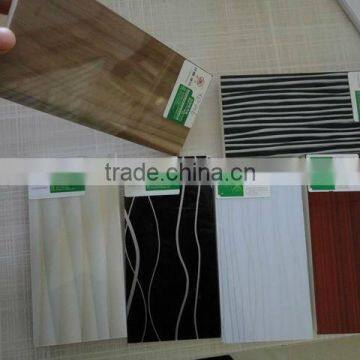

PVC Sheet With Acrylic Finished

Place of Origin	China		Brand Name	Xiaodan
Model Number	XDA1001		Material	PVC
Thickness	3-25mm		Size	1220*2440mm

Specifications

PVC Sheet With Acrylic Finished
size:1220*2440mm
thickness:3-25mm
density:0.45-0.9

PVC Sheet With Acrylic Finished

size:1220*2440mm
thickness:3-25mm
density:0.45-0.9



Introduction:

Xiaodan PVC free foam sheet is a new type of environmental protective plastic materials which instead of woods and steels. Comparing to woods, it has many advantages, light-weight, flexible, anti-flame, alkaliacid resistance, moisture proof, water proof, good heat preservation, sound insulation, shock absorption and so on. The board can be filmed or printed colorfully. It owns many ways of processing such as nailing,sawing,planning,cementing, jointing,etc



Features:

1. Light, non-absorbent, fire retardant and self-extinguishing

2.Weather proof, vandal proof, and can be shaped, molded, painted and screen printed.

3.Non-corrosive, non-toxic and chemical resistant

4.Tough, rigid with high impact strength

5.Non-warping and stain proof

6.Easy to clean and maintain

7.Easy to operate, including glue, nail, cut or shape.



Application:

1.Advertisement: exhibition & display,digital printing,silk screen printing,engraving materials,sign board, etc.

2.Furnitureoffice furniture,cabinet,bath cabinet,etc.

3.Finishing Materialdecorative sheets,storage racks,room segments,etc.

4.Industrial Application:thermoforming products,refrigeratory warehouse project,environmental protection.



Specification:



Project	Unit	Index
Surface density	kgm3	500~900
Elongation strength	mpa	≥10
Elongation rate at break		≥15
Bending strength	mpa	≥20
Impact strength of free beam	kjm2	≥10
Schauder hardness	D	≥55
Softening Point	°C	≥70
Water absorption







Standard size:	length*width:	1220*2440mm(48"*96");  /Customerized
	thickness:	3mm,4mm,5mm,6mm,8mm,10mm (3/8"), 12mm, 13mm (1/2"),15mm, 16mm (5/8"), 18mm ,25mm
	density:	0.45-0.9g/m3
	color:	white
tolerance:	densities:	+/- 0.03
	length:	-0 to +10mm
	width	-0 to +5mm
	thickness	+/- 4%
