2m Wheelchair Lift Table for Disabled

FOB Price

US$ 3000.00 - 3000.00 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	Honty
Model Number	HT-4.0	Lift Mechanism	Lift Chain
Lift Drive / Actuation	Electric Motor	Power	220V/50HZ/25A
Rated Loading Capacity	250kg	Min. Lifting Height	65mm
Max. Lifting Height	4.0m	Table Size	1.43*0.9m
Overall Dimensions	2.01.431.0m	Weight	880kg
Certification	CE certificate	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

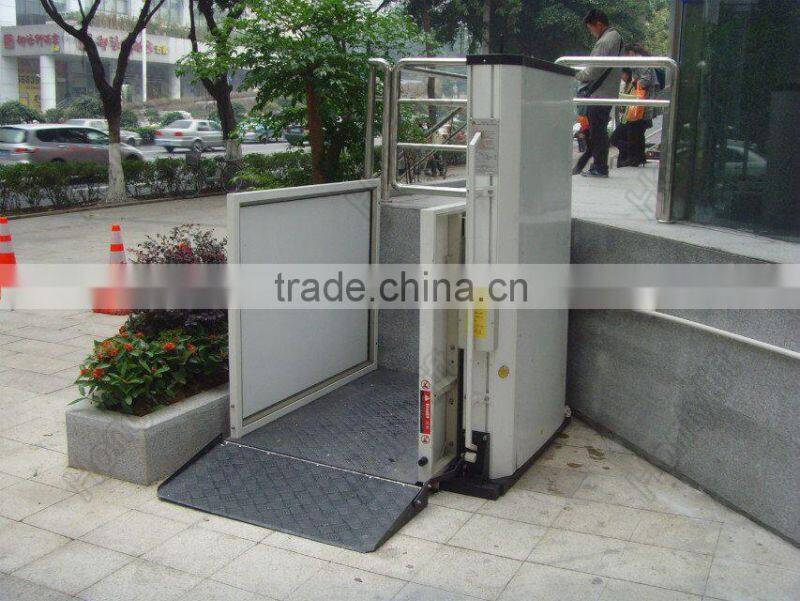

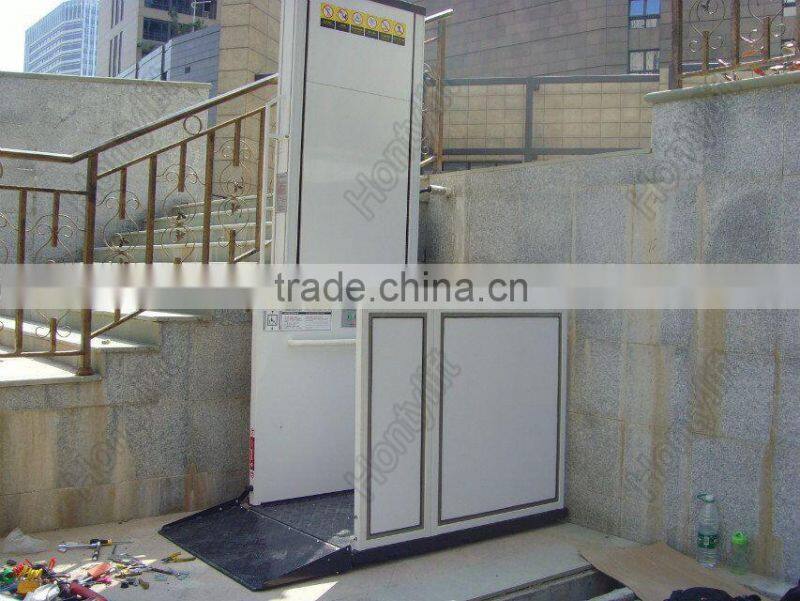

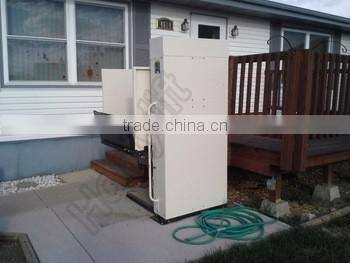

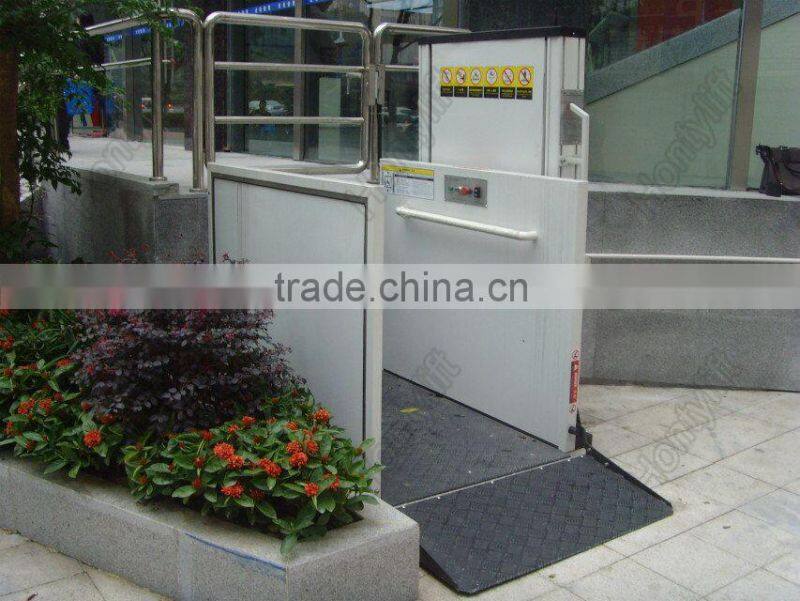

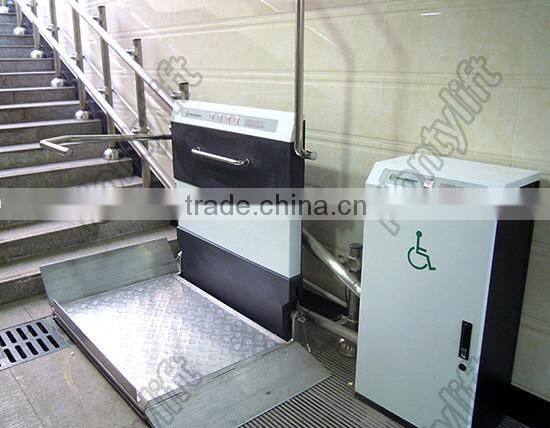

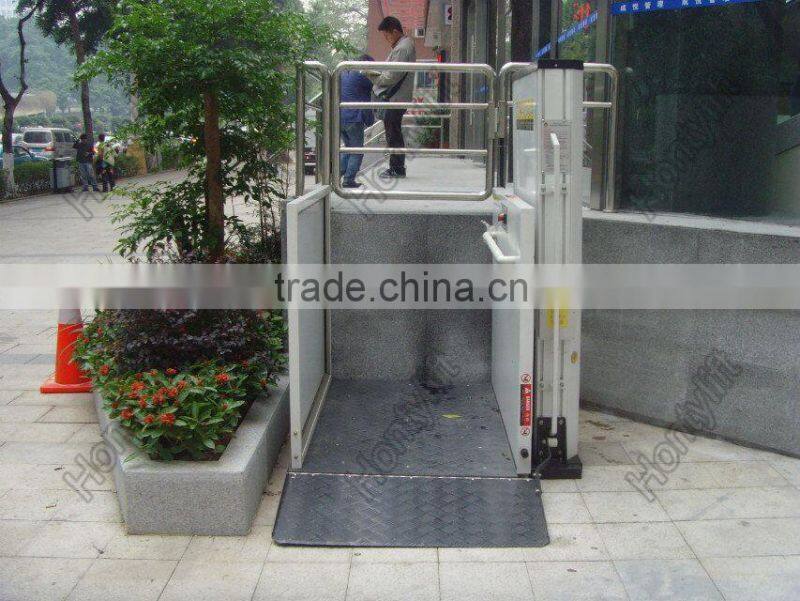

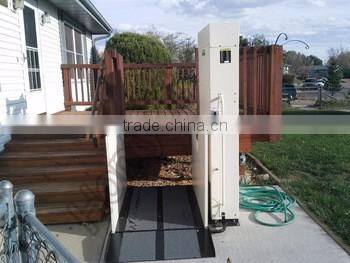

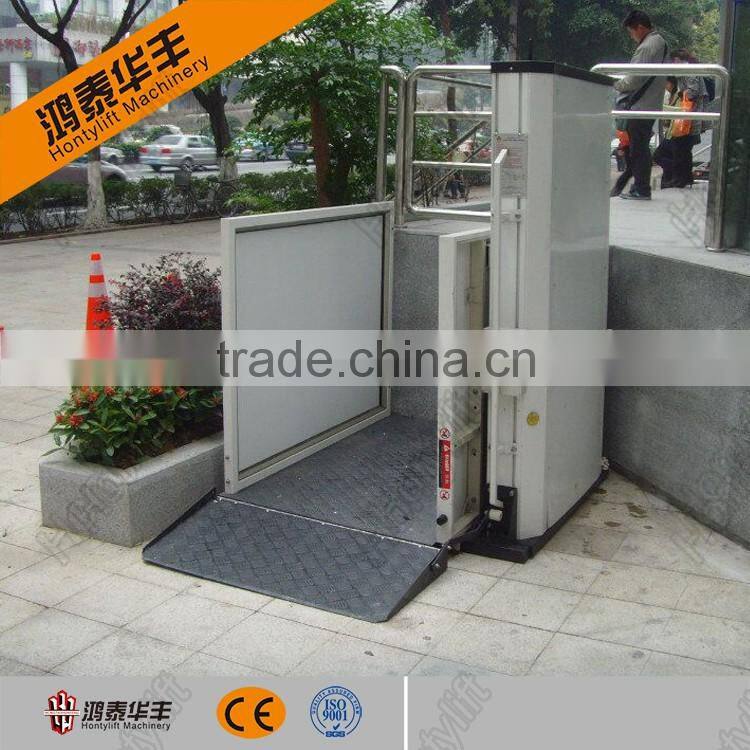

2m wheelchair lift table for disabled

wheelchair lift introduction

Adapt "c" steel reinforced high-strength rail.
Drive by electro-hydraulic , up and down smoothly.
With rupture protection device.
The surface is decorated in stainless.
Applicable to residential communities, hospitals, schools, restaurants, hotels and other public places.

wheelchair lift parameter

Main parameters:
parameter
Platform size	1.43(L)* 0.9m(W)
Max Platform Height	6m
Speed	0.06~0.1m/s
Load capacity	250kg
Control voltage	24V/DC
Power Output	1.5kw
Power Input	220V/50HZ/25A (or customized for local power supply)
performance
Drive System	Hydraulic
Control Mode	Inching Switch or Automatic
Drive Control	Self-resetting system
Control Device	Calling box (installed on the wall nearby) and remote controller(Extra optional)
Overload	Protection Over current relay
Material of Platform	Checkered slip-proof aluminum alloy
Operation Panel	Polished aluminum Alloy
Emergency Stop	The lifting and lowering process can be stopped immediately by pressing the emergency button.
Safety Interlock	Lock the platform when it is out of control
Safety Sensor	The operation must be stopped immediately the safety edge meets
Safety Sensor	obstacles during operation.
Emergency lowering	The platform can be lowered by opening
Emergency lowering	hydraulic valve manually or rolling screw rod.
others
Auto-flap	Turn up after lifting
Painting	Plastic electrostatic spraying
Installation	Non-pit installation, directly fixed to concrete floor (the concrete
Installation	floor below the platform shall not be lower than the ground)
Working temperature	From -10°~60°C
Working Condition	Both indoors and outdoors
Safety Wane Working Range	75°
Guard panel & drive cabinet (framework)	Aluminum Alloy / 304 stainless steel

wheelchair lift type sheet

Available Configuration
Name	use
Security wall	Aluminum alloy ,Glass shaft
Door Protection device	Interlock device to secure safe
DC models	Automatic built-in battery power supply system ,
DC models	Ensure the machine after a power failure using
Auxiliary control	Control box can be mounted at the desired position
Auxiliary control	with the machine circuit linkage operation
Panel	304 brushed stainless steel sheet / Electrostatic spraying
Protectative Platform	304 brushed stainless steel sheet / Electrostatic spraying
Lifting height	As user needs to provide 80000mm mode

Available Access Way : 90°adjacent access or 180°through access

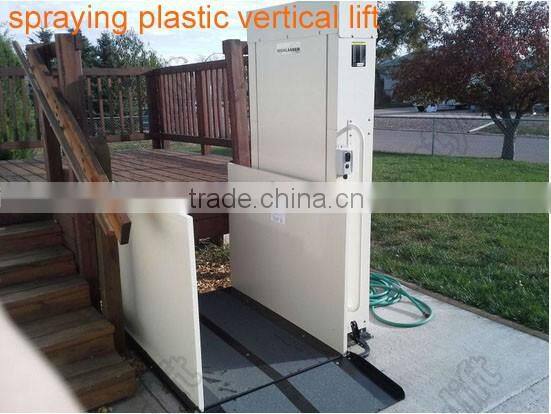

Available Materials : Two choices including stainless steel & spraying plastic material can be selected as user request.
