1260 Heat Resistant Ceramic Fiber Module for Tunnel Kiln

Ceramic Fiber Module

Description

1. CT ceramic fibre module adopt high quality ceramic fibre blanket, which is made up to compression module after folding, compression, packing
2. module can choose kinds combination of anchor and furnace body, installation method is so simple that quicken the speed of furnace lining construction largely
3. After installation, the bandaging are cut and the modules and so to form an integrated insulating lining.
4. The anchor system in remote from he module hot face, maintaining the metal components at a relatively low temperature

Features

1. The anchorage on the back allows for both in-line and parquet installation.
2. The decompression of the blanket folds gives tightly sealed intermodular joints with both configurations
3. The resilient blanket is resistant to mechanical damage
4. Low thermal conductivity give high thermal efficiency
5. Total resistance to thermal shock
6. No drying or curing required – so available for production operation immediately after installation
7. The anchor is remote form the module hot face

Typical Applications

1. Heat treatment: annealing furnace, tempering furnace, soaking pit, etc
2. Ceramic: whiteware, sanitary ware and brick firing tunnel and intermitted kiln.
3. Iron and Steel: Transfer ladle lids, soaking pit covers, reheating furnace, continuous annealing furnaces, lift-off furnaces
4. Petrochemical: ethylene pyrolysis furnace,reformers,atmosphere / reduced pressure furnace,ductwork pyrolysis heaters
5. Aluminium: Soaking pits and covers, bale out furnaces, homogenizing and ductwork
6. Utilities: waste heat recovery units, combustion chambers and boiler ductwork

Date sheet

Remark

The values given herein are typical average values obtained in accordance with accepted test methods and are subject to normal manufacturing variations. They are supplied as a technical service and are subject to change without notice. Therefore, the data contained herein should not be used for specification purposes.

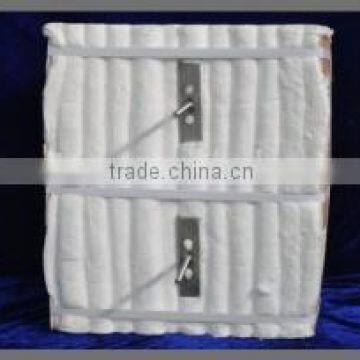

Product pictures

Office in Nanjing

Factories in China

Construction projects
