wheel weight clip pressing machine

FOB Price

US$ 4,000 - 14,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China		Brand Name	XST
Model Number	J23-25		After-sales Service Provided	Engineers available to service machinery overseas

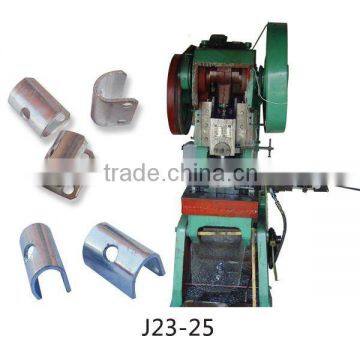

wheel weight clip pressing machine
nominal capacity:40ton
usage:pressing wheel weight clips
delivery: 30days
ISO9001

For a complete wheel weight production line, we offer clip machine to make steel clips for weights.

Important features of Machine for making clip J23-40:

Completed with:

Machine working video:

http://youtu.be/z7FxawgapNw

Parameters :

Model Specifications	Unit	J23-25	J23-40
Nominal capacity	KN	250	400
Nominal pressure stroke	MM	4	7
Stroke of slide	MM	65	90
Strokes per minute	SPM	55	45
Max. die height	MM	220	255
Die height adjustment	MM	55	65
Distance between slide center and frame	MM	190	235
Bench size	MM	370x570	460x700
Hole dimensions in bed	MM	200x290 ø260	250x360 ø320
Bottom size of slide	MM	220x250	260x300
Size of the handle hole	MM	40x60	50x70
Distance between columns	MM	270	340
Thickness of bolster	MM	50	65
Max. angle of inclination	DEG	30	30
Main motor model		Y100L-4	Y132S-4
Main motor power	KW	2.2	5.5
Overall dimension	MM	1345x950	1721x1335
Height above floor	MM	2130	2490
Weight	KG	1900	3700

products show:

We are approval with ISO9001:2000 certification with strictly quality system.

We are professional wheel weight manufacturer, suppling various wheel balance weight:
