PV2R Hydraulic Pressure Test Kit/Hydraulic Cartridge Kits/Hydraulic Vane Pump Cartridge Kit

PV2R series of pumps are designed for low noise and high performance of the vane pump. The unique facilities, high precision

machining and material selection, to ensure the high reliability, adaptability of the advantages, the most suitable for modern

hydraulic system needs. In such as injection molding machine, pressure die casting machine, metal cutting machine tools,

engineering machinery and other types of hydraulic systems are widely used.

Its main features:

1 rational design, precision machining of arc blade, reduce the blade on the stator curve of compressive stress, improved the stator

and the service life of the vane.

2 the stator adopts the advanced high side without, in shock transition curve, so that the blade has a good motion and stress state,

to ensure good contact between vane and stator, and the use of loss of flow, pressure and flow pulsation is minimum, the noise is

 lower, longer life.

3 side plate using hydraulic balance, can obtain better volumetric efficiency.

4 key parts selection of quality materials and advanced heat treatment process, to further improve the overall reliability of pump.

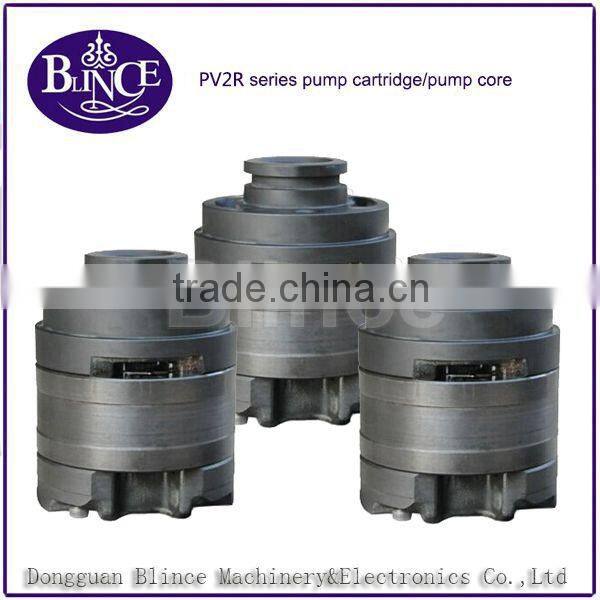

5 using the insertion type structure, main visceral parts made form components, a pump core replacement can be done in a few

minutes, good interchangeability, convenient repair

The informations of PV2R series hydraulic vane pumps are following:

*PV2R series high pressure vane pumps with lower noise are the new developed products with the integration of the advantages of similar products at home and aboard in recent years, with the features of rational structure, high performance, high efficiency, lower noise, small pulsation, strong reliability , etc.

The pumps provide extreme convenience for users and meet the substitution requirements for similar products with full specifications, national and international standard mounting dimensions, as well as derivative series mounting dimensions, making the pumps widely applied in the fields of machine tool industry, plastic machinery , forging machinery, engineering machinery, transportation machinery , etc.

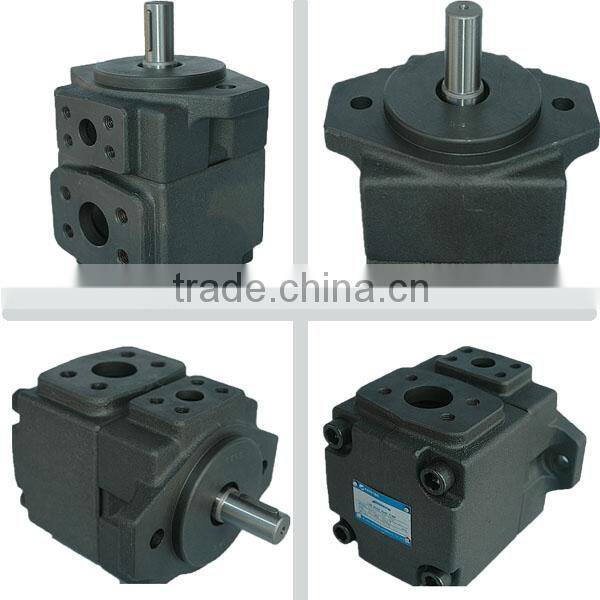

Single Pumps:

Technical Parameters of PV2R Series high pressure vane pumps as your reference:

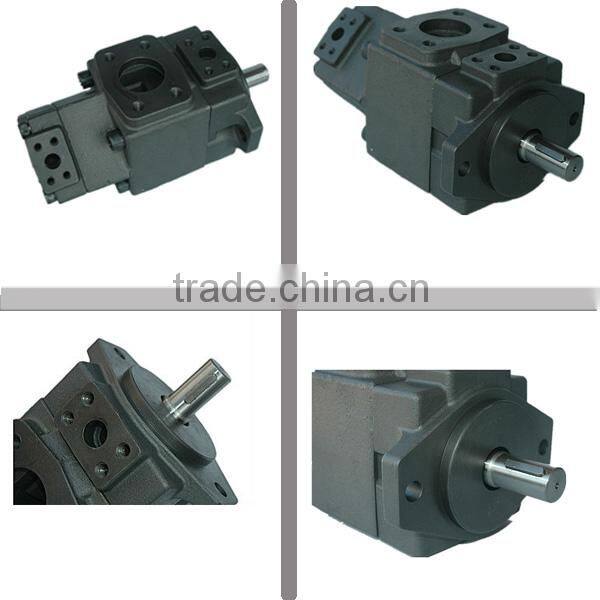

The double vane pumps which were driving by one shaft and were assembled in parallel in one pump casing with one common inlet port and two outlet ports that connecting to two individual oil circuits. A variety of flows can be obtained by different combination of the two pumps. The power of double vane pumps is the power sum of two single vane pumps.

***Technical Parameters of PV2R 13 high pressure double vane pumps with lower noise as your reference:

*Notes

1. The highest rotation speed shall be limited within 1200r/min, while adopting water-based synthetic hydraulic fluids.

2. It is recommended to work with rotation speed of 1000r/min and maximum pressure of 12-14Mpa on the occasion

where lower noise is strictly required.
