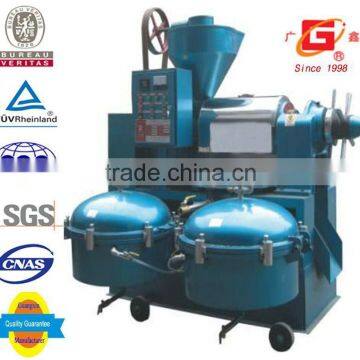

High oil yield automatic cold sesame oil press

Characteristics of YZLXQ10

1. Healthy!Physical squeezing craft maximally keeps the nutrients such as the protein, fatty acids and minerals, etc.

2. High working efficiency! The spiral squeezing structure can achieve high oil output, thus the oil content of the residue cake is low.

3. Long durability! All the parts are made of the most suitable material and treated with refined crafts to ensure the long term runing, such as cemented quenching and tempering to increase the hardness, consequently the durability.

4. Cost-effective! The wearing parts on the machine such as the squeeze loop, squeeze spiral and squeeze bar are designed to be dismountable. When they are out of service period, users only need to replace them and no need to displace the whole machine.

The series YZLXQ10 automatic temperature control precision filtration combined oil presses are new products developed on the basis of single machine to meet the market demands. It has function of auto controlling the temperature of the press chamber, replaced the traditional way by squeezing residue cake, which could shorten the preparation work, reduce the energy consumption and machine’s abrasion. When the squeezing is suspended, the temperature can be maintained by this system. In the meanwhile, this machine was added with filtration function. The crude oil flowing out from the press cage will directly be filtrated by the air pressure filtration machine. The air pressure filtration machine is new filtration equipment. It makes use of the compressed air as filtration force. The ability is strong. It overcome the shortage of the small filtration force of the vacuum filtration machine, can achieve precise result. The structure of this oil press is compact, only requires a small working place and saves labor investment. It is ideal equipment for medium or small oil refinery and enterprise to processing edible oil.

Above models do not have cake cracking device. The models with that will have S at the end of the model number.

*Warranty period: 1 year for main parts.

*We offer spare parts all the year round.

*We offer best products solution from professional engineers with more than 30 years experience.

*24 hours online customer service, welcome contact with us freely.

FAQ

1. Delivery time.

---20~30 days after order confirmation. We need time to prepare machine according to exporting standard, wear-in, making wooden box, fumigation and suitable ship arrangement from forwarder.

2. If I don't know how to operate this machine? how can I do?

----Our machine has been tested OK and fully assembled before shipping, customer just needs to make2~4 hours wear-in and then can work.

3. What's wear-in for new machine?

---- use 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.

1st hour, adjust oil cake thickness as 3mm.

2nd hour, adjust oil cake thickness as 2.5mm.

3rd hour, adjust oil cake thickness as mm.

4. What are cold press and hot press?

----Cold press is pressing dry and raw seeds. Usually need to press 2 times to get maximum oil.

----Hot press is pressing roasted seeds. Usually only press 1 time to get maximum oil. peanuts roast to 125~130 degree with 1~2% moisture. (We produce seeds roaster heated by economical fuel.)
