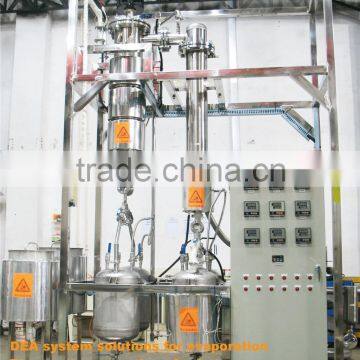

Wiped Film Evaporator for Caustic Soda (WFE) DEA-BML-50

If you want ger more details ,email us.

Our website:

——Design

Thin film evaporators are horizontal evaporator with wiper basket, gear motors and external condenser.
The vapour nozzle is typically arranged at the upper end of the evaporator in order to facilitate the transfer of the vapours to the external condenser.
Dea offers thin film evaporators from 0.058 to 3 m2 .

——Operation

Feed liquid is admitted into still under high vacuum, immediately spread into a very thin film and forced quickly down the evaporation surface. Heated walls and high vacuum drive the more volatile components (distillate) to the external condenser as the less volatile components (residue) continue down the cylinder. The resulting fractions, thus separated, exit through individual discharge outlets. Depending on application, the desired product is either the distillate or the residue fraction. Small amounts of condensable low MW compounds collect in cold trap upstream of vacuum system. For high solvent loads, an optional external condenser may be installed immediately downstream of the still.

——Particular features

Continuous distillation process.
Low operating pressures (100~10000Pa ,100Pa=1mbar).
Short residence time.
High evaporation rates.
Processing of high-boiling, high-viscosity or crystallizing products is possible.
Can be used as a reboiler for column.
Low fouling on evaporator wall.

——Fields of application

For separation of large quantities of components with high volatility.
For residue removal or decolorization.
For products with high-viscosity and easy to crytallizate.
For heat sensitive material

Shanghai Dea chemical equipment Co.,Ltd

——We devote to design and develop the equipment of chemical separation and abstraction.

——We came from East China University of Science and Technology, which we long-term cooperated with later. And now, we serve for many famous universities, such as Tsinghua University , Sun Yat-sen University , etc.

——We provide equipment of distillation and extraction for the technicians in the area of chemical , medicine and food industry.

——We own senior engineers who have rich experience in chemical engineering.

——Our products can be used in lab-scale, pilot-scale experiments and small-scale production.

——The experimental results are more authentic by using our products thanks to the continuous operation during the course of the experiments or pilot-scale experiments.

——We repaire imputed equipments out-of-warranty for UIC,POPE,BUCHI in the past few years, which made us accumulating rich experience.

/indexEN.htm

We don't provide field installation services overseas now.

Our equipment has been assembled and tested prior to shipping finished, so it is a whole package, which can be used directly after unpacked. Please measure the size of the door in order to handle the equipment to the right position. For self-assembly, please inform in advance.
