Mobile Scissor Lift
- qingdao
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Honty | |
| Model Number | HTCY0.3-18 | Lift Mechanism | Scissor Lift | |
| Lift Drive / Actuation | Electric Motor | Power | 2.2kw | |
| Rated Loading Capacity | 300kg | Min. Lifting Height | 2.08m | |
| Max. Lifting Height | 18m | Table Size | 3070*1600mm | |
| Overall Dimensions | 3250*1800*2080mm | Weight | 3600kg | |
| Certification | CE ISO | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
mobile scissor lift
1.Mobile Scissor lift driving force
· When the AC electricity is available, usually for Indoor use
· No noise and air pollution
· Voltage: 110V, 220V, 380V,
B.Battery Powered / DC powered
· When the AC electricity is not available, usually for Outdoor use
· No noise and air pollution
C. Diesel Powered
· When the electricity is not available, usually for Outdoor use
· Longer use time

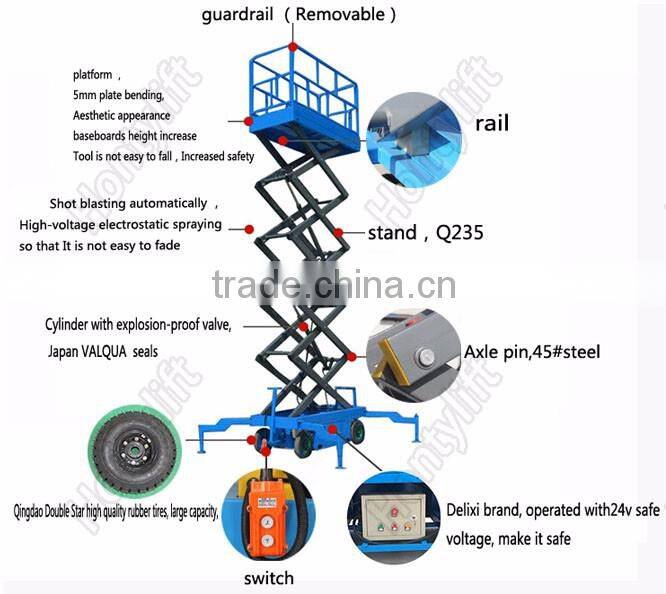

2.mobile scissor lift safety protection
mobile scissor lift has various protection measures as follows
- Explosion-proof valves :protect hydraulic pipe ,anti-hydraulic pipe rupture
- Spillover valve :it can prevent high pressure when the machine moves up ,adjust the pressure
- Emergency decline valve :it can go down when you meet an emergency
- Phase lack &phase dislocation protection
video link of mobile scissor lift : /watch?v=x5yKcAaHvW4
Features + Benefits
- Platform controls are equipped with on-board diagnostics
- Auxiliary platform lowering system enables platform descent, even in the event of a power failure
- Zero inside turning radius
- Non-marking tires won't mar the floor surface
- 2.1m. x 0.8m. base provides sturdy performance
| Type | Platform (mm) | Dimension(mm) | Guardrail (mm) | Lifted height (mm) | Load (kg) | Weight (kg) | Power |
| HTCY0.3-4 | 2100*800 | 2200*900*1100 | 1050 | 4 | 300 | 400 | 220v/2.2kw |
| HTCY1.0-4 | 2100*1100 | 2200*1400*1300 | 1050 | 4 | 1000 | 680 | 380v/2.2kw |
| HTCY2.0-4 | 2100*1500 | 2200*1800*1400 | 1050 | 4 | 2000 | 800 | 380v/2.2kw |
| HTCY0.3-6 | 2100*800 | 2200*900*1290 | 1050 | 6 | 300 | 650 | 220v/2.2kw |
| HTCY1.0-6 | 2100*1200 | 2200*1500*1450 | 1050 | 6 | 10000 | 1000 | 380v/3kw |
| HTCY2.0-6 | 2100*1500 | 2200*1800*1600 | 1050 | 6 | 2000 | 1600 | 380v/3kw |
| HTCY0.3-8 | 2100*900 | 2200*1100*1390 | 1050 | 8 | 300 | 720 | 220v/2.2kw |
| HTCY0.5-8 | 2100*1200 | 2200*1500*1450 | 1050 | 8 | 500 | 1500 | 380v/2.2kw |
| HTCY1.0-8 | 2100*1200 | 2200*1500*1530 | 1050 | 8 | 1000 | 1700 | 380v/2.2kw |
| HTCY2.0-8 | 2100*1500 | 2200*1950*1800 | 1050 | 8 | 2000 | 2800 | 380v/3kw |
| over 8 meters | |||||||
| HTCY0.3-10 | 2100*1200 | 2200*1500*1530 | 1050 | 10 | 300 | 1500 | 380v/2.2kw |
| HTCY1.0-10 | 2200*1500 | 2300*1950*1950 | 1050 | 10 | 1000 | 2500 | 380v/3.0kw |
| HTCY2.0-10 | 2600*1500 | 2750*1950*1950 | 1050 | 10 | 2000 | 3000 | 380v/3.0kw |
| HTCY0.3-12 | 2530*1500 | 2750*1950*1740 | 1050 | 12 | 300 | 2580 | 380v/2.2kw |
| HTCY1.0-12 | 2700*1600 | 2900*1950*1950 | 1050 | 12 | 1000 | 3200 | 380v/3.0kw |
| HTCY2.0-12 | 2700*1600 | 2900*1950*1950 | 1050 | 12 | 2000 | 3500 | 380v/4.0kw |
| HTCY0.3-14 | 2750*1500 | 2900*1950*1970 | 1050 | 14 | 300 | 3000 | 380v/3.0kw |
| HTCY1.0-14 | 3100*1600 | 3300*1950*2200 | 1050 | 14 | 1000 | 3000 | 380v/4.0kw |
| HTCY0.3-16 | 3200*1600 | 3400*1980*2030 | 1050 | 16 | 300 | 3600 | 380v/3.0kw |
| HTCY0.3-18 | 3500*1800 | 3800*2000*2200 | 1050 | 18 | 300 | 4700 | 380v/4.0kw |

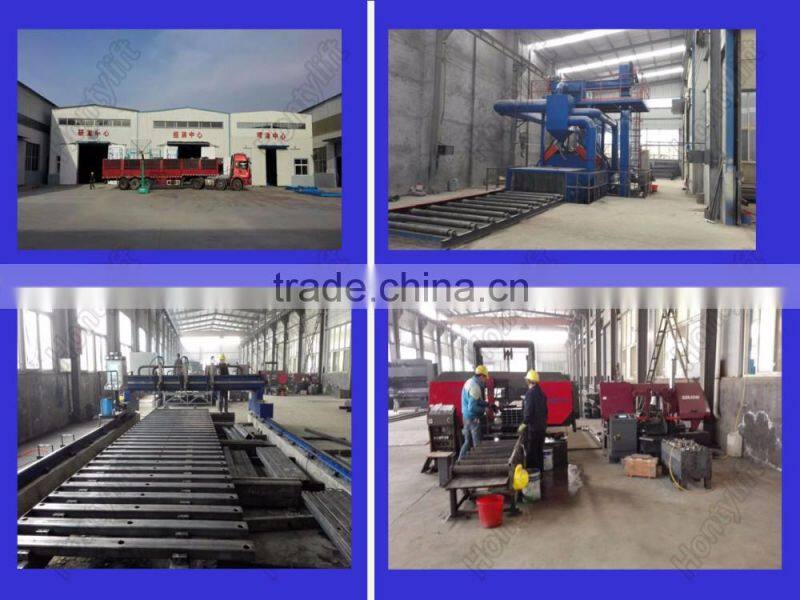

Factory name | jinan hontylift machinary co.,ltd |
Factory address | No .8 Huixin Road Jiyang county Jinan North Development Zone Shandong China |
Business character | Integration of industry & trade |
workshops | 6 |
employees | 86~115 |
factory area | 199800m³ |
Manufacturing experience | 7 years since 2009 |
Exporting experience | 5 years since 2011. |
websites | / http://honty.en.china.cn/ / |
Service | 06:00am ~23:00pm pre-sale service , 06:00am ~23:00pm after-sale service |
Price advantage | Factory directly sell |
Visit factory | Anytime clients will be welcomed if visit factory, we can pick clients at airport or train station |
FAQ
1. Factory or trading company?
We are factory : jinan hontylift machinary co.,ltd
2. Payment terms ?
30%TT before production, 70%TT before shipment
3. Where have you been exported?
Saudi Arabia, Egypt , Colombia, ,Malaysia, Taiwan, Turkey, Senegal , Russia,Thailand, ect
4. Warranty &after-sales service?
Since you got the goods , one year free from man made faults; the installation , maintenance , and operation guide books and video will be provided. On-line service will be provided.
5. Pre-sales service 06:00am~23:00pm After-sales service 06:00am~23:00pm on whatsapp 008618763961675
Skype
contact us
Company : jinan hontylift manchinary co.,ltd
Address : No .8 Huixin Road Jiyang county Jinan North Development Zone Shandong China
Website :
Contact :Tiny
E-mail : tiny-sale#(change # into @)
whatsapp :008618763961675
Mobile phone:008618763961675
Wechat : tiny19931205
qq:2860351785
skype:
Feel free to contact me if you have any question , I will reply ASAP
