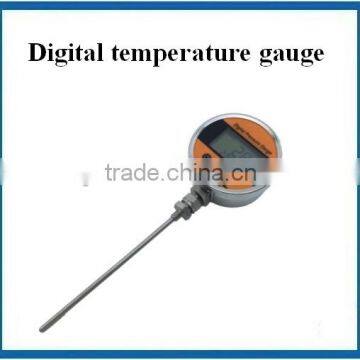

All Stainless Steel Digital Temperature Meter With Lcd Display

 All stainless steel digital temperature meter with lcd display QWTB118

1.Description

QWTB118 Back stainless steel digital tempearture gague is electronic-structure and battery-powered, which make it very easy for on-site installation. Specifically, a high-precision piezo-resistive temperature sensor PT100 is used and the output signal is processed by the high-precision, low temperature drifting amplifier,

then sent into the high-precision A/D converter to be converted into digital signal, after being computed and processed,

 the actual pressure value is showed on the LCD screen.

It has some benefits: flexible use, simple operation,safe and reliable etc. It is being widely used to measure and display the pressure of the fluid medium in hydro-power, water, petroleum, chemical, mechanical, hydraulic etc industries.

2.Features

Large-screen LCD display, back light,high resolution,easy to read

Automatically record the maximum pressure value during the measurement

Temperature on the percentage of dynamic display(the progress bar display)

5 engineering units: ℃,℉,K,Ra,Re

01 ~ 15minutes auto-shut off feature. 00 ~ 15minutes back light funciton

Micro-power consumption, over 2years in power-saving mode, 2,000 hours continuous operation.

Parameter correction, correct zero and error in field application.

Pressure range already set before use

Sampling rate: 4 times/sec

Applicable to gases and liquids compatible with stainless steel

3.Specifications

4.Installation

QWTB118 can be directly mounted in the hydraulic pipe by the mounting thread(for example G1/2”).In critical applications (such as severe vibration or shock), soft hose

is strongly recommended to connect the digital pressure gauge to reduce the effect caused

by the sever vibrations and shocks.

5.Size
