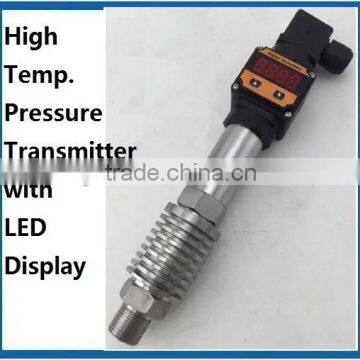

Good price Hight temperature pressure transmitter with LED display and output 4-20mA
- TIANJING SHANGHAI SEAPOROT OR XI'AN AIRPORT
- Credit Card
You May Like
-
Explosion proof high temperatrure Pressure Transmitter with output 4-20mA
-
made in China 2~100Mpa~500Mpa high pressure transmitter with output 4-20mA
-
2" 2.5"clamp pressure transmitter with flush diaphragm for food industry
-
sanitary standard proof water pressure transmitter with flush diaphragm for food industry
-
sanitary standard high temperature pressure transmitter with flush diaphragm for food industry
-
12-32VDC differential pressure transmitter with output 4-20mA
Product Details
| Place of Origin | Shaanxi, China | Brand Name | QINWEI OR OEM | |
| Model Number | QWB100D |
Product Description
Good price Hight temperature pressure transmitter with LED display and output 4-20mA
Pressure Transmitter QWB100D adopts piezoresistive flat membrane silicon oil-filled sensing element as the signal measuring element, with stainless steel diaphragm which can be compatible with gas or dilute liquid With a flush diaphragm process connection, so it is mainly applied to general applications such as food,pharmaceutical and chemical liquid pressure measurement.
Feature:
Applications:
process control system medical biological products food hygiene
Specifications:
Pressure range | ||||||
Pressure range | 35kPa, 70kPa, 100kPa,250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa....100Mpa | |||||
Overpressure | Range | Positive Overpressure | Negative Overpressure | |||
35kpa | 70kpa | 35kpa | ||||
70kpa | 150kpa | 70kpa | ||||
100kpa | 200kpa | 100kpa | ||||
250kpa | 500kpa | 250kpa | ||||
400kpa | 800kpa | 400kpa | ||||
600kpa | 1200kpa | 600kpa | ||||
1Mpa | 2Mpa | 1Mpa | ||||
1.6Mpa | 3.2Mpa | 1Mpa | ||||
2.5Mpa | 5Mpa | 1Mpa | ||||
Output signal | ||||||
Zero output | ±2mV | |||||
Span output | 100mV(typical) | |||||
Specification | ||||||
Accuracy(linearity, repeatability and hysteresis) | ±0.25%F.S. (Typical) | |||||
Excitation | 1.5mA (Typical) 5VDC 10VDC | |||||
Compensated temp. | 0--60°C(typical) | |||||
Operating temp. | -40-150°C | |||||
Storage temp. | -40-125°C | |||||
Insulation resistance | >100Mohm/250VDC | |||||
Zero temp. coefficient | 0.02%F.S.(≥100kPa) 0.03%F.S.(<100kPa) | |||||
Span temp. coefficient | 0.02%F.S.(≥100kPa) 0.03%F.S.(<100kPa) | |||||
Bridge resistance | Min. | Max. | Unit | |||
2600 | 5500 | ohm | ||||
Long term stability | ≤0.3%F.S./year | |||||
Static pressure | 10Mpa(Max.) | |||||
Vibration | 20g (20--5000HZ) | |||||
Oil filling | Silicon oil (Typical) Olive oil available for sanitary application | |||||
O-ring | NBR, Viton | |||||
Housing and diaphragm | Stainless steel 316L | |||||
Wire | 39×φ0.015, Silicon shielded, 200°C bearing 2 wire (typical) 3 wire (available) | |||||
Weight | 250g(approx) | |||||
Sensor diamter 19mm
