Home > Products > Pressure gauges > 3V battery supply 0-750Psi digital air pressure gauge for tyre with LCD display

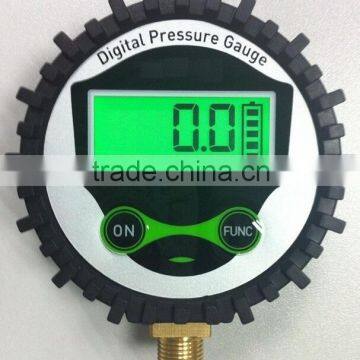

3V battery supply 0-750Psi digital air pressure gauge for tyre with LCD display

FOB Price

US$ 5 - 50 / Piece

10 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shaanxi, China		Brand Name	QINWEI OR OEM
Model Number	QWB140

3V battery supply 0-750Psi digital air pressure gauge for tyre with LCD display

Technical Description :
Accuracy	± 1.0% F.S. ± 1 digit @ 25℃
Pressure Units	PSI , BAR , KPA, Kgf/CM^2
Temp. Comp.	From 0 to 45℃
Thermal Error	± 1.0% F.S. ± 1 digit
Voltage Comp.	2.5 Volt
Measure Media	Normal non-corrosive Air
Display Type	4 Digits TN-LCD With Green Back-Light
Display Size	37MM * 17.5MM
Battery Type	1.5Volt * 2 (AAA)
Battery Life	1 Year (Working 1 Hours / Day ) , Continue working can over 240 Hours (in Back-Light)
Current Consumption	5.0 mA Max (Working in Back-Light)
Working Temperature	From 0 to 45 ℃
Storage Temperature	From -10 to 80 ℃
Product Size	Diameter 73mm * 35mm (Include rubber boot)
Thread Type	Selectable 1/4NPT , 1/4PT, 1/4G, 1/4BSP, 1/8NPT, 1/8PT, 1/8BSP, M11, M12, M10, M8
Product Weight	120 g (Include Rubber Boot, Hardware Thread)
Auto Power On	when air pressure over 3Psi
Auto Power Off	when no pressure
