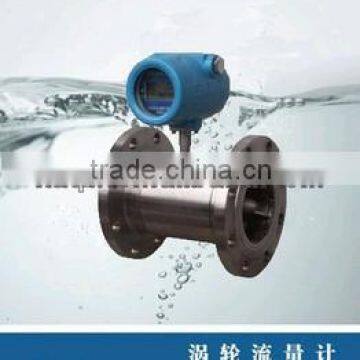

explosion proof turbine flowmeter

FOB Price

US$ 50 - 500 / Piece

10 Pieces(Min. Order)

Port Shanghai /Tianjin
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shaanxi, China		Brand Name	Qinwei
Model Number	HL-LWS

Product Description

Specifications

1corrosion and rust steel for the health sector;
2easy installation and maintenance;
3high accuracy, good repeatability

explosion proof turbine flowmeter

turbine flowmeter is widely used in pharmaceutical, food, beverage and other industries, as measured ingredients, control, finished filling and other uses of flow measurement instruments. The instrument case is made of stainless steel (316L) made part of the movement to use special materials, with good anti-corrosion, anti-rust capability. Entire table structure break through the traditional process, using advanced structural optimization design, greatly improving the accuracy and repeatability of the instrument. Turbine flowmeter designed for the pharmaceutical, beverage industry, the use of fast-loading connection structure for easy cleaning. HL-LWS Series Hygienic turbine flowmeter has reached the international standard of similar products, the health industry is an ideal instrument.

Nominal Diameter		Standard Flow Range (SFR)	Extended Flow Range (EFR)	Standard Pressure Rating
(mm)	(in.)	(m³/h)	(m³/h)	(MPa)
4	0.15	0.04 to 0.25	0.04 to 0.4	1.0 Mpa
6	0.25	0.1 to 0.6	0.06 to 0.6	1.0 Mpa
10	0.4	0.2 to 1.2	0.15 to 1.5	1.0 Mpa
15	0.5	0.6 to 6	0.4 to 8	1.0 Mpa
20	0.75	0.8 to 8	0.45 to 9	1.0 Mpa
25	1	1 to 10	0.5 to 10	1.0 Mpa
32	1.25	1.5 to 15	0.8 to 15	1.0 Mpa
40	1.5	2 to 20	1 to 30	1.0 Mpa
50	2	4 to 40	2 to 40	1.0 Mpa

Table1

Model Selection

Model Selection Guidance

								Description (SFR: Standard Flow Range)
LWS-		/	/	/	/	/	/	Description (SFR: Standard Flow Range)
Nominal Diameter (mm)	4							4mm; SFR: 0.04 to 0.25 m³/h
	6							6mm; SFR: 0.1 to 0.6 m³/h
	10							10mm; SFR: 0.2 to 1.2 m³/h
	15							15mm; SFR: 0.6 to 6 m³/h
	20							20mm; SFR: 0.8 to 8 m³/h
	25							25mm; SFR: 1 to 10 m³/h
	32							32mm; SFR: 1.5 to 15 m³/h
	40							40mm; SFR: 2 to 20 m³/h
	50							50mm; SFR:4 to 40 m³/h
Type		N						Basic Type: +12V to +24V DC Power Supply; Pulse Output
		A						4 to 20 mA current output
		B						Battery Power Supply with filed Display
		C						Field Display and 4 to 20 mA current output
		C1						Field Display and RS485
		C2						Field Display and HART
Accuracy Rating			10					±1.0% of reading
Accuracy Rating			05					±0.5% of reading
Measurable Range				S				Standard: Refer to table 1
Measurable Range				E				Extended: Refer to table 1
Housing Material					S			304 Stainless Steel
Housing Material					L			316 (L) Stainless Steel
Explosion Rating								Blank: without Explosion Proof
Explosion Rating						E		Explosion Proof: ExdIIBT6

Table 2

the application places
· Pharmaceutical industry: saline, dextrose infusion products such as water filling and measurement;
· Food and beverage industry: vegetable juice, fruit juice, beer, refined oil, liquid food filling and metering
