Optical Fiber Switch

Specifications

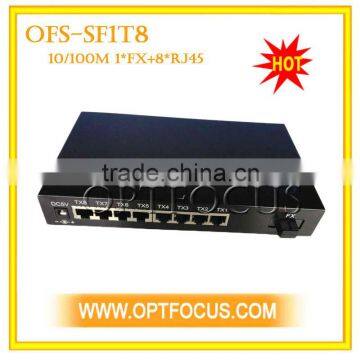

OFS-SF1T8 Series

8 ports Gigabit Ethernet Optical Fiber Switch

OFS-SF1T7 Series provides one 100M optical fiber ports and two 10/100M UTP ports. The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC from USA and high quality of transceivers. it is applicable to use in small patterns of Optical Fiber Ethernet.

Main features

With one fiber and four UTP ports, OFS-SF1T7 can convert Optical-Electric Ethernet signals between 10/100MUTP interface (TX) and 100M optical fiber interface (FX).

Auto negotiation function allows UTP port to auto select 10M or 100M, and Full Duplex or Half Duplex.

Support Flow control and Broadcast storm protection

Supporting the max 1536 bytes frame

Internal Circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.

Technical Specifications

Operating standards:  IEEE802.3u 100Base-TX and 100Base-FX

Connector:

UTP: RJ-45,10/100Mbps;

Fiber: SC/FC,100Mbps (Full Duplex)

Cable

UTP cable: Cat. 5 (the max distance up to 100m)

Fiber (multimode):  50/125, 62.5/125μm(the max distance up to 2km)

Fiber (singlemode):  8/125, 8.7/125, 9/125, 10/125μm (the max distance up to 100km)

Flow control

Full Duplex: IEEE802.3x flow control

Half Duplex: bake pressure flow control

LED Light: PWR, FX Link/Act, TP1 FDX,TP1 Link/Act, TP2 FDX, TP2 Link/Act

Power supply: AC100 ~ 240V,  DC5V 1A;

Environment temperature:0 ~ +50C

Storage temperature:::-20 ~ +70C

Humidity::5% ~ 90%

Dimensions:83×160×25mm
