for 1*32/2*32 mini module type PLC splitter Dome Mechanical Seal Splitter Splice Closure

Specifications

                      Dome Mechanical Seal Splitter Splice Closure

OFS-FTH-JM5

1.1  Brief introduction

OFS-FTH-JM5 type of Fiber Optic Splice Closure (FOSC) is a member of dome series. The function of the product is in the optical transmission link, to provide various types of fiber optic cable through, branching, and related connecting protection, IP safety rate is IP68. It can be installed 1x2: 32 PLC splitter or 2x2: 16 PLC splitter. This model has four small round ports and one large round port. The sealing component is made from vulcanized rubber. The sealing method adopts screw pressure. This model is suitable for different methods of branch connection, including branching of uncut cables. It could be used for aerial, pole-mounting, wall-mounting and underground application. This model is excellent in sealing performance, easy for installation, wide application and is prior choice of fiber connection equipment.

1.2 Product theory chart


Internal theory chart of Outdoor optical splitter modules

  Product pictures

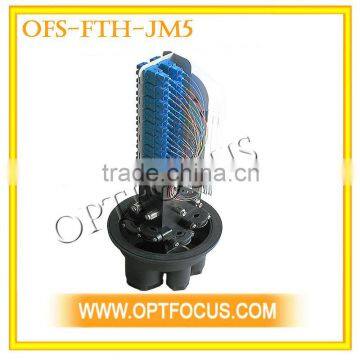

1.      Cover; 2. Fiber splice tray; 3. Sealing ring; 4. Plastic hoop; 5. Base; 6. Earthling device

1.4 Main components

 Note:

When customers choose to install splitter by themselves, please refer to the below contents to configure the pigtail length of splitter input port and output port.

The installation arrangement of pigtail for splitter input port

and output port
