48 core ODF/Distribution Frame/Patch Panel

Specifications

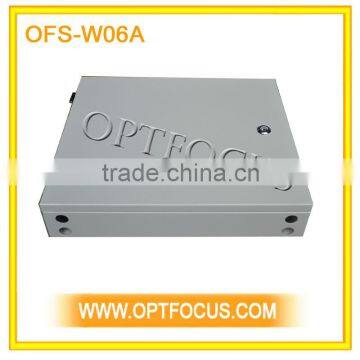

Oudoor Wall-mount Fiber Optic Distribution Frame

Description

Fiber optic distribution frame provides efficient cable connections between outside plant cables and equipment inside the buildings and communications facilities.

Box integrates fiber splicing, storage and cable connections together in a unit. They can manage both bundle type and ribbon type fiber cables. It is with large working space to integrate the pigtail, cables and adapters for fiber management.

This fiber optic distribution frame is designed for outdoor wall mounted using, cold roll steel material, with adapter plate & splice tray at one side for fiber splicing, distribution and management.

Features:

Cold-roll steel, electrostatic painting

ABS plastic tray inside, 12cores per tray

Splice trays in one side or both sides available

Different adapter plate available: FC, SC, LC, ST…

Cable entry ports suitable for single fiber, bundle & ribbon fiber cables

Reasonable design ensures the cables are in good order

Wall mouted type, outdoor using, IP65; pole mounted & bottom base available

With lock on front door

12, 24, 48, 96 … capacity customised

Application:

Mainly used for cable inlet and fixing; fiber splicing and protecting; pigtail storage; patch cord storage, connection and use management between wiring closets and equipments.

Applicable to Telecommunications,

Fiber to the home (FTTH),

LAN / WAN, CATV ect. System projects.

4. Parameters:

Operating temperature: :-30~+60°C

Relative humidity: ≤85%(+30°C)

Atmospheric pressure:70~-106Kpa

Durability: >1000 times

Standard working wavelength: 850nm, 1310nm, 1550nm

4.Order Guide
