Home > Products > Fiber Media Converter > gigabit SC Singlemode Single optical media Converter

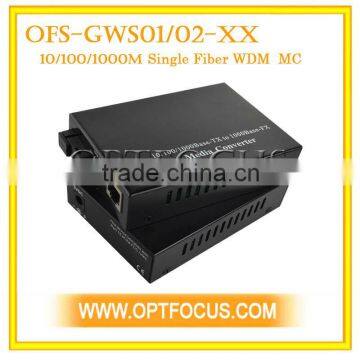

gigabit SC Singlemode Single optical media Converter

FOB Price

Negotiable / Piece

5 Pieces(Min.Order)

Supply Ability 50000 Piece / Pieces per Month
Port shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	OPTFOCUS
Model Number	OFS-GW

Product Description

Specifications

1.10/100/1000Base-Tx to 1000Base-FX single fiber sm 20-80Km SC
2.Connector: UTP: RJ-45,10/100/1000Mbps Fiber: SC,1000Mbps

10/100/1000M gigabit optical media converter

1000Base-T and 1000Base-SX/LX. fiber optic converter

SC/ST/FC 0-100km media converter

Technical Specifications

Operating standards: IEEE802.3z/AB, 1000Base-T and 1000Base-SX/LX
MAC address table: 4K
Data Buffer: 256K
Connector: UTP: RJ-45,10/100/1000Mbps Fiber: SC,1000Mbps.
Cable :
UTP: Cat.5e or Cat.6 (the max distance up to 100m)
Fiber (singlemode): 8.3/125, 8.7/125, 9/125, 10/125µm (the max distance up to 90km)
Flow control:
Full Duplex IEEE802.3x
Half Duplex back pressure
Power: AC. 220V(170-260V),50Hz; DC. 5V,2A
Ambient temperature0 +50
Storage temperature-20 +70
Humidity5% 90%
Dimensions40 (high) x 110(width) x 140 (length) mm

Fiber Optic Information

Type	connector	Max distance	Wavelength	TX power	Sensitivity	Link Budget
OFS-GW01/02-20	SC	20km	1310/1550nm	-11-5dBm	-23dBm	12dBm
OFS-GW01/02-40	SC	40km	1310/1550nm	-5/-80dBm	-26dBm	21/18dBm
OFS-GW01/02-60	SC	60km	1310/1550nm	0/-52dBm	-26dBm	26/21dBm
OFS-GW01/02-80	SC	80km	1490/1550nm	-23dBm	-26dBm	24dBm

Order Information

Model	Product description
GT-GWS01/02 -xx	10/100/1000M singlemode single fiber converters must be used and ordered in couples. One set of WS01 must be connected with another set of WS02 for using. WS01 transmitted optical wavelength 1310nm, receive optical wavelength 1550nm; WS02 transmitted optical wavelength 1550nm, receive optical wavelength 1310nm. The max distance of fiber is up to 20, 40, 60 or 80km. XX is the amount of distance.

Payment & Shipping Terms

Minimum Order Quantity: 1~2piece/pieces

Port: Shenzhen

Packaging Details:20pcs/carton 48.5*32.5*34 cm/carton, 10KGS/carton

Delivery Time:3~5 days

Payment Terms:T/T ,L/C,Western Union

Supply ability:2000~3000Piece/Pieces per Week

Warranty:1 years
