Product Details
| Place of Origin | Shandong, China | Brand Name | Honty | |
| Model Number | HTZZ-24z | Lift Mechanism | Articulated Lift | |
| Lift Drive / Actuation | Electric Motor | Power | 45KW/2200rpm | |
| Rated Loading Capacity | 230kg | Min. Lifting Height | 1.1m | |
| Max. Lifting Height | 24m | Table Size | 1.83*0.76m | |
| Overall Dimensions | 13.04*2.49*3.17m | Weight | 10550kg | |
| Certification | CE ISO,CE ISO9001 | Warranty | 1 year without man-made fault | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
hot sale mobile boom lift/articulated boom lift/electric boom lifts
What Is The Articulaing Boom Lift ?
---Where there is aerial work ,there is boom lift.
Honty self propelled boom lifts have platform heights ranging from 10 m to over 18 m. All Honty self propelled boom lifts compact and maneuverable and can be driven from the platform in any boom position saving time and improving efficiency. With 'Narrow' and 4WD chassis options available* they are ideal for industrial or construction environments. Easy to use proportional controls make Honty self propelled boom lifts simple to operate and features such as telescopic booms, jib-booms and platform rotation maximize their effectiveness on any task.
Power options available on Honty self propelled boom lifts include battery, gas, diesel, Bi Energy and now Hybrid (e.g. battery & diesel), combining the benefits of two power sources on the same machine.*
* Not available on all models, check specification sheets for details of exact features.
How About Your Articulating Boom Lift?
Platform height : 12.05m
Working outreach & Working radius : 13.75m & 6.15m
Telescopic Upper Boom greater accuracy when positioning platform
Weight Only 6500kg---Low cost transportation
Fully Proportional Hydraulic Controls Simple, reliable & easy to maintain
4ft 11in Chassis
Available Improved narrow aisle access
Bi-Energy Available
Optimizing Utilization
OVERALL WORKING RADIUS
Optional type
1. Large lift capacity
---The boom is made of high stregth steel .

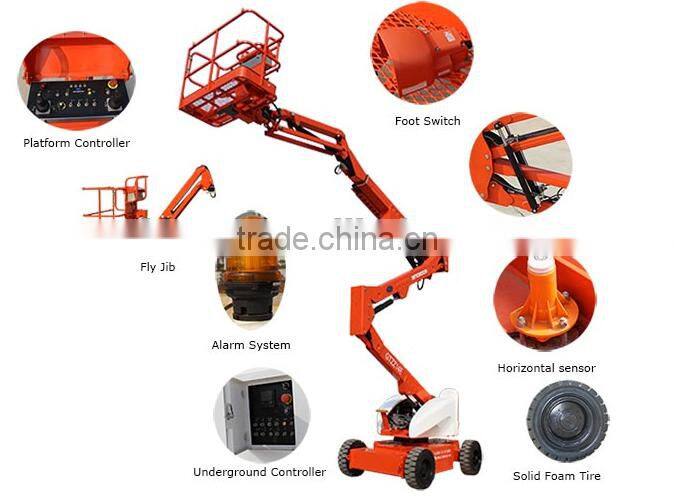

2. Complete safety devices
--- Standard configuration include four-link weighing devices, overload protection, automated detection device for detecting platform amplitude and height (automatic amplitude limiter), automatic control of the movement speed of the boom and traveling speed, and high-precision load sensor, to ensure the safety and stability of operation in all directions.

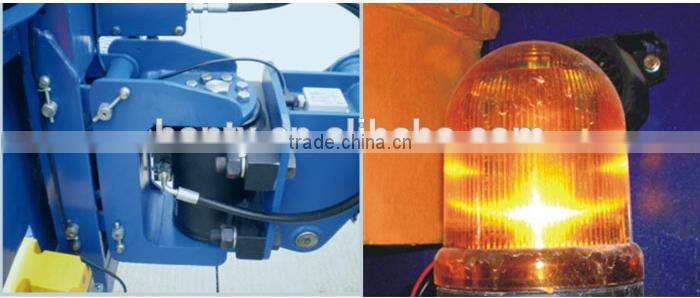

3.Rotary platform

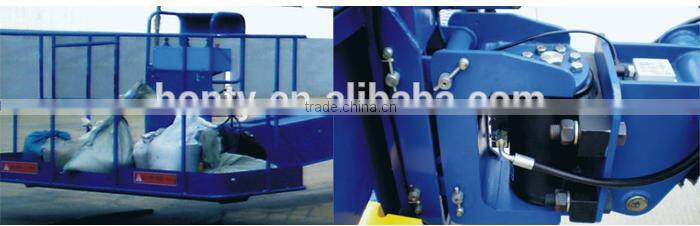

---The rotary actuator with standard configuration can make the rotation range of the platform reach ±80°,which makes your work more flexible. Strobe light can give alerting signal when working .

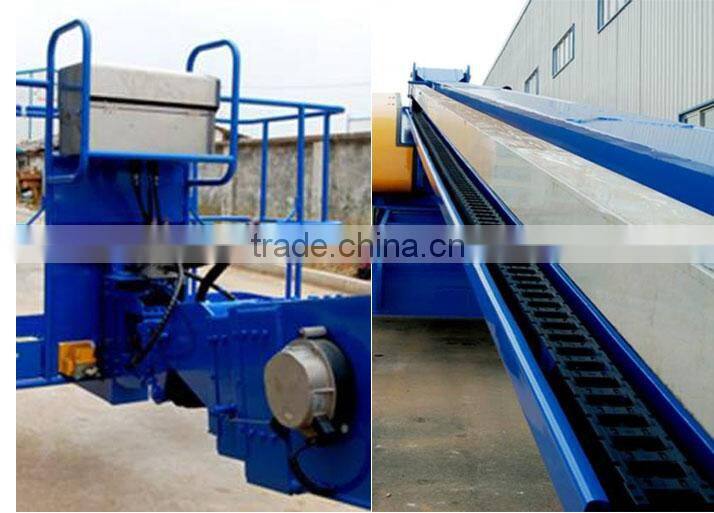

4 .High Safety of Body Structure
---Patented Weighting System:accurately weight what on the platform with automatic division of various load levels; Precise Weighting Ability in all locations of the platform for objects or humans; Automatic power cut-off and alarm with light and sound when the platform is over-loaded.
Patented Socket Tow-Chain System: avoid serious disorder and rupture of the cables and oil-pipes, which is caused by over-bending of boom and cantilever tow-chain.

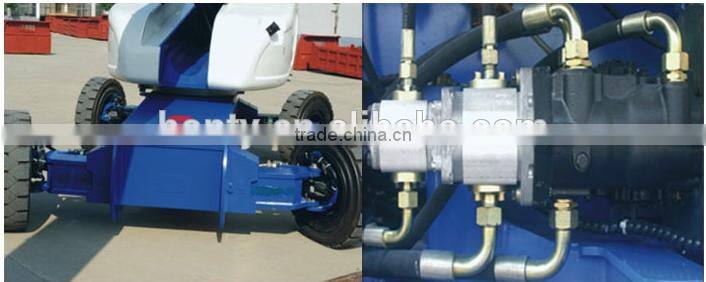

5. Driving mode 4*4(optional)
---The four-wheel drive is powerful with great grade-ability.
6.Swing-out engine tray
---It is easy for maintenance and repair
Articulating Boom Lift Applications
FAQ
1 Are you a factory or trading company?
--We are an integrated intustrial and trade company. So we have competitive price.
2 How about your service?
--Technical support on installation ,using and maintaince are available .We will keeping trying to meet your need..(video , online-service are available)
3 How does your factory do regarding quality control?
--Self-inspection department as well as third-party identification (CE. ISO9001),also accept you inspection. And welcome to visit our factory.
packaging: standard international packaging . The wooden case can be customized as the machine size. Water-proof.
shipping: The loading port is Qingdao,China. We will delivery your machine once your order done within 15 days.
contact us
Name:Erica
Tel : 86+13808938760
Whatsapp : 86+13808938760
Wechat : zym321456
Skype : erica-sale
Please feel free to contact if you have any question ,I will reply within 6 hours.
