Salt Machine
- Shanghai Tianjin Dalian Shenzhen Guangzhou HK
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shaanxi, China | Brand Name | LIB | |
| Model Number | S-250 | Power | Electronic | |
| Usage | Other, Salt Machine |
Product Description

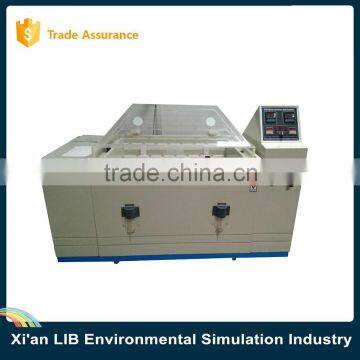

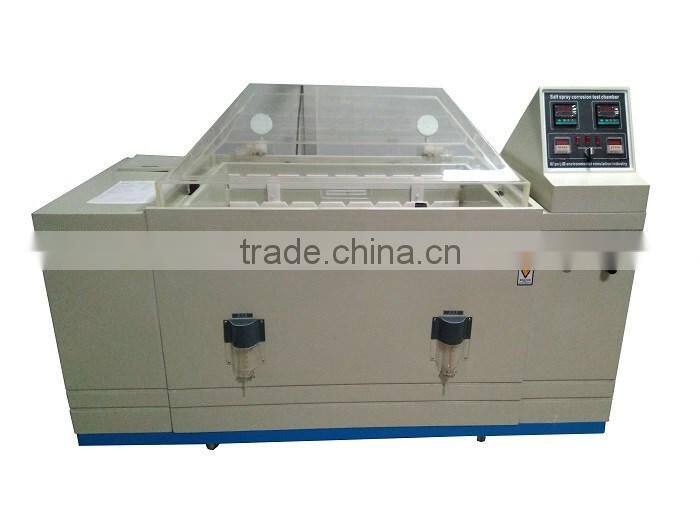

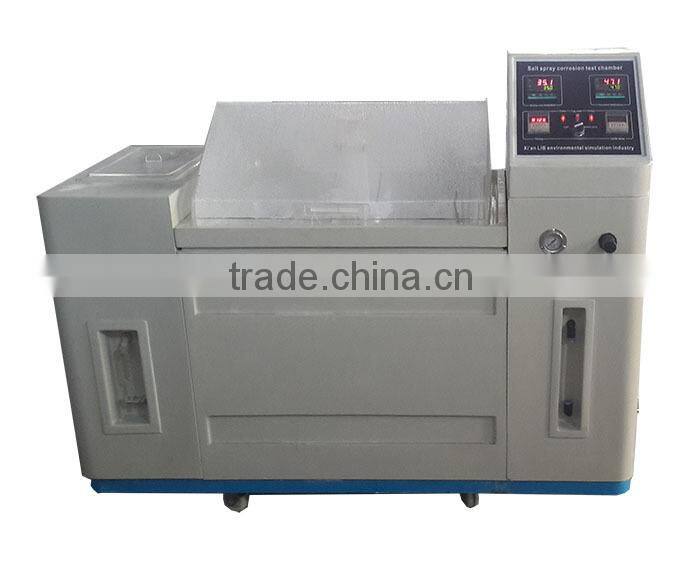

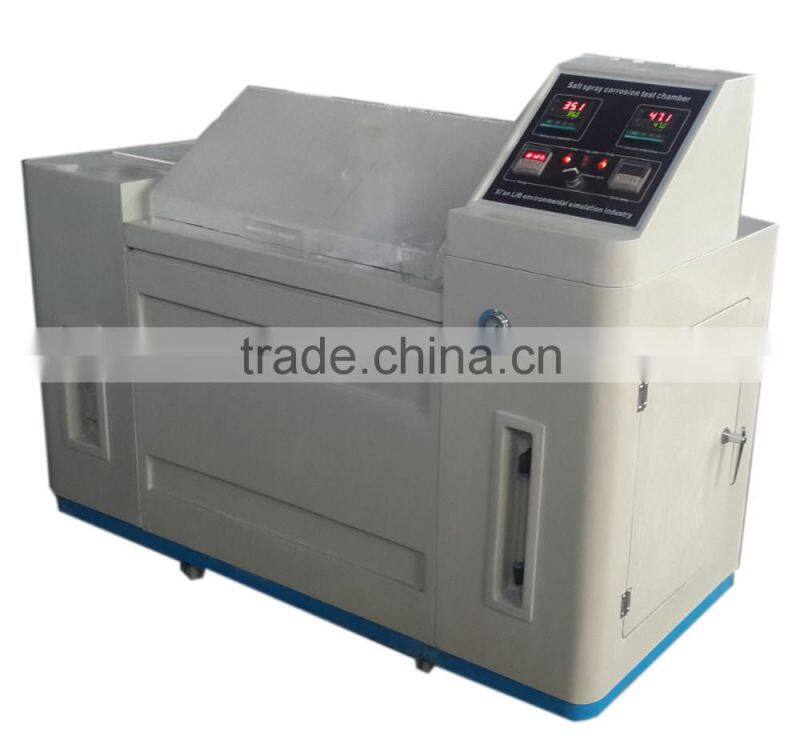

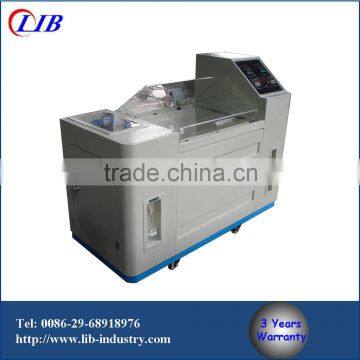

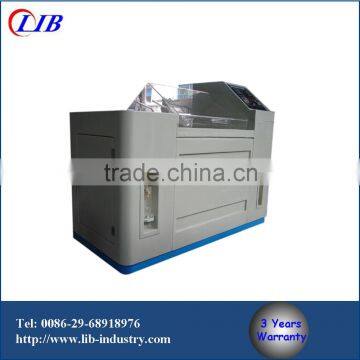

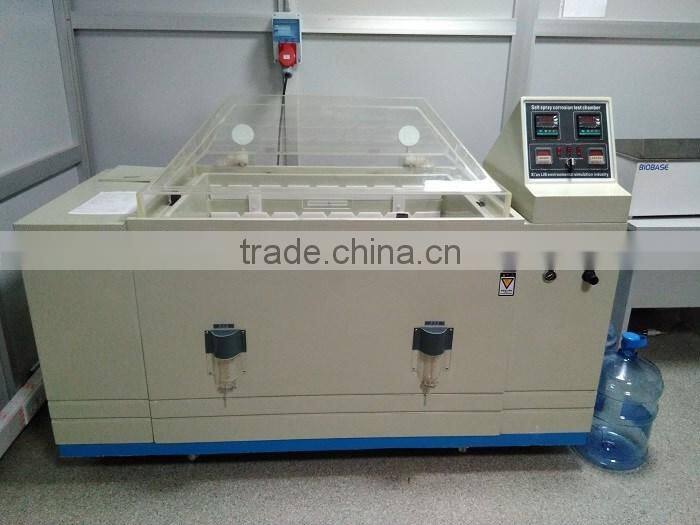

Salt Machine
Salt Machine
Technology Specification
| Model | S-150 (mm) | S-250 | S-750 | S-010 | S-016 | S-020 |
| Inner Size | 450*600*400 | 600*900*500 | 750*1100*500 | 850*1300*600 | 850*1600*600 | 900*2000*600 |
| Exter Size | 800*1080*1080 | 870*1400*1150 | 1150*1750*1400 | 1250*2000*1550 | 1250*3000*1550 | 1300*2700*1550 |
| Technical structure | ||||||
| Temperature range | RT+10℃~60℃ | |||||
| Humidity range | 95% ~ 98% RH | |||||
| Temperature fluctuations | ± 0.5 ℃ | |||||
| Temperature deviation: | ± 2.0 ℃ | |||||
| Test time | 1~999 hours, settable | |||||
| Spray deposition | 1~2ml / 80cm2 · h | |||||
| Spray type | Continuous / Periodic | |||||
| Control system | ||||||
| Temperature Controller | LED dosplay. P.I.D + S.S.R. microcomputer integrated | |||||
| Temperature sensor | Platinum resistance. PT100 | |||||
| Spraying time | 1~99 hours, settable | |||||
| Salt fog collected | With standard funnel and metering cylinder | |||||
| salt water filtration | With water filter near the suctiontubes( Avoid the nozzle blockage) | |||||
| Salt water preheating | The temperature for salt water should be equal with workroom temperature | |||||
| Spraying system | Tower spray and nozzle without crystallization(Fog is more fine and uniform distribution) | |||||
| Used material | ||||||
| Exterior material | FRP,glass fiber reinforced plastics (corrosion resistance, Anti-aging, high strength) | |||||
| Interior material | FRP,glass fiber reinforced plastics (corrosion resistance, Anti-aging, high strength); | |||||
| Standard configuration | round bar / 1 piece; sample holder / 1 piece; spray nozzle / 2 pieces; funnel / 2 pieces; metering cylinder / 2 pieces | |||||
| safety device | Humidifier dry-combustion protection, Independent over-temperature protection, Water shortage protection, Over-current protection, Refrigerant high-pressure protection switch, Over-current circuit breaker, Earth leakage protection and so on. | |||||
| Sealing | Water seal structure, no salt fog overflow | |||||
| Power Supply | AC220V 50HZ / AC 380V 50HZ | |||||
Design And Construction

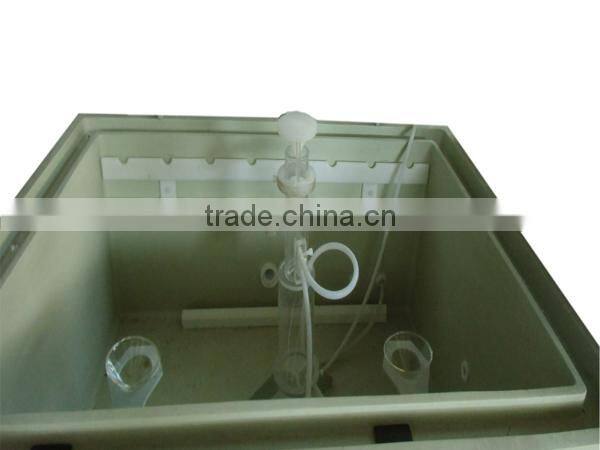

Fog Chamber and Bracket
Is made from Glass fiber reinforced plastics
Material is corrosion resistance, Anti-aging, high strength
Hydrostatic hood seal
Test specimen bracket/holder

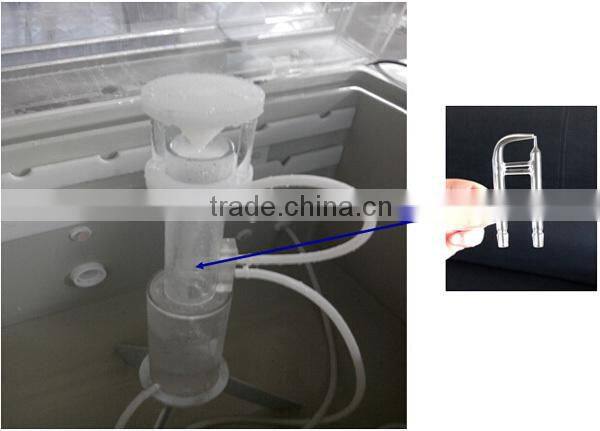

Corrosion resistance atomizer tower
Quartz spray nozzles
No crystallization of atomizer tower spray and nozzle
Collectors in fog chamber

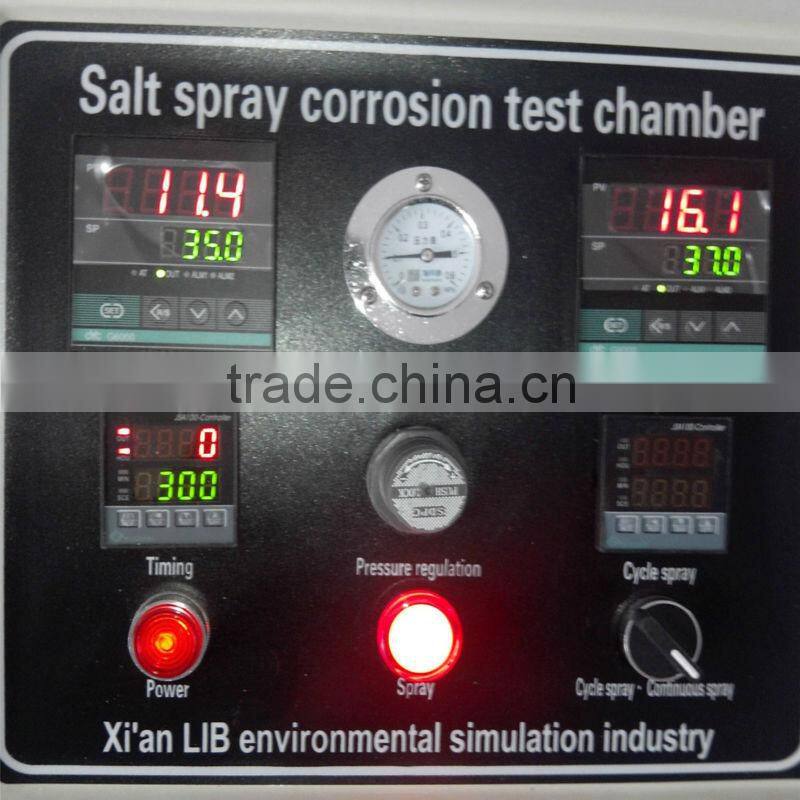

Control Panel
LED display, P.I.D + S.S.R. microcomputer intergrated
Programmable touch screen type controller is optional
Sensors
Temperature sensor PT-100 A class
Humidity sensor Dry and wet bulb sensors
Resolution: temperature +/-0.01C, humidity +/-1%RH
Safety Protection
Independent over-temperature protection;
Water shortage protection
Over-current protection
Earth leakage protection and so on
Power Supply And Wiring
380V, 50HZ 10% +/-
Three phase five little system
Salt Machine

Salt Machine Video
(Please copy it to your browser to open,thanks!)
Export Standard Wooden Package
It can Can be used for Sea, Air,Railway, Truck transportation.
3 Years Warranty
LIB INDUSTRY
Frequently Asked Question
Question: I need chambers very urgently, do you have stock ?
LIB: we have no stock, our standard delivery is 10 days , if you need in urgent , we can speed up the production ,will short to 8 days , customer should notice before order .
Question: How about your LIB payment terms?
LIB: Our payment is 50% with order, and 50% before delivery.
Question: Can LIB arrange delivery to our office (Lab)?
LIB: Yes, LIB can arrange shipping to your country and to your office ( Lab) by sea, by air, by train and by truck on conditions FOB, CFR, CIF, DDU and DDP for customers .
Question: Can we visit your plant before order?
LIB: We welcome and sincerely invite you or your team to visit our plant, we will help you to arrange hotel and pick you up from airport.
Question: Have you sold chambers to our country?
LIB: Now LIB climatic test chambers sold to more than 25 countries, like USA, Canada, Russia, UK, Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand Vietnam, Thailand, Iran, Brazil ……and so on .
Question: Can you arrange installations and commissioning in our lab?
LIB: Firstly, for standard chamber we had 5 days commissioning before shipping , you just need link power in your lab, then can start to operate; Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it; Thirdly, some of customized chambers we should to install and teach your team to operate .
Question: How about your warranty?
LIB: It is three years warranty for every LIB’s chamber, and lifetime service. Now LIB has 8 agents in the world, and in Europe (Italy) , America (USA) Middle East(Iran) had service office, we can in first time to solve your problems.
