Home > Products > Aluminum alloy lift > Aluminum Lift Platform /hydraulic Motorcycle Lift Dining Table

Aluminum Lift Platform /hydraulic Motorcycle Lift Dining Table

FOB Price

US$ 1,800 - 2,500 / Roll

1 Roll(Min. Order)

Port QINGDAO
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	HONTY
Model Number	HTLH	Lift Mechanism	Telescoping Lift
Lift Drive / Actuation	Hydraulic	Power	0.75KW
Rated Loading Capacity	125kg	Min. Lifting Height	80mm
Max. Lifting Height	4-6m	Table Size	600*550
Overall Dimensions	13008001620, 13008001620	Weight	260KG
Certification	CE ISO, CE ISO	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

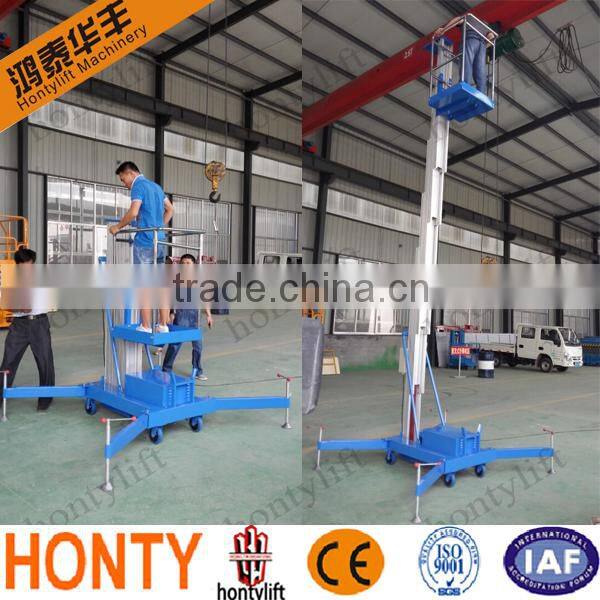

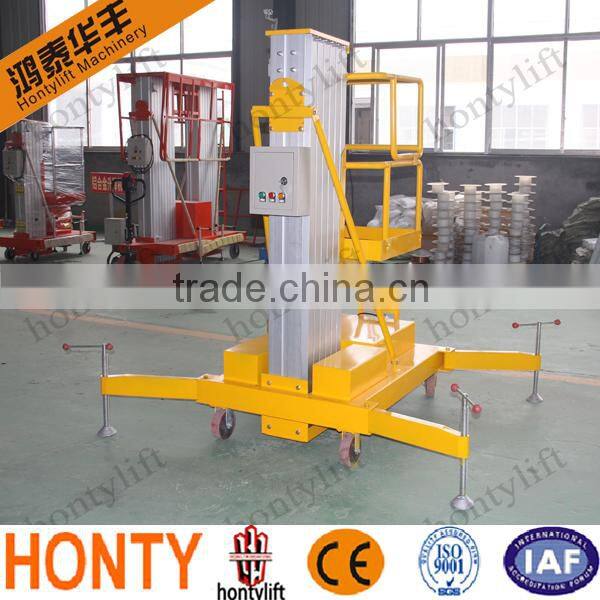

aluminum lift platform /hydraulic motorcycle lift dining table

Product Description

1.it adopts high strength aluminum alloy ,light weight ,compact main body ,easily pushed around to the designated sites ,platform height 4m,6m,8m,10m etc .the Max height can reach 24m

2.Loading capacity :from 100kg to 250kg

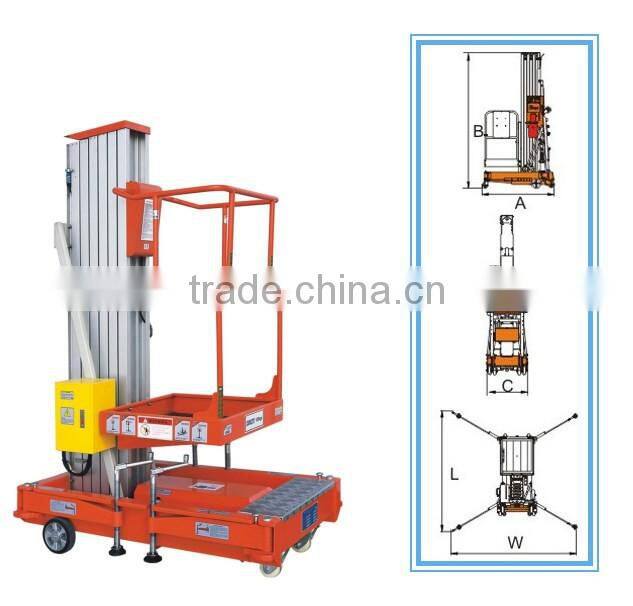

HTLH4-125-1	4	5.7	125	600*550	0.75	220	13008001620
HTLH5-125-1	5	6.7	125	600*550	0.75	260	13008001620
HTLH6-125-1	6	7.7	125	600*550	0.75	270	13008001620
HTLH8-125-1	8	9.7	125	600*550	0.75	320	13758301980
HTLH10-100-1	10	11.7	100	600*550	0.75	350	14009001980

Application :

Single Mast lift platform are suit for hotels, banks, big halls, supermarkets, airport waiting rooms, and railway station waiting rooms etc. hotels, banks, big halls, supermarkets, airport waiting rooms, and railway station waiting rooms etc.

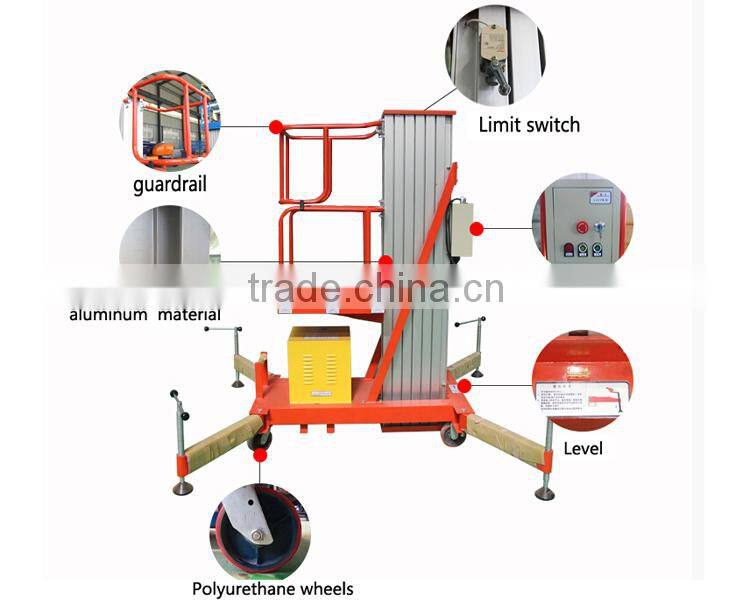

Advantages:

1.Small volume ,do not occupy space

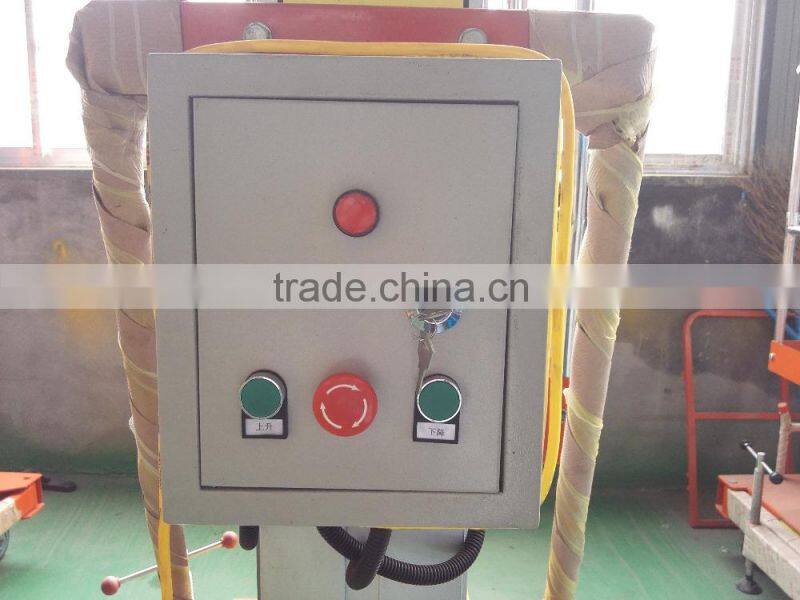

2.When lifting up or down ,down up and stop three buttons control the lift

3.Great load capacity ,125% capacity load test ,skidproof platform

4.Sensitive overload protection devices locking device for failing protection

Safety control

1.explosion-proof valves :protect hydraulic pipe ,ant-hydraulic pipe rupture

2.Spillover valve :it can prevent high pressure when the machine moves up ,adjust the pressure

3.Emergency decline valve ::it can go down when you meet an emergency

4.Phase lack &phase dislocation protection .

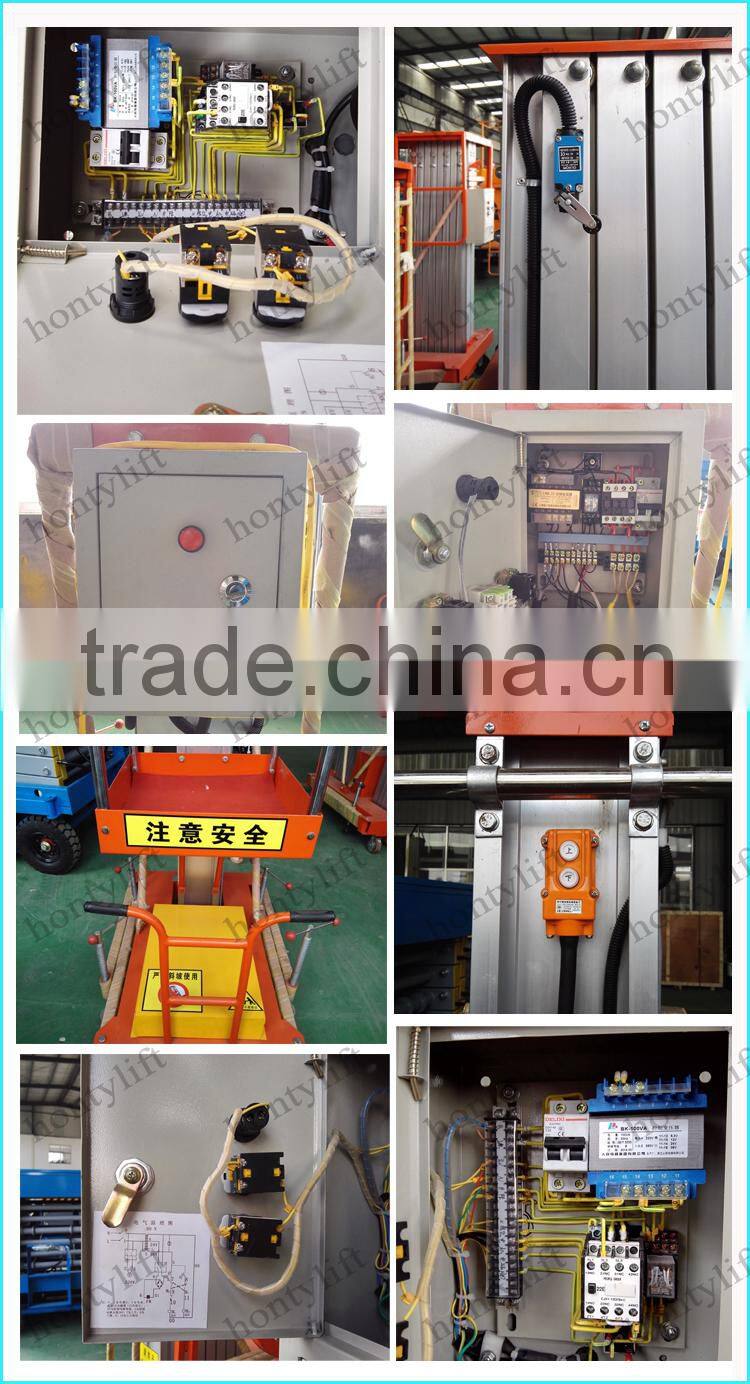

Details picture

Packaging Details:	1) Internal packaging:be packed air bubble film inside first 2) External packaging:be packed in wooden cases
Delivery and shipping Details:	1)Usually be shipped by maritime transport 2)if it is landlocked countries, generally land and sea transport. 3)15—30 days after confirmation of the purchase order

Packaging Details:

1) Internal packaging:be packed air bubble film inside first

2) External packaging:be packed in wooden cases

Delivery and shipping Details:

1)Usually be shipped by maritime transport

2)if it is landlocked countries, generally
land and sea transport.

3)15—30 days after confirmation of the purchase order

FAQ

1. How about the delivery time?
Within 15 working days after we receive the order

2. What kind of payments do you support?
T/T, L/C, other kinds, pls contact with us.

3. What is the MOQ?
Generally speaking, the MOQ is 1 set, Different products have different MOQ. More quantity, better price. pls contact with us.

4. Can you produce according to customer's requirements?
Yes, of course, we are professional manufacturer, need tell us the lifting height, load capacity and platform size,
OEM we are also welcome.

5. Can you tell us your main customers?
That's our customer's privacy, we should protect their information, when you need, we ask them first, if agree, we can tell u.
At the same time, pls rest assured that your information is also safe here.
