Dust Resistance Chamber
- Shanghai Tianjing Dalian Guangzhou Shenzhen HongKong
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shaanxi, China | Brand Name | LIB industry | |
| Model Number | DI-1500 | Power | Electronic | |
| Usage | Other, Dust Resistance Chamber |
Product Description
Dust Resistance Chamber
Dust Resistance Chamber
Dust Resistance Chamber is applicable for the dust proof and resistant test of various auto components and parts including lamps, meters, electric dust proof sheath, steering system and lock etc.
Designed according to IEC60529 Standard

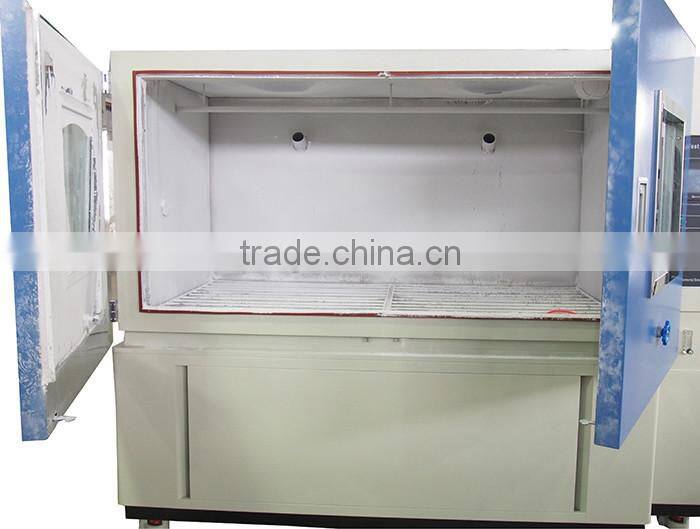

Design and Construction
Test area and shelf
Test area is made of stainless-steel.
A stainless steel shelf is fixed above the sieve and funnel, you can put test specimen on it.
Standard load of shelf is 50kg (If need greater load, confirm in advance).
Chamber inside equipped with power interface for test specimen.
Normal wire diameter is 50 um;Normal width of a gap between wires is 75um.
75um Sieve
Control Panel
5.7" programmable color touch display controller
99 programs 99 sections
R-232 interface PC Link with software
Show total process time on controller.

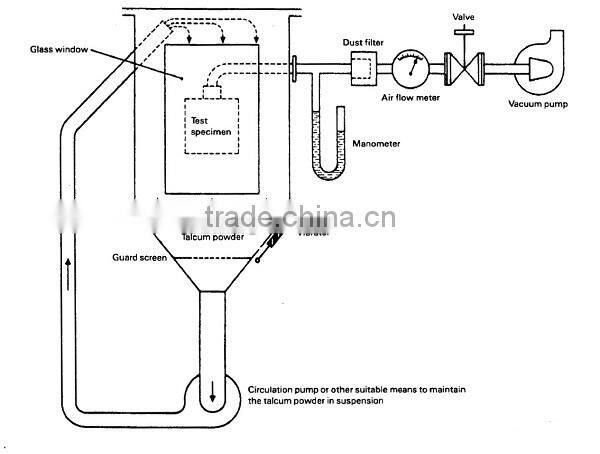

Dust circulation
During test, dust is blown in test area by air motor, and then fall in funnel, and re-cycle blowing by
circulating pump to achieve dust circulation test.
Bottom of chamber is fitted with circulating pump, vacuum pump, motor.
Vacuum system
Some test specimens need to be vacuum.
Bottom of dust chamber is fitted with vacuum pump, a pressure gauge,air filter, pressure regulator, connecting tube which one side to connect pump, one side connect to test specimen.
Technical Parameters
Model | DI-800 | DI-1000 | DI-1500 | DI-2000 |
Internal dimensions (mm) | 800*1000*1000 | 1000*1000*1000 | 1000*1500*1000 | 1200*1800*1200 |
Overall dimensions (mm) | 1050*1420*1820 | 1250*1420*1820 | 1250*1900*1820 | 1500*2200*2200 |
Performance index | ||||
Normal wire diameter | 50um | |||
Normal width of a gap between wires | 75um | |||
The Talcum powder amount | 2kg ~ 4kg/m3 | |||
Fight time | 0 ~ 99H59M | |||
Fan cycle time | 0 ~ 99H59M | |||
Specimen power outlet | Dust-proof socket AC220V 16A | |||
Control system | ||||
Controller | 5.7" programmable color display touch screen controller | |||
PC Link with software, R-232 interface | ||||
Vacuum system | Equipped with vacuum pump, a pressure gauge, air filter, pressure regulating triple, connecting tube | |||
Circulating fan | Enclosed alloy low-noise motor, multi-vane centrifugal fan | |||
Heating system | Independent Nichrome electronic heating system | |||
Power supply | 380V 50HZ; | |||
Safety Devices | Electric leakage, short circuit, Over-temperature, motor overheating Over-current protection/ Power failure memory function for controller | |||
Note: The test chamber can meet the standards IEC60529 GB2423,GB4706,GB4208, and satisfy the experiment requirements of parts enclosure protection grade for household appliances for DIN,low-voltage apparatus,automobiles,motorcycle. | ||||
Note: Chamber size can be customized according to customer request. We have experience of producing and installing walk in dust chamber.
Packaging dimension and weight
Model | Packing Dimension | Gross weight | Delivery Time |
DI-800 | 1500*1800*2200 mm | 530kg | 20days |
DI-1000 | 1700*1900*2200 mm | 700kg | 20days |
DI-1500 | 1400*2050*2000mm | 800kg | 20days |
DI-2000 | 1650*2350*2400mm | 950kg | 20days |
LIB: we have no stock, our standard delivery is 25 days , if you need in urgent , we can speed up the production ,will short to 15 days , customer should notice before order .
Question: How about your LIB payment terms?
LIB: Our payment is 50% with order, and 50% before delivery.
Question: Can LIB arrange delivery to our office (Lab)?
LIB: Yes, LIB can arrange shipping to your country and to your office ( Lab) by sea, by air, by train and by truck on conditions FOB, CFR, CIF, DDU and DDP for customers .
Question: Can we visit your plant before order?
LIB: We welcome and sincerely invite you or your team to visit our plant, we will help you to arrange hotel and pick you up from airport.
Question: Have you sold chambers to our country?
LIB: Now LIB climatic test chambers sold to more than 25 countries, like USA, Canada, Russia, UK, Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand Vietnam, Thailand, Iran, Brazil ……and so on .
Question: Can you arrange installations and commissioning in our lab?
LIB: Firstly, for standard chamber we had 5 days commissioning before shipping , you just need link power in your lab, then can start to operate; Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it; Thirdly, some of customized chambers we should to install and teach your team to operate .
Question: How about your warranty?
LIB: It is three years warranty for every LIB’s chamber, and lifetime service. Now LIB has 8 agents in the world, and in Europe (Italy) , America (USA) Middle East(Iran) had service office, we can in first time to solve your problems.
