Home > Products > Aluminum alloy lift > Narrow Aisle Aluminum Alloy Electric Scissor Lifts

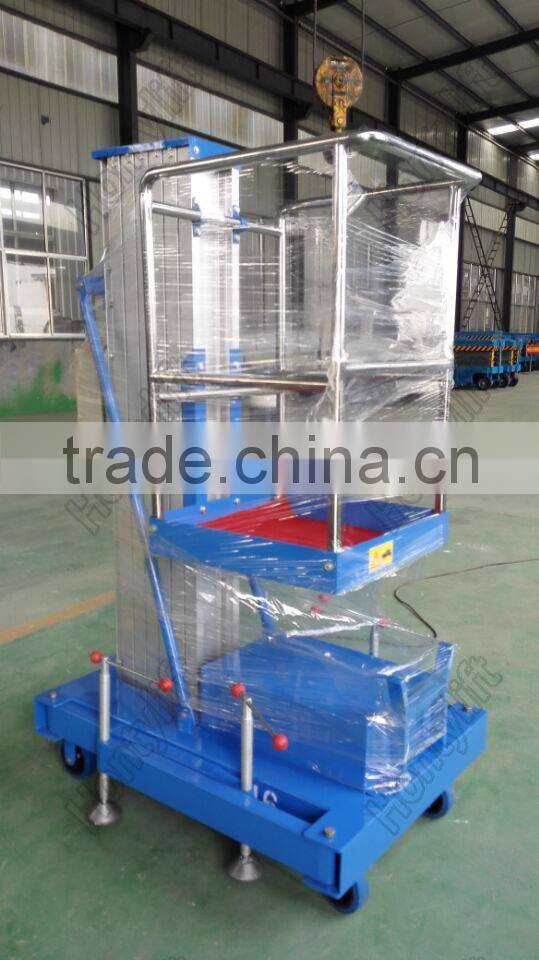

Narrow Aisle Aluminum Alloy Electric Scissor Lifts
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Honty | |
| Model Number | HTLH4-125-1 | Lift Mechanism | Lift Chain | |
| Lift Drive / Actuation | Hydraulic | Power | 0.75kw | |
| Rated Loading Capacity | 125kg | Min. Lifting Height | 4.0 m | |
| Max. Lifting Height | 9.7 m | Table Size | 0.6*0.55 mm | |
| Overall Dimensions | 1.3*0.8*1.62 mm | Weight | 220 kg | |
| Certification | CE ISO9001 BV | Warranty | One Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Narrow Aisle Aluminum Alloy Electric Scissor Lifts
Aluminum Alloy Electric Scissor Lifts introduction
- Powered by a plugged power point
- No noise and air pollution
- Indoor Usage
- Longer usage time

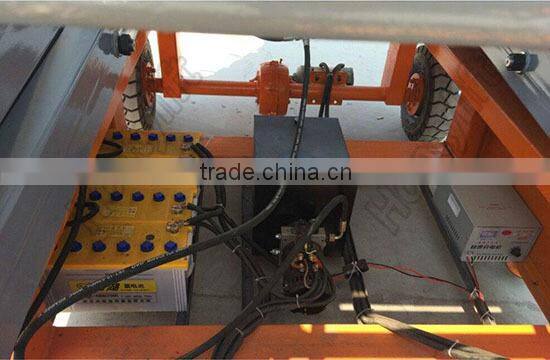

DC Powered Models
- Battery operated, can be use outdoor
- Use for workspace constraints

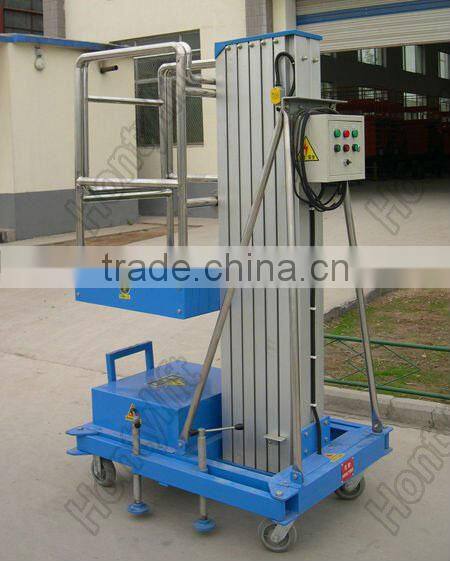

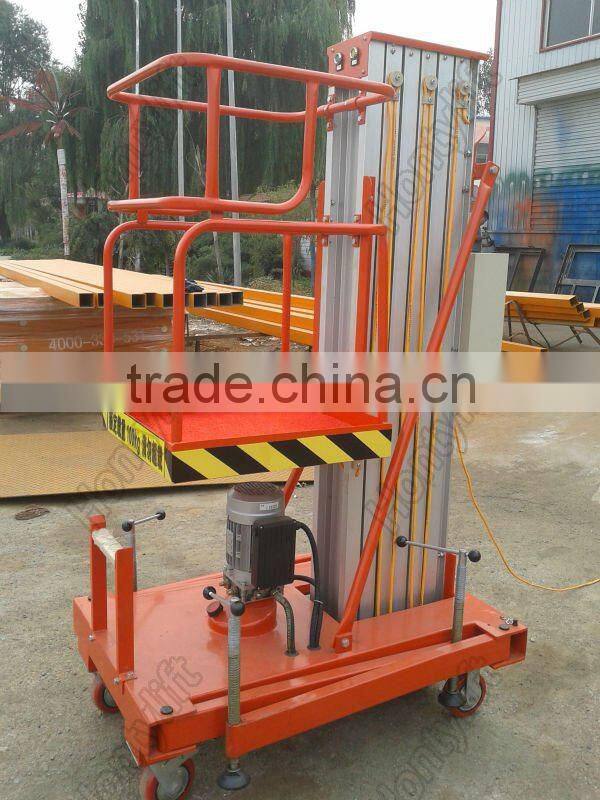

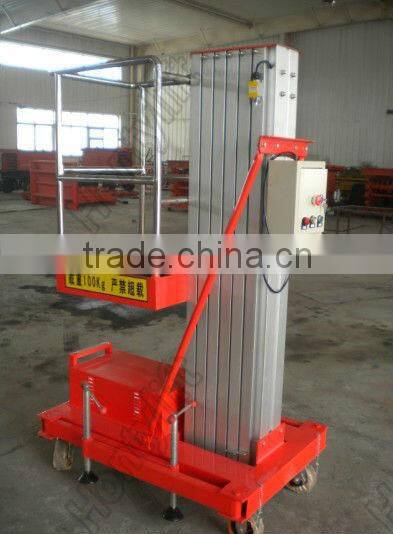

aluminum alloy aerial working lift
1 .Luxurious aluminum hydraulic platform uses the high strength aluminum alloy materials,
with beautiful shape, small volume, light weight, lifting balance, the advantages of safe and
reliable,the platform of their own insurance rope wear and safety protection device, and can
up and down operation.
2.Lift or fall steadily: The seamless transmission is used between the lifting masts, thus
minimizing the amount of sway after lifting.
3.Safe and reliable: The four turning stabilizers of the unit connected to the four corners
of the chassis support the MEWP duringwork. Therefore, the steadiness of the whole platform is guaranteed.
4.Convenient: The whole work platform is light because the lifting masts are made of alloy
aluminum. The structure is compact and the volume is small, so only one person can move
the equipment and carry it through a very narrow passage.

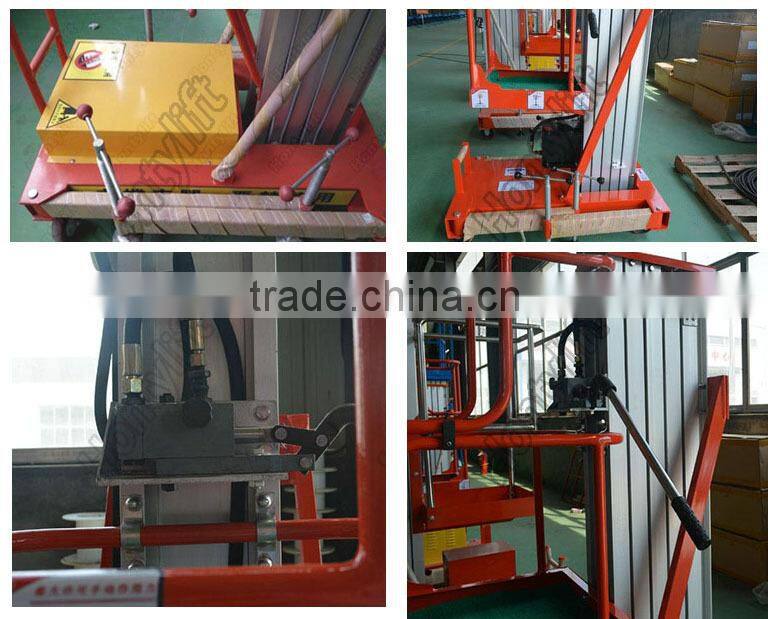

aluminum alloy aerial working lift : features
1)Adopting high strength aluminum molding material keeps deflecting degree and swing tiny.
2)Equipped with overload safety protection device
3) Equipped with safeguard valve to avoid hydraulic pipe rupture
4)It installs the emergency manual hydraulic valve to cope with power cut.
5)It also can add stretch platform to extend to the desired place when the platform length isn’t enough.
6)Double chains greatly improve the safety factor.
7)Adopt emergency stop button multiple safety protection measures.
8)The translatable supporting legs can ensure working dead zone minimization .
9)Tailor-made guide wheel device equipped on the mast makes lifting smooth and stable.
aluminum alloy aerial working lift : type
Model | Lifting height | Working height | Loading Capacity | Table Size | Overall Dimensions | Weight | Power | |
(m) | (m) | (kg) | (mm) | (mm) | (kg) | (kw) | ||
Single mast | ||||||||
HTLH4-125-1 | 4 | 5.7 | 125 | 600*550
| 1300*800*1620 | 220 | 0.75 | |
HTLH5-125-1 | 5 | 6.7 | 1300*800*1620 | 260 | ||||
HTLH6-125-1 | 6 | 7.7 | 1300*800*1620 | 270 | ||||
HTLH8-125-1 | 8 | 9.7 | 1375*830*1980 | 320 | ||||
HTLH10-125-1 | 10 | 11.7 | 100 | 1400*900*1980 | 350 | |||
Double masts | ||||||||
HTLH6-200-2 | 6 | 7.7 | 200 | 1190*540 | 1450*890*1980 | 420 | 1.5 | |
HTLH7-200-2 | 7 | 8.7 | 1190*540 | 1450*890*1980 | 480 | |||
HTLH8-200-2 | 8 | 9.7 | 1200*600 | 1450*890*1980 | 520 | |||
HTLH10-200-2 | 10 | 11.7 | 1400*600 | 1550*890*1980 | 550 | |||
HTLH12-200-2 | 12 | 13.7 | 1500*600 | 1700*920*1980 | 640 | |||
HTLH14-200-2 | 14 | 15.7 | 1550*600 | 1750*950*2300 | 720 | |||
Triple masts | ||||||||
HTLH10-200-3 | 10 | 11.7 | 200 | 1300*540 | 1550*900*1980 | 720 | 1.5 | |
HTLH12-200-3 | 12 | 13.7 | 1450*540 | 1700*890*1980 | 780 | |||
HTLH14-200-3 | 14 | 15.7 | 1600*880 | 1800*1200*2480 | 980 | 2.2 | ||
HTLH16-200-3 | 16 | 17.7 | 1780*800 | 1800*1200*2580 | 1180 | |||
Tiltable triple masts | 16( M )3100*1200*2000(put down) 18( M )3200*1200*2200(put down) | |||||||
Four masts | ||||||||
HTLH14-200-4 | 14 | 15.7 | 200 | 1600*800 | 1800*1000*2420 | 1000 | 2.2 | |
HTLH15-200-4 | 15 | 16.7 | 1700*800 | 2000*1000*2630 | 1200 | |||
HTLH16-200-4 | 16 | 17.7 | 1700*800 | 2000*1000*2650 | 1300 | |||
HTLH18-200-4 | 18 | 19.7 | 1700*500 | 2100*1000*2800 | 1400 | |||
Tiltable four masts | 16( M )3300*1200*2000(put down) 18( M )3200*1200*2200(put down) 20( M )3650*1200*2200(put down) | |||||||
packaging: standard international packaging . The wooden case can be customized as the machine size. Water-proof.
shipping: The loading port is Qingdao,China. We will delivery your machine once your order done within 15 days.
Name:Tiny
whatsapp : 86+18763961675
Wechat : Tiny19931205
Skype : tiny-sale
Please feel free to contact if you have any question ,
I will reply within 6 hours.
