120g-450g waterproofing geomembrane/composite geotextile wholesale
- 100 Ton / Tons per Month
- qingda/tianjin/shanghai
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | juhui | |
| Model Number | JH-33012 | Geotextile Type | Non-Woven Geotextiles |
Product Description
Product introduction:

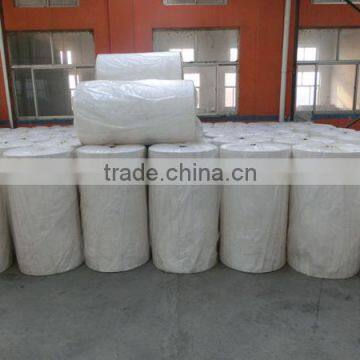

1.Nonwoven geotextiles are multi-purpose fabrics that are felt-like in appearance.
2.Nonwoven Geotextiles are available in varying strengths and thicknesses to ensure appropriate material 3.selection for your project. Custom roll sizes are also available.
4.Nonwoven geotextiles have a wide range of applications in civil environmental engineering and construction projects.
Its usage include:
1 Filtration of soils in drainage applications by retaining soil particles while allowing for the free flow of water
2 Separation and stabilization in road and railway construction
3 Prevention of soil movement in erosion control measures
4 Cushioning and protection in many containment projects
Spun fiber needle-punched non woven geotextile basic technical requirments | |||||||||||||
No | Specification | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | Remark |
1 | Unit weight Tolerabce % | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 |
|
2 | Thickness mm | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | 4.1 | 5.0 |
|
3 | Width, Tolerance, % | -0.5 | |||||||||||
4 | Breaking Strength KN/m | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11.0 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 |
|
5 | Breaking elongation percentage, % | 25-100 | Longitudinal, Transverse directions | ||||||||||
6 | CBR bump strength, KN | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4.0 |
|
7 | Equal aperture 090(095) mmk | 0.07-0.2 |
| ||||||||||
8 | Coefficient of Vertical Permeability cm/s | kx(10-1 - 10-3) | k=1 | ||||||||||
9 | Tearing strength, KN | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Longitudinal, Transverse directions |
package: Packed in roll. Can be packed according to requirement
deliver time: 15days after order confirmed
membrane,PU waterproof coating and Waterproof membrane production lines.
After sixteen years’ operation, the company has extended its business scope from home to abroad. It not only has established the long-term partnership with many domestic well-known waterproof enterprises but also with Russian, Algeria,Iran, India,Australia and U.S. etc.
