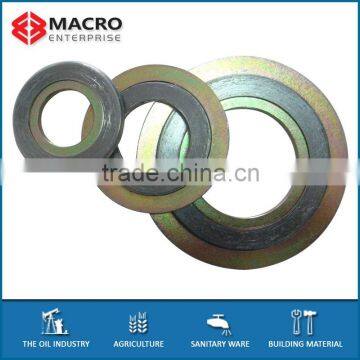

SS316 & Graphite Spiral Wound Gasket (Gasket Seal, Spiral Gasket)
- Tianjin Port
- T/T Credit Card
You May Like
Product Details
| Place of Origin | China | Brand Name | Macro | |
| Model Number | MAC-02 | Material | Metal | |
| Shape | Ring Gasket | Standard or Nonstandard | Standard |
Product Description
Specifications
SS316 & Graphite Spiral Wound Gasket (Gasket Seal, Spiral Gasket)1.Have stock, fast delivery time
2.Lowest price
SS316 & Graphite Spiral Wound Gasket (Gasket Seal, Spiral Gasket)
Spiral Wound Gasket Type:
Style | Construction | Flange | Hoop material | Filler Material | Inner & Outer Material | Size (mm) | Thickness MM | |
1 | Basic type | Tongue and Groove | Ocr13 304 304L 316 316L 321 TI Mon400 Inconel Etc. | Graphite PTFE Asbestos Non-asbestos Ceramics
| Carbon steel 304 321 304L 316 316L T1~T3 Monel Incoloy 600-800 Hastelloy C276C4 | 15-3000 | 2.5 to 7.2 | |
2 | With outer ring | Raised face and Flat face | ||||||
3 | With inner ring | Male and Female | ||||||
4 | With inner and outer ring | Raised face and Flat face | ||||||
5 | For heat exchanger | Heat exchanger | ||||||
Product Overview:
There are four types of sprial wound gasket: the basic type, the inner ring, the outer ring, and the inner&outer ring.
Its widely used in electric power plant, chemical industry, chemical fertilizer plant, Polycrystalline silicon plant, Petrochemical plant, valve, flange, vessel and so on. The sprial wound gasket are good at high temperture, high pressure and erosion resistance.
Products Features:
1. The material of Sprial Wound Gaskethas two parts, the metal part and the non-metal part.
2. The metal part: Carton Steel, 304, 304L, 316, 316L, Ti, Monel, Ni, Hastelloy alloy, Inconel
3. The non-metal part: Graphite, PTFE, Non-Asbestos, Asbestos
4.Make gaskets suitable for high pipeline pressure on flat or raised flange faces.
5.Temperatures from cryogenic up to 1000 °C
Filler Material | Temperature | Pressure |
Graphite | -240°c+550 °cin oxidizing media | 300 bar in hot water, oil, etc |
|---|---|---|
-240°+800°c in non-oxidizing media | 200 bar in vapor oil, gases, etc | |
Asbestos | -150°c-+450°c | 150 bar |
PTFE | -200°c-+250°c | 150 bar |
Spiral wound gaskets Typical Applications:
1. Pipe, valve, pump, thermal exchange, condensing tower, plain hole and man hole of flange, etc.
2. Petrochemical, chemical, mechanical manufacturer, power station, metallurgy, shipbuilding, medical and pharmaceutical unclear power station and navigation, etc.
If you interested in spiral wound gasket, pls contact us freely
