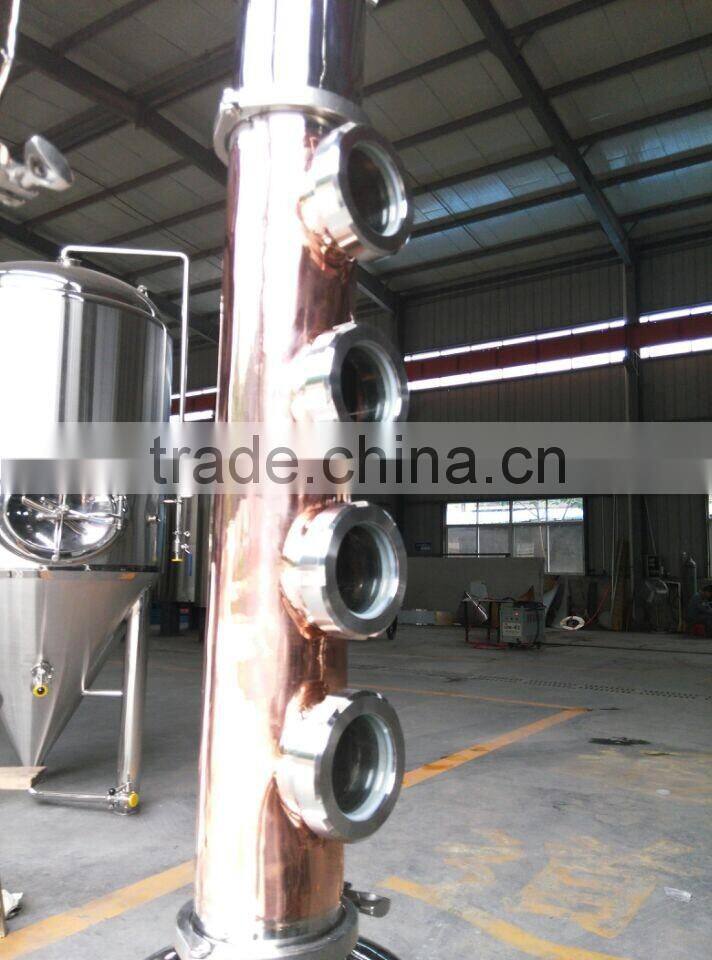

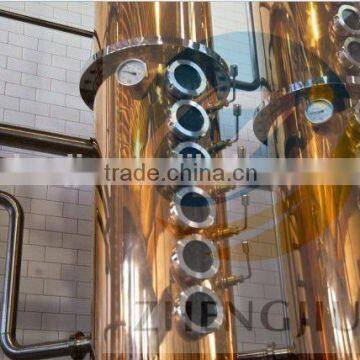

Copper Alcohol Distiller

The basis of the high flexibility is a modular system with
freely combinable components. This allows optimal costefficient individualized adjustments, using tried and tested
components.
Optimized Second Distillation Columns
for Highly Aromatic Distillates
Integrated, proven system with individually engageable,
specially coordinated fine distillate bottoms with maximized
copper contact surface. This continuously further developed
design ensures that the desired flavors unfold and are separated from unwanted components.
High-performance Rectification Columns
Our high-performance columns for effective rectification
and cleaning of the distillate easily realize alcohol concentrations of up to 96 % vol. — at any desired purity level.
Copper Catalyzer
Our proprietary and patented lamella design significantly
contributes to improving the distillate. The innovative catalyzer technology guarantees a reduction of unwanted acid
content as well as cyanide and ethyl carbamate levels.
Copper Tube Dephlegmator
The copper tube bundle makes it possible to install a maximum heat exchange area in the smallest space. The numerous, thin cooling pipes form an extremely large and effective cooling surface. As a result, the dephlegmator is especially efficient and water-saving. The cooling area and thus
the cooling effect are infinitely adjustable with a user-friendly control system; this special design lets the dephlegmator
respond instantly to changes.

Condensers
Water-saving and highly efficient! The pipe bundle design
ensures the maximum possible heat exchange surface. By
deploying dual and triple circuit heat exchangers, we
implement optimal heat recovery concepts and facilitate
cost-efficient production under a wide range of conditions.
CIP Cleaning System
Effective cleaning of the entire distillation unit by means of
integrated high-pressure rinsing system. Rotating all access
nozzles enable rinsing of all components, which can be
cleaned with either hot water or cleaning agents. Clean
copper surfaces guarantee the highest distillate quality.
Using the cleaning system is as simple as can be.
Alcohol Management
Integrated alcohol reservoirs for all fractions. Manually or
automatically selectable. The reservoirs are equipped with
pump control systems and level switches. The digital concentration and volume data recording for the various
fractions facilitates effective company-internal production planning.
Heating
Steam or water bath. Our high-performance units are
equipped with devices for quick and even raw material heating. The heating control can be realized either manually or
automated via pressure/temperature control systems.
Condensate or waste gas heat recovery solutions are implemented as required and tailored to the individual units.

1) we will supply and confirm you with drawing before manufacturing.

2) we manufacture the equipment according the drawings.

3) we will free to sending the fittings which has broken at accident during two years.
