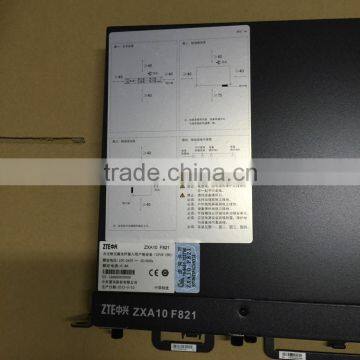

ZTE GPON ONU ZXA10 F821 GPON MDU supports VoIP, data and TDM services access

ZTE GPON ONU ZXA10 F821 GPON MDU supports VoIP, data and TDM services access

ZXA10 F821 is a GPON Optical Network Unit used in an FTTB/FTTO scenario. ZXA10 F821 supports VoIP, data and TDM services access. It builds a multi-tenant network center with computer technology and broadband optical network access technology, which connects various business appliances and equipments into the network to share Internet/voice connections so as to provide users with rich, diversified, personalized, convenient, comfortable, safe and effective services. ZXA10 F821 provides 1/2 GPON interfaces to connect OLT with an ODN. It offers a new choice for operators to deliver FTTB/FTTO access.

Optical port (line terminal)
  1/2 *GPON interface (SC/UPC)
User network interface
  Three slots mix plug in line card
  1* 10/100/1000Base-T in main control card
  8 *E1/T1 per line card
  8 *10/100Base-T per line card
Transmission Rate
Line terminal: 2.488Gbps downstream and 1.244Gbps upstream
User side interface: 10/100/1000Mbps or 10/100Mbps auto-negotiation
Transmission Distance
Link distance: 0 ~ 20km max.
Transmission Wavelength
Receiving: 1,490 nm
Transmitting: 1,310 nm
Receiving Sensitivity
Better than -28dBm
Transmitting Optical Power
1dBm~+5dBm
Overload Optical Power
-8dBm
Physical Performance
Power consumption: 26W
Dimensions: 255mm(D) x 482.6 mm(W) x 43.6 mm(H)
Working temperature: -30oC ~ 55oC
Working humidity: 5% ~ 95%
Weight: 4.5Kg
Power supply: -48V DC or 110V/220 V AC
Mounting mode: Rack/Cabinet/Desktop/Wall mounted
Backup battery: 6AH/10AH (Optional)
Service Function
Service: VoIP, Internet, IPTV,TDM E1/T1
Support G.703/G.704, TDM CES mode
Type C/D protection
Flexible plug-in card design
802.1Q, 802.1P, 802.1ad andQoS policy
IGMP snooping and controllable multicast
Loop back detection
Auto event alarm
Security management
Remote management
Dying Gasp
Optical power detection
SIP/H.248/ MGCP
G.711a/G.711u/G.723.1/G.729a/b, T.30/T.38
Up to 8T-CONTs and 256 GEM Ports
