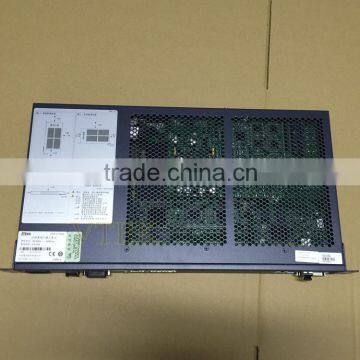

ZTE ZXA10 F822-8GPON MDU 8 ports GPON ONU with subscriber cables

ZTE ZXA10 F822-8GPON MDU 8 ports GPON ONU with subscriber cables

ZXA10 F822 is a GPON Optical Network Unit used in an FTTB/FTTO environment. ZXA10 F822 supports VoIP and data services access. It builds a multi-tenant network center with computer technology and broadband optical network access technology, which connects various business appliances and equipment into the network to share Internet/voice connections so as to provide users with rich, diversified, personalized, convenient, comfortable, safe and effective services.

ZXA10 F822 provides 1/2 GPON interface to connect OLT with an ODN. It offers a new choice for operators to deliver FTTB/FTTO access.

Interface Function
Optical port (line terminal):
  1/2 *GPON interface (SC/PC)
User network interface:
  8 * 10/100Base-T interfaces

Transmission Rate
Line terminal: 2.488Gbps downstream and 1.244Gbps upstream
User side interface: 10/100Mbps auto-negotiation
Transmission Distance
Link distance: 0 ~ 20km max.
Transmission Wavelength
Receiving: 1,490 nm
Transmitting: 1,310 nm
Receiving Sensitivity
Better than -29dBm
Transmitting Optical Power
1~5dBm
Overload Optical Power
-5dBm
Physical Performance
Power consumption:  22W
Dimensions:43.6 mm(H) * 482.6mm (W) *240 mm (D)
Working temperature: -30oC ~ 60oC
Working humidity: 5% ~ 95%
Weight: <4.5kg
Power supply: -48V DC or/and 110V/220 V AC
Mounting mode: Rack/Cabinet/Wall mounted
Service Function
Service: VoIP, Internet, IPTV
SIP/H.248/MGCP
G.711A/μ, G.723.1, G.729a/b
Auto registration at power-on
802.1Q, 802.1P, 802.1ad andQoS policy
MAC addresses: 16K
STP, RSTP
IGMP snooping/proxy and controllable multicast
Support SP, WRR and SP+WRR
Loop back test for user ports
AES-128 Decryption
DBA and FEC
Priority queues and scheduling
4k VLAN, 4MVLAN
Up to 32 T-CONTs and 256 GEM Ports
