Home > Products > CCTV AHD,CVI, analog Cameras&DVR > 420TV Lines 1/4"Sharp Color CCD AES,AGC,AWB,BLC Angle fo view 92degree 3.7mm Pinhole lens Color PIR CCTV camera(SC-H02SP)

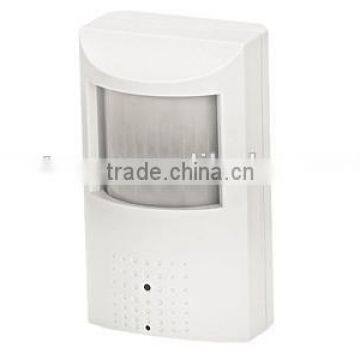

420TV Lines 1/4"Sharp Color CCD AES,AGC,AWB,BLC Angle fo view 92degree 3.7mm Pinhole lens Color PIR CCTV camera(SC-H02SP)
Negotiable
/ Piece
1 Piece(Min.Order)
- 5000 Piece / Pieces per Month
- Shenzhen China
- T/T D/P D/A Credit Card PayPal
You May Like
-
Free bracket 1/3"CMOS 8510 DSP IP66 analog 1200TVL CCTV IR Camera (SC-W02K)
-
IP66, Free bracket Board Lens 1/3" CMOS Waterproof analog 1200TVL CCTV IR Camera (SC-W01K)
-
1/4"Sharp Color CCD Sharp 38603 DSP Backlight compensation function 3.7mm Pinhole lens Color CCD mini CCTV camera(SC-M01SP)
-
420TVL 1/3"SONY CCD Board Lens 3.6mm AES,AGC,AWB,BLC Wide angle array IR LED Vandal-proof IR CCTV Camera (SC-V06SN)
-
3.6mm Board Lens 1/4"Sharp CCD 420TVL Color Dome Camera(SC-D03SP)
-
420TVL 4 pcs LED Arrays 8mm Megapixels Lens Fixed Iris Lens support AGC,BLC Color CCD Waterproof IR CCTV Camera(SC-W14SN)
Product Details
| Place of Origin | Guangdong, China | Brand Name | SMTSEC | |
| Model Number | SC-H02SP | Type | Analog Camera | |
| Sensor | CCD | Technology | Pinhole |
Product Description
420TV Lines 1/4"Sharp Color CCD AES,AGC,AWB,BLC Angle fo view 92degree 3.7mm Pinhole lens Color PIR CCTV camera(SC-H02SP)
> Color PIR Camera
> 3.7mm Pinhole lens
> Angle fo view 92°
> AES,AGC,AWB,BLC
> Optional audio features
Model | SC-H02SN | SC-H02SP |
Camera | PIR Camera | |
Image Sensor | 1/3"SONY Super HAD CCD | 1/4"Sharp Color CCD |
Signal System | PAL:ICX633K NTSC:ICX632K | PAL:2421K NTSC:2411K |
DSP | SONY CXD3142R | Sharp 38603 |
Sensing Area | 4.9mm x 3.7mm | 3.6mm x 2.7mm |
Signal System | PAL /NTSC | |
Effective Pixels | NTSC:510(H)X492(V) 250K PAL:500(H)X582(V) 290K | |
Horizontal Resolution | 420TV Lines | |
Minimum illumination | Color(0.1 Lux/F1.2), B/W(0 Lux/F1.2,IR On) | Color(0.5 Lux/F1.2), B/W(0 Lux/F1.2,IR On) |
Features | ||
AGC | Auto | |
BLC | Auto | |
White Balance | Auto | |
Day&Night | Auto | |
Shutter | 1/50(1/60) ~ 1/100,000 Sec. | |
S/N Ratio | More Than 48dB (AGC Off) | |
Lens | ||
Focal Length | 3.7mm/F2.0 | |
Lens Type | Pinhole lens | |
Mount Type | M12X0.5 | |
General | ||
Video Output | 1.0vp-p 75Ω BNC Connector | |
Working Environment | -30°C~+60°C / <95%RH | |
Power supply | DC12V±10% | |
Operating Current | Less than 120mA | |
Product Size | mm | |
Package Size | 100x100x95mm | |
Gross weight | 0.20KG | |
Packaging & Shipping
China Post (10-30 days)
EMS (5-15 working days)
DHL (3-5 working days)
UPS (3-5 working days)
•The most reliable, affordable way of shipping method deponds on your address.
•Online tracking number will be emailed to buyer through email.
•We dont take any responsibility for any custom delay.
Our Services
•All products have been checked and packaged in good condition before dispatch.
•All products have 1 year warranty.
