18X Optical Zoom HD 960 IR High Speed Dome IP CCTV Camera,1.3MP SONY CCD Module 10 Pcs LED Arrays,IR Distance>100m(SIP-H14)
Negotiable
/ Piece
1 Piece(Min. Order)
- Shenzhen China
- T/T D/P D/A Credit Card PayPal
You May Like
-
IP66 1.3 MP H.264 , TI DSP 2 Pcs LED Arrays 50m HD 960/720P IP IR Surveillance Cctv Bullet Camera(SIP-H07)
-
POE IP66 Full HD 1080P IP IR Vandal Proof CCTV Dome Camera,5.0 mp H.264 Dual-stream 2 Pcs LED Arrays 40m(SIP-H10HP)
-
IP65 5 MP H.264 , TI DSP 4pcsLED Arrays 70m Full HD 1080P IP IR Surveillance Cctv Bullet Camera(SIP-H05H)
-
IP65 1.3 MP H.264 , TI DSP 4pcs LED Arrays 70m HD 960/720P IP IR Surveillance Cctv Bullet Camera(SIP-H05)
-
1.3 MP CMOS TI DSP 2 Pcs LED Arrays 40mH.264 Real-time 30fps HD 1080P IP IR Cctv Bullet Camera (SIP-H03)
-
HD 960/720P IP Box Cctv Camera,H.264 Dual-stream 1.3 mp CMOS Sensor USB Storage, Audio, RS485,Alarm(SIP-H12A)
Product Details
| Place of Origin | Guangdong, China | Brand Name | SMTSEC | |
| Model Number | SIP-H14 | Type | IP Camera | |
| Style | Dome Camera | Sensor | CCD | |
| Technology | Pan / Tilt / Zoom | Special Features | Waterproof / Weatherproof |
Product Description
Product Description

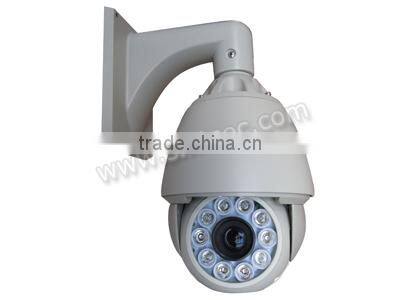

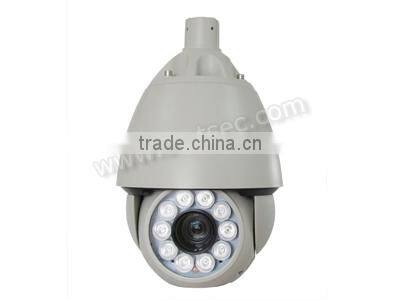

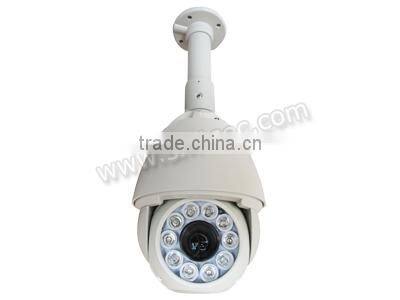

18X optical zoom HD 960 IR High Speed dome IP CCTV Camera,1.3MP SONY CCD Module 10 pcs LED Arrays,IR distance>100m(SIP-H14)
| Model | SIP-H14 | SIP-H14H |
| Camera Type | HD 960 IR High Speed dome IP Camera | HD 1080P IR High Speed dome IP Camera |
| Camera | ||
| Image Sensor | 1.3 Megapixel SONY CCD Module | 1/3" 2.0 Megapixel CMOS Module |
| DSP | TI Davinci DM368 DSP 32 dual-core , pure hardware compression | |
| Day/Night | Auto | |
| IR-Cut | Support | |
| Min.Illumination | 0.1Lux(Day), 0.01Lux(Night) | 0.5Lux(Day),0.1Lux(Night) 0.05Lux(DSS On) |
| Electronic Shutter | 1/50(1/60)s-1/100,00s | 1/50(1/60)s-1/100,00s DSS(Off, x2, x3, x4) |
| Zoom | 18X optical zoom | 20X optical zoom |
| Focal Length | f=4.7mm(W) ~ 84.6mm(T) | f=4.7mm(W) ~ 94mm(T) |
| Iris | F1.6 ~ F2.8 | F1.6 ~ F3.5 |
| Horizontal Angle of View | 55.2°(W)~ 3.2°(T) | 57.4°(W)~ 3.2°(T) |
| IR-LED | 10 pcs super power LED Arrays | |
| Illuminate Distance | 100m | |
| IR Led synchronous | Support | |
| Video/Audio | ||
| Compression Standard | H.264 | |
| Compression Technology | Dual-stream compression technology | |
| System Structure | Pure hardware compression, watchdog,32M FLASH,128M DDR2; | |
| Video Frames | Real-time PAL 25fps,NTSC 30fps 1-30fps Adjustable | |
| Bitrate | 500~8000Kbps Adjustable | |
| Bitrate Control | CBR/VBR/CVBR | |
| Image | ||
| Resolution | Main Stream:1280X960/720 25fps | Main Stream:1920X1080, 1280X960/720 25fps |
| Sub Stream:D1,VGA,640X360CIF,QCIF | Sub Stream:D1,VGA,640X360,CIF,QCIF | |
| Parameter Settings | Brightness, contrast, chroma saturation,Backlight Control,Mirror | |
| Privacy Mask | Support 4 area can be set | |
| Image Capture | Image quality , capture speed | |
| Time and Title | Transparency, Time position, Time Format, Title Content | |
| Network | ||
| Protocol | RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP | |
| Onvif | Support Onvif 2.0 | |
| User Permission | Multi-user Classification Management | |
| Phone monitoring | Support iPhone and android Mobile phone view | |
| SDK | Provide open SDK | |
| Alarm | Support Motion Detection, Linkage Alarm, Linkage recording, Video Loss Alarm | |
| Interface | ||
| Video Output | 1CH Video output, Support CVBS standard, PAL/NTSC Optional | |
| Network Interface | 1 RJ45 Ethernet interface, 10/100M adaptation | |
| Speed Dome | ||
| Horizontal rotation range | 360° infinite continuous rotation | |
| Tilt rotation range | 0°~90° auto flip 180° | |
| Pan speed | 240°/S | |
| Tilt speed | 180°/S | |
| Cruise group | 5 cruise group | |
| Cruise speed | high,medium,low,Freedom of choice | |
| A-B two point scanning | set freely | |
| Preset | 256 | |
| Auto Flip | Support | |
| Power off memory | Power off memory function, auto wakeup tour function | |
| Other | ||
| Work Environment | -10°C- +60°C;≤95% | |
| Waterproof Criterion | IP66 | |
| Power Supply | DC 12V/5A | |
| Product Size | 360X230X230mm | |
| Package Size | 400X260X260mm | |
| Net Weight | 4.6kg | |
Packaging & Shipping
China Post (10-30 days)
EMS (5-15 working days)
DHL (3-5 working days)
UPS (3-5 working days)
•The most reliable, affordable way of shipping method deponds on your address.
•Online tracking number will be emailed to buyer through email.
•We dont take any responsibility for any custom delay.
Our Services
•All products have been checked and packaged in good condition before dispatch.
•All products have 1 year warranty.
