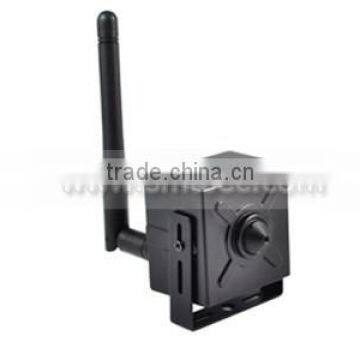

720P WIFI Mini 3.7MM Pinhole lens Hidden IP CCTV camera, H.264, 3518C DSP(SIP-M02W)

Model

SIP-M02W

Camera Type

HD 720P MINI WIFI IP Camera

Camera

Image Sensor

1/4 inch 1.0 Megapixel progressive CMOS sensor

DSP

Hisilicon  3518C DSP 32 dual-core , pure hardware compression

Day/Night

Auto

Min.Illumination

Color 0.6Lux/F1.2,B/W 0.08 Lux/F1.2

Electronic Shutter

1/50(1/60)s-1/100,000s

Lens

Standard 3.7mm Pinhole Lens

Lens Mount

M12X0.5

Video/Audio

Compression Standard

H.264

Compression Technology

Dual-stream compression technology

System Structure

Pure hardware compression, watchdog,32M FLASH,128M DDR2;

Video Frames

Real-time PAL 25fps,NTSC 30fps   1-30fps Adjustable

Bitrate

100~6000Kbps Adjustable

Bitrate Control

CBR/VBR/CVBR


Resolution

Main Stream:1280X720P 25fps

Sub Stream:D1,VGA,CIF,QCIF

Parameter Settings

Brightness, contrast, chroma saturation,Backlight Control,Mirror

Privacy Mask

Support 4 area can be set

Image Capture

Image quality , capture speed

Time and Title

Transparency, Time position, Time Format, Title Content

Network

Protocol

RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP

Onvif

Support Onvif

User Permission

Multi-user Classification Management

Phone monitoring

Support iPhone and android Mobile phone view

SDK

 Provide open SDK

Alarm

Support Motion Detection, Linkage Alarm, Linkage recording, Video Loss Alarm

WIFI

WIFI 802.11bgn

Interface

Network Interface

1 RJ45 Ethernet interface, 10/100M adaptation

Other

Work Environment

-10°C- +60°C;≤95%

Power Supply

DC 12V

Product Size

36X36X20mm

Package Size

65x100x55mm

Net Weight

0.4KG
