Corrugation Metal Roofing Sheet Making Machine
- Dalian
You May Like
-
Corrugated Metal Roof Sheet Making Machine
-
LS-1000-860Steel Colored Flat Sheet Roll Forming Machine
-
Flat Sheet Leveling Slitting and Cutting Roll Forming Machine
-
2015 Hot Sale ! Steel Beam Rolling Machine Made in China
-
MBM240( 914-610) ARCH STEEL ROOF BUILDING MACHINE/LONGSHUN ROOF ROLL FORMING MACHINE
-
Hot Sale Automatic Hydraulic Roof Glazed Tile Making Machine LS-828-28
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Other, roof/door/wall | |
| Production Capacity | 0-15 m/min | Place of Origin | Liaoning, China | |
| Brand Name | LSMBM | Model Number | 1250-1100 | |
| Power(W) | 8 KW | Voltage | AC380V, 50HZ, 3phase | |
| Dimension(L*W*H) | 8*1.2*1.5m | Weight | 7 tons | |
| Certification | CE | Warranty | 18 month | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

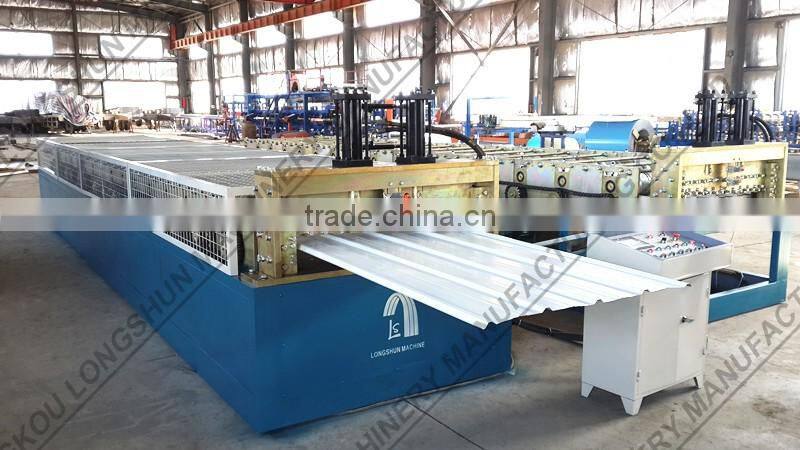

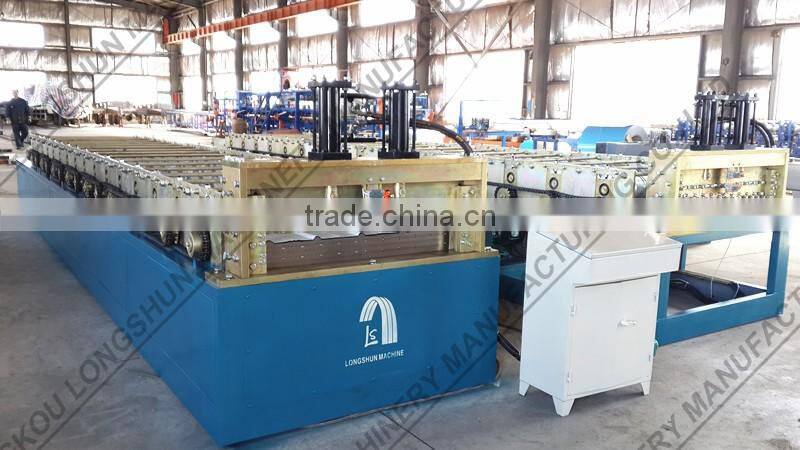

Corrugation Metal roofing sheet making machine
Main Parts
* Manual Decioler
* Roll Forming System
* Hydraulic Cutting
* Hydraulic Station
* PLC Control System
* Run-out Table

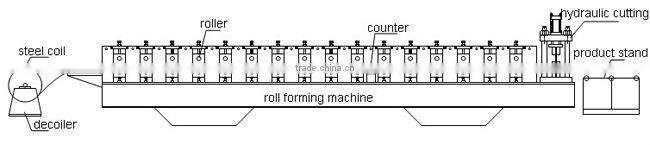

Working :
Decoiler--- Feeding---- Roll Forming ---- Cutting ---- Run out table
Parameters :
No. | Spcification | |
1 | suitable material | Color Steel plate, galvanized sheet |
2 | Feeding width | 1000mm//1200mm/1250mm or customized |
3 | Rows of rollers | 16rows |
4 | Main power | 4kw |
5 | Hydraulic power | 4kw |
6 | Thickness of raw material | 0.3-1.0mm |
7 | Transportation system | Chain transportation |
8 | Thickness of chain | 1.2 inches |
9 | Effective Width | Customized |
10 | Out diameter of shaft | 80mm (solid shaft) |
11 | Material of shaft | 45# steel forged by the Carbon at high temperature |
12 | Roller material | 40Cr steel polished and coated with chrome HRC55-60° |
13 | Shear mould | Cr12 |
14 | Voltage | 380V 50Hz/60Hz 3phases |
15 | Control system | PLC Frequency Control System with touch screen |
16 | Toal Weight | 7 tons |
Machine types
Types | Input Width | Output width | Plate Thickness |
LS-1250-1100 | 1250mm | 1100mm | 0.4-0.8mm |
LS-1200-1000 | 1200mm | 1000mm | 0.4-0.8mm |
LS-1000-860 | 1000mm | 860mm | 0.4-0.8mm |
LS-1000-840 | 1000mm | 840mm | 0.4-0.8mm |
LS-1000-828 | 1000mm | 828mm | 0.4-0.8mm |
LS-1000-828-25 | 1000mm | 828mm | 0.4-0.8mm |
LS-1000-800-35 | 1000mm | 800mm | 0.4-0.8mm |
LS-1000-800-33 | 1000mm | 800mm | 0.4-0.8mm |
LS-1000-820 | 1000mm | 820mm | 0.4-0.8mm |
