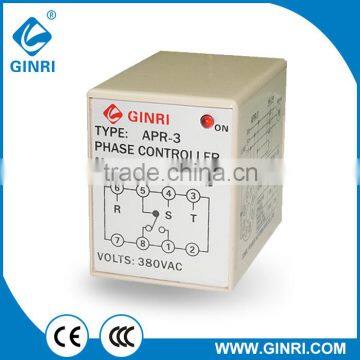

APR-3 Phase Failure/ Phase Loss Relay
- Ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | GINRI | |
| Model Number | APR-3/APR-4 | Theory | Voltage Relay | |
| Usage | Protective | Size | Miniature | |
| Protect Feature | Sealed | Contact Load | High Power |
Product Description
Three-phase Controller
APR-3
♦ Features
-- Three-phase monitoring of phase sequence, phase loss
-- Powered by the measuring circuit
-- 1 C/O contact
-- LEDs for status indication
♦ Protective Functions
-- Phase sequence
-- Phase loss
♦ Typical Applications
• Pumps • Fans
• Blowers • Motors
• Compressors
♦ Approvals
• CE • CCC
♦ Technical data
Type | APR-3/APR-4 |
Input circuit = Measuring circuit | R,S,T |
Rated voltage | 220VAC,380VAC ,50/60Hz |
Monitoring functions | phase loss, phase sequence |
Indicators | Power ON |
Output contacts | 1 C/O |
Contact capacity | 3A ,250VAC |
Dimensions (H x W x D) | 50×40×57.5mm |
Mounting | plug-in |
* Please contact us for further information.
