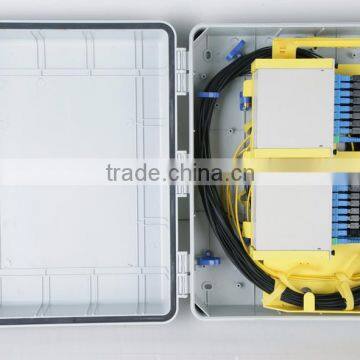

FTTH/FTTX ABS material cable terminal box

FTTH/FTTX ABS material cable terminal box

Description,

Fiber optic distribution box is used for the distribution connection of cabla and fiber optic communication

devices. It leads out optic signal from drop cable to pigtails by splicing in the box. It can be used for protective

connection of cable and layout pigtails, and fiber optic termination of fiber access network. It is suitable for

outdoor, corridor, weak current silo or connection points of vilas, for the splicing, storage and distribution of

local cable or drop cable, with capacity of 24 cores or 48 cores.

Features

1. The box is made of imported flame retardant material, with aging resistant and ultra violet resistant characters

2. Sealing with pressed strip, waterproof and dustproof with IP65

3. Special screw and key for its door lock; can be installed on wall or mounted on pole

4. Spare pigtails and drop cable can be save in storage part, convenience for maintenance

5. Special lock device for outlet of drop cable

6. Bilayer structure, bottom for splicing and upper layer for splitting and distribution

7. There are 24-48 positions for adapters of FC, SC or ST

8. Maximum 2 pieces of splice tray for satisfying of connection

Technical Parameter

Working temperature: -20°C~+60°C

Relative humidity: ≤90%(+30℃)

Atmosphere pressure:62-106Kpa

Insertion Loss:lL ≤0.3dB(PC), 1L ≤0.3dB(APC)

Return Loss: PL≥40dB(PC), RL≥50dB(UPC), RL≥60dB(APC)

Accessories

Splice cassette and cable management tools, installation nuts and bolts, heat shrinking tube, rubber seal, hose clamp
