CHINA Aluminium Foil Container Production Line CTJF-45T

CHINA aluminium foil container production line CTJF-45T

Aluminium foil container making machine CTJF-45T can produce aluminium foil containers, dishes and trays. The working speed of production line CTJF-45T is 40-70 pcs/min, and its speed depends on container’s size and complexity.

The coil can be supported by 3” or 6” expansion shaft according to deferent’s requirement. The And lubricate oil tank is included in the feeder which could lubricate automatically.

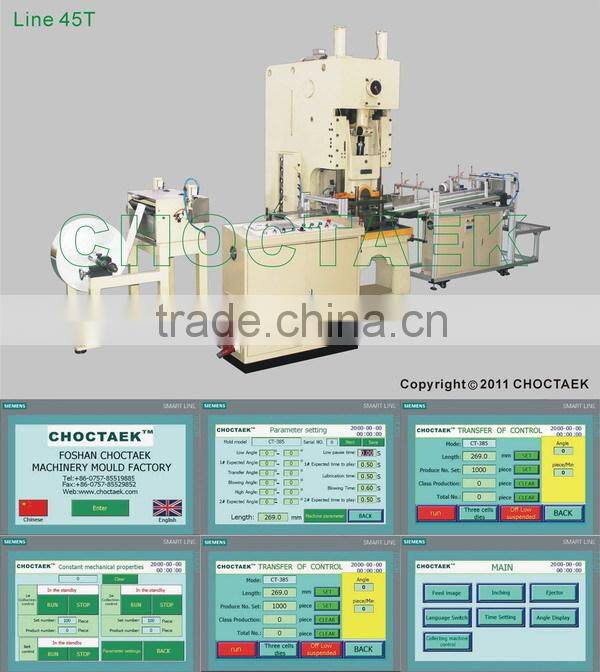

The operating control panel is equipped with a touch screen (SIEMENS) allowing quick set up of machine parameter and visualization of production flow.

A control panel is installed with PLC with memorial function, which can memorize all parameters. And it will save time for setting up of moulds.

The height of the feeding system is adjustable to match the strip height of the mould currently in use of the press. The length controller can control the feeding step and speed accurately.

A strong mould lifter is equipped in machine, so it is easy and convenient to load and unload a new mould.

The machine is equipped with two Compressed air tanks. Then pneumatic control is easily accessible during operation of press.

The press can be equipped with moulds for both winkle-wall and smooth-wall container production.

Aluminium foil container production line CTJF-45T is composed of the followings:

1. Decoiler( with an auto-lubricator)

2. Electrical control panel

3. Foil feeder

4. 45 ton pneumatic press

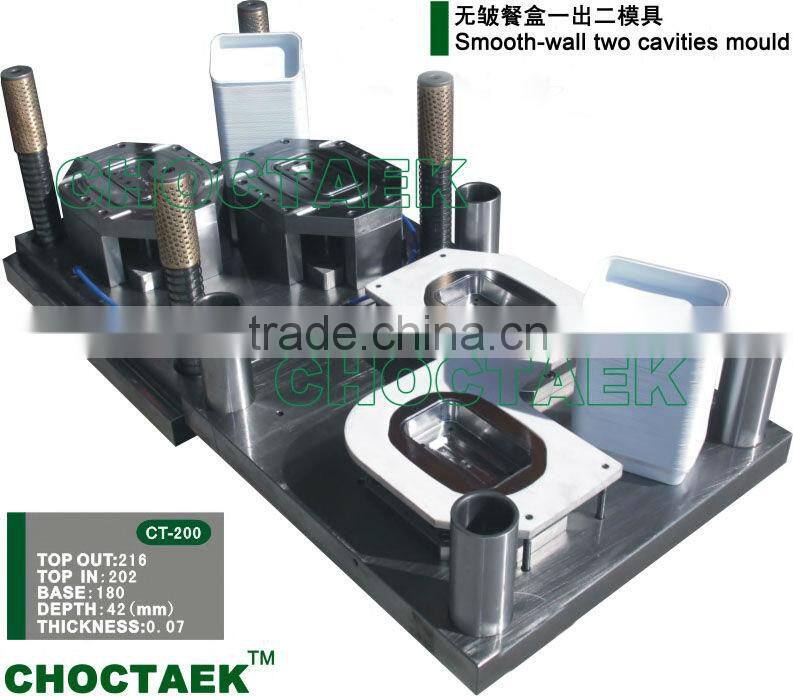

5. Aluminium foil container mould

6. Container collector(semi-auto or full-auto)

7. Collection desk

Main Features:

1. This full production line work automatically. Worker control and regulate this production line through electric control panel, including the air-pressure and electricty.

2. The Max. width of decoiler is about 550mm. The Max. Diameter of foil is 650mm.

3. There is an auto-lubricator on the feeder, which can lubricate aluminium foil automatically.

4. The foil feeder provides the supply of right quantity and length of aluminium foil, and it is controlled by computer, which assure a high- precision step.

5. The press can be equipped with single cavity or multi-cavities moulds for producing wrinkle-wall or smooth-wall containers. It is equipped with a mould liffter which can lift and low the mould automatically when change a mould.

6. We can design and manufacture different machines on different customers’ request.

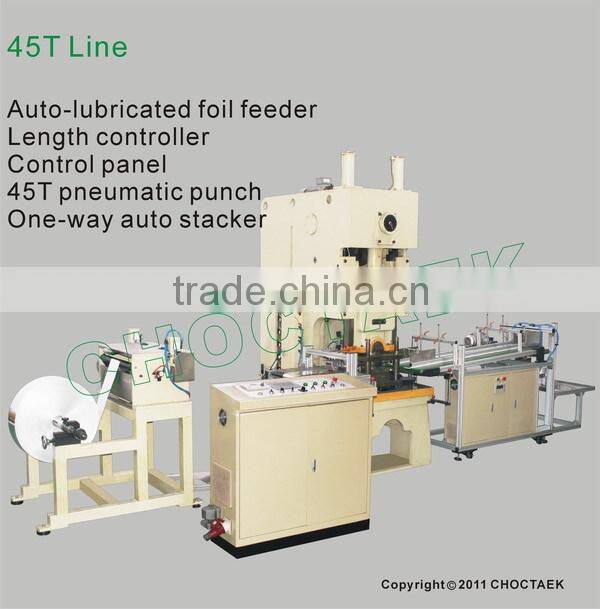

Components of production line:

1. Auto-lubricated Foil Feeder

2. Length Controller

3. Seimens Control Panel

4. Pneumatic Press

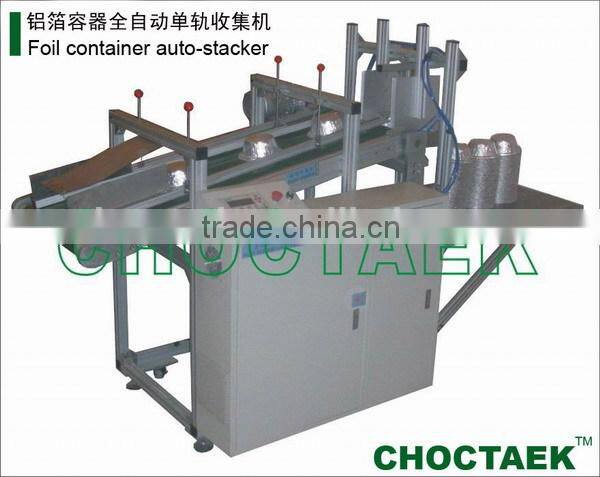

5. Automatic Stacker

1. Easy operating and controling

2. High quality and efficiency

3. Good after sales service

4. Competitive price

1. Engineers available to service machinery overseas.

2. We can provide intermship service and help you to train

operator and machine.

3. CHOCTAEK offers a constant technical assistance to support the user, taking care of installation phases, tests and continuous maintenance assistance of the machines.

Since 2003,CHOCTAEK has been specialized in producing aluminum foil container mould, aluminum foil container production lines and other relatives machines. We are keep researching and developing machines and moulds to fulfill the integration and full-automation of aluminum foil container production. Till March on 2013, we have developed and produced 600 aluminum foil container moulds which are in different sizes and shapes.

We have exported machines and moulds to more than 30 countries and offer service to 80 companies. We continuously offer technical support and consulting service to new customers.

CHOCTAEK always pay attention on your requirement and concern your company's development. We make every effort to improve our technology & quality, to ensure to offer you product in best quality and technical service. We requite your expectation and support in the way of upgrading technology continuously. CHOCTAEK will satisfy your specific demand.
