Dexi Metal Corrugated Metal Pipe Machine
- Shanghai
- T/T
You May Like
-
Dexi Metal Corrugated Culvert Pipe Making Machine
-
W27YPC-325 Heavy Duty Shipyard Tube Bender
-
Dexi W24YPC-45 CNC Hydraulic Profile Section Pipe Bender
-
ISO SGS Hydraulic Flat Bar Bending and Rolling Machine(W24YPC-45)
-
W24YPC-45 Tube Pipe Iron Angle Bending Machine Quality Choice
-
HIGH TECHNOLOGY Detsch-89-CNC 2s Full Autoamtic Hydraulic Tube Bender
Product Details
| Condition | New | Place of Origin | Anhui, China | |
| Brand Name | Dexi | Model Number | DXBWG1500*8 | |
| Machine Type | Roll Forming Machine | Raw Material | Sheet / Plate Rolling | |
| Material / Metal Processed | Carbon Steel | Power | Hydraulic | |
| Automation | Automatic | Certification | Other, CE,ISO9001:2008;SGS | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications

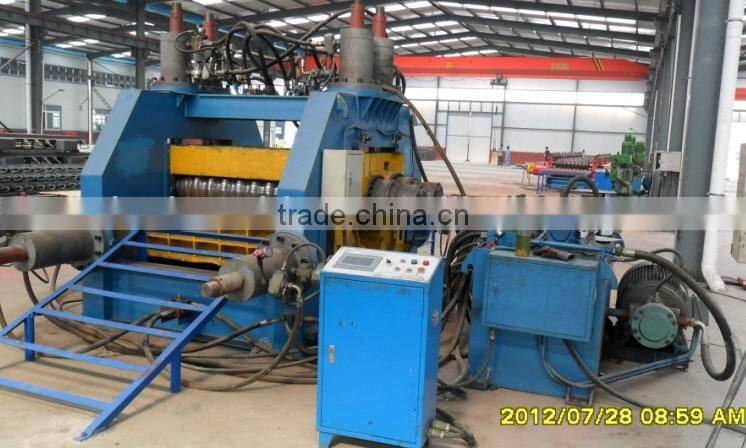

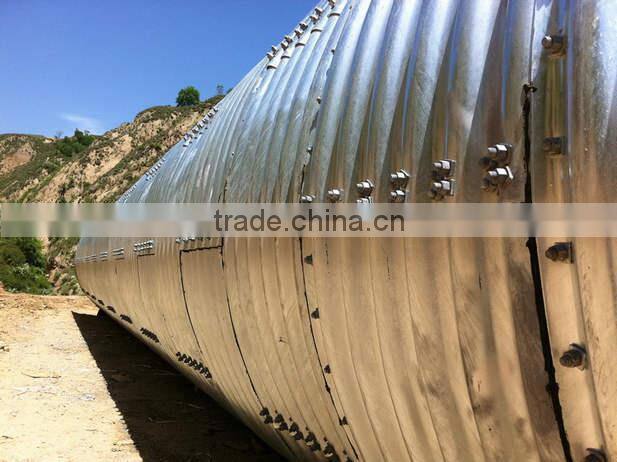

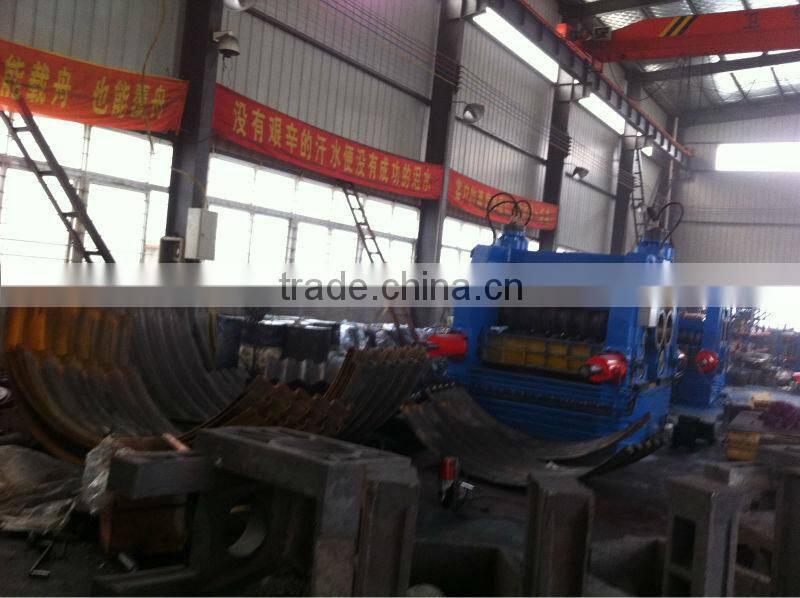

The Dexi Metal Corrugated Culvert Pipe Making Machine,max roll sheet thickness 8mm,60 days deliver, 4 ton; T/T,L/C; FOB,CIF,CNFA. Metal corrugated culvert pipe making machine features:
1.The machine body is quenching,tempering and annealing processed,steady,strong.

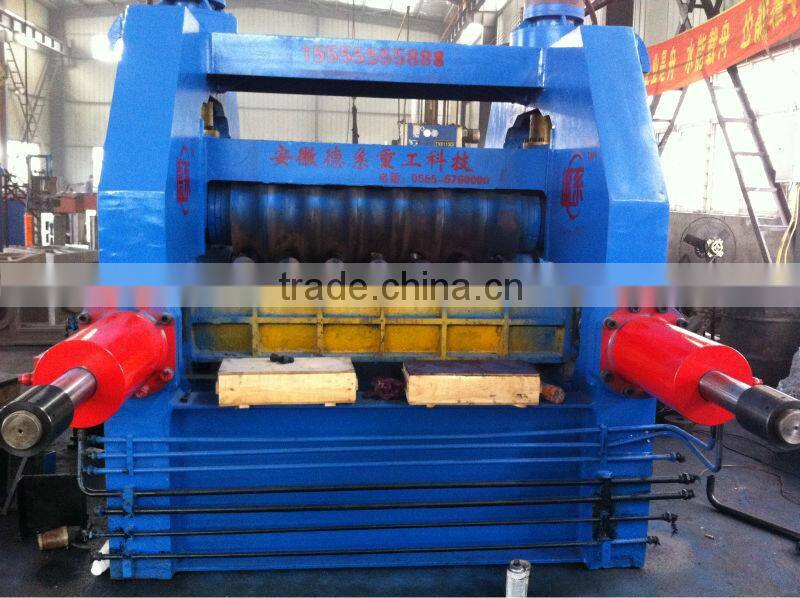

2.It adopts press rolling technology by up rollers and down rollers,gradually roll the metal sheet to be arc shape.
The shaft of rollers is corrugated shape. Special design of bend dies makes the length of sheet ends shorter.
3. The four rollers are driven by four hydraulic motors. Germany FAG bearing, drive steadily, drive steadily,heavy duty and low loss.
4. Driven oil pump adopts double piston rod structure, high positioning accuracy.
5. The corrugated dies material is 40Cr,processed by induction quenching, longer life!
6. 10.4 inch touch screen and PLC control system, high working efficiency and higher rolling accuracy!
7.Safety guard system:
when emergency happens, operator can easily stop the equipment and shutdown the system as to
ensure the security of equipment and working staff.
NO. | Parameter Name | Valud | Unit | |
1 | Max roll corrugated sheet specifications (corrugate height,sheet width,wall thickness) | 50*1500*6 | mm | |
2 | Max torque | 82000 | N·M | |
3 | Min bend radius | 750 | mm | |
4 | Dia of end dies | 460 | mm | |
5 | Synchronous accuracy of up&down rollers | ±0.2 | mm | |
6 | Bend speed | 4-10 | N/min | |
7 | Electric motor &oil pump | Electric motor | 55 | KW |
Max pressure | 31.5 | Mpa | ||
Max working pressure | 25 | Mpa | ||
Flowing speed | 160 | L/min | ||
8 | Size | 4.5*3.6*2.8 mm | ||
Machine configuration:
Item | Supplier |
Magnetic exchange valve | Japan Yuken |
Spillover Valve | Japan Yuken |
PLC(Programmable logic controller) | Taiwan Delta |
Touch Screen | Taiwan Delta |
Electrical components | Schneider |
Motor | Maanshan Shenghui |
Transmission bearing | Germany FAG |
Oil pump | Guangye |
Machine steel plate | Ma’Steel |
Remarks | Customer can choose machine parts manufacturer as they like. This table is for reference. |
