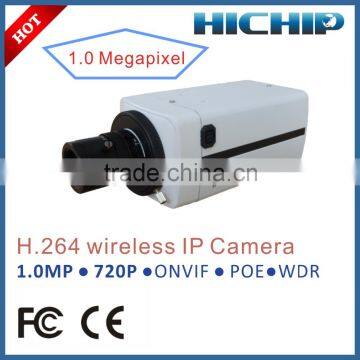

Hichip ONVIF 1.0 Megapixel POE IP Camera with alarm i/o

Model

HX4001S-WDR

operating system

embedded Linux

main chipset

Hi3518

video compression

H.264 Main profile and Baseline profile adjustable

Audio compression

G.726/G.711

sensor

1/2.7” 1.0 megapixel progressive CMOS sensor

video parameter

Brightness, Contrast, Saturation, Shutter, Flip, Mirror are adjustable

CMOS performance

Support Auto White Balance(AWB), Auto Gain Control(AGC), Auto Backlight compensation(BLC), and so on

Minimum illumination

0.01Lux

WDR range

120dB

Lens

4-9mm

video resolution

first stream: 720P(1280*720) and Q720P(640*352) are optional

second stream: Q720(640*352) and QQ720P(320*176) are optional

third stream: QQ720P (320*176)

JPEG code rate: Q720P(640*352) and QQ720P(320*176) are optional (for mobile phone viewing)

video frame rate

first stream: PAL: 1-25fps NTSC: 1-30fps

second stream: PAL: 1-25fps NTSC: 1-30fps

third stream: PAL: 1-25fps NTSC: 1-30fps

video compression Bitrate

32Kbits/s – 6Mbits/s adjustable

Audio Input

Volume 1-100 adjustable; default is 31 for microphone input; default is 15 for linear input

Audio Output

Volume 1-100 adjustable; default is 79

Audio format

G.726/G.711, default is G.726

Alarm I/O

1CH Input(normally open/normally close adjustable), 1CH Output, 120V AC 2A / 24V DC 2A

Motion Detection

4 independent area can be set (sensitivity 1-100 adjustable)

Alarm linkage

sending pictures to named mailbox; upload pictures and video to FTP server; pictures and videos to SD Card

control port

1CH RS485

Network protocal

TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP, and so on

Access protocal

support ONVIF, and support authority verify(defalut close authority verify)

storage

Max 32G SD Card, supporting Timer record storage

network port

10Base-T/100Base-TX Ethernet port

Wifi 802.11b/g/n wireless network (optional)

power supply

DC 12V 1A; support POE (optional)

Power consumption

3W

Size

115mmx64mmx58mm

Operating temperature

-20 ~ +70 ℃

Operating humidity

10 ~ 95%RH
