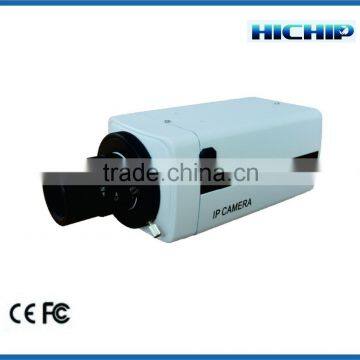

Hichip HD 1.0 Megapixel P2P POE IP Camera with alarm I/O

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Yantian
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Hichip or OEM
Model Number	HX4001SP-WDR	Type	Digital Camera
Style	Box Camera	Sensor	Other, CMOS, 1/2.7" 1.0 Megapixel WDR low illumination progressive CMOS sensor
Technology	NetWork	Special Features	Other, Indoor

Product Description

Hichip HD 1.0 Megapixel P2P POE IP Camera with alarm I/O

Features:

1/2.7" 1.0 Megapixel WDR low illumination progressive CMOS sensor
H.264 three streams compression
Resolution: 720P(1280*720), 25fps (PAL)/30fps (NTSC)
1CH Audio input (G.711/G.726), Two way voice talkback
1CH Alarm input, 1CH Alarm output
one RS485 port, one RJ45 10/100M Ethernet port
Support Mobile phone View
Support SD Card record and capture; support motion detection, Email, FTP
Support ONVIF2.0
Support POE

Technical Parameters:

Model	HX4001S-WDR
operating system	embedded Linux
main chipset	Hi3518
video compression	H.264 Main profile and Baseline profile adjustable
Audio compression	G.726/G.711
sensor	1/2.7” 1.0 megapixel progressive CMOS sensor
video parameter	Brightness, Contrast, Saturation, Shutter, Flip, Mirror are adjustable
CMOS performance	Support Auto White Balance(AWB), Auto Gain Control(AGC), Auto Backlight compensation(BLC), and so on
Minimum illumination	0.01Lux
WDR range	120dB
Lens	4-9mm
video resolution	first stream: 720P(1280720) and Q720P(640352) are optional
	second stream: Q720(640352) and QQ720P(320176) are optional
	third stream: QQ720P (320*176)
	JPEG code rate: Q720P(640352) and QQ720P(320176) are optional (for mobile phone viewing)
video frame rate	first stream: PAL: 1-25fps NTSC: 1-30fps
	second stream: PAL: 1-25fps NTSC: 1-30fps
	third stream: PAL: 1-25fps NTSC: 1-30fps
video compression Bitrate	32Kbits/s – 6Mbits/s adjustable
Audio Input	Volume 1-100 adjustable; default is 31 for microphone input; default is 15 for linear input
Audio Output	Volume 1-100 adjustable; default is 79
Audio format	G.726/G.711, default is G.726
Alarm I/O	1CH Input(normally open/normally close adjustable), 1CH Output, 120V AC 2A / 24V DC 2A
Motion Detection	4 independent area can be set (sensitivity 1-100 adjustable)
Alarm linkage	sending pictures to named mailbox; upload pictures and video to FTP server; pictures and videos to SD Card
control port	1CH RS485
Network protocal	TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP, and so on
Access protocal	support ONVIF, and support authority verify(defalut close authority verify)
storage	Max 32G SD Card, supporting Timer record storage
network port	10Base-T/100Base-TX Ethernet port
network port	Wifi 802.11b/g/n wireless network (optional)
power supply	DC 12V 1A; support POE (optional)
Power consumption	3W
Size	115mmx64mmx58mm
Operating temperature	-20 ~ +70 ℃
Operating humidity	10 ~ 95%RH

Package:

Client Software:

P2P Client:

Two Way Audio:

Support Multi-platform viewing:

Payment & shipping:

OEM and ODM are acceptable.

Any interest, freely send an inquiry to us!
