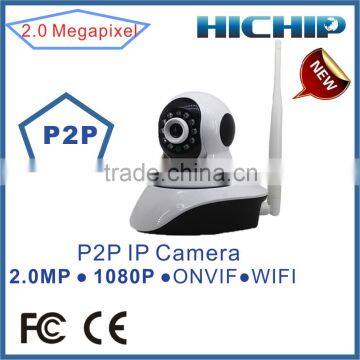

1080P IP Camera 2.0MP WiFi Wireless IP Security Camera Full HD Plug Play Home Surveillance camera Pan Tilt with Two-Way Audio

HX4028SW-1080

Camera

Operating system

embedded Linux

Processor

Hi3516C

Image sensor

1/2.7” 2.0 megapixel progressive CMOS sensor

Minimum illumination

0.5Lux

Lens

3.6mm

IR Distance

10pcs IR LED, 10m night vision

Compression standard

Video compression

H.264 Main profile and Baseline profile adjustable

Audio compression

G.726/G.711 (Default is G.711)

Compression transmission rate

32Kbps-8192Kbps, can self-defined, default is 6144Kbps


video resolution

first stream: 1080P(1920*1080) and 720P(1280*720) optional

sub stream: Q720(640*352) and QQ720P(320*176) optional

Three Stream:QQ720P(320*176)

JPEG code rate: Q720P(640*352) and QQ720P(320*176) (for mobile phone viewing)

Video frame rate

25fps(50HZ), 25fps(60HZ)

OSD

support OSD name and Time OSD (on and off available)

Image setting

Brightness, Contrast, Saturation, Exposure, Flip and Mirror are adjustable

Video mask

can set four mask area, color of mask area can be set

Function

Storage

Max 64G TF Card, support timing record storage

Motion detection

can set 4 independent detection area (sensitivity is 1-100 adjustable)

Rotation

horizontal:270° Vertical:90° support cruise up and down, left and right

Preset

1-8 preset, alarm linkage preset

Alarm linkage

sending pictures to named mailbox; upload pictures to FTP server

Network protocol

TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP, and so on

Access protocol

support ONVIF, support purview check(default close purview check)

Port

Audio Input

built-in Microphone, 1CH Audio Input, support connect external MIC/pickup

Audio Output

built-in speaker, 1CH Audio output, support connect external microphone or amplifier

Network port

10Base-T/100Base-TX Ethernet interface

WIFI 802.11b/g/n

common specification

Power supply

DC 5V 2A

Power consumption

4W

Size

105mm X 120mm X 130mm

Operating temperature

0 ~ +55 ℃

Operating humidity

10 ~ 95%RH
