Dome Camera Wireless 720P CMOS Mini Security Camera support Onvif 2.0

Camera

Operating system

embedded Linux

Main chipset

Hi3518E

Image sensor

1/4” 1.0 megapixel progressive CMOS sensor

Minimum illumination

0.3Lux

Lens

3.6mm

IR

11pcs Φ5 IR LED, 8m IR distance

Compression standard

Video compression

H.264 Main profile and Baseline profile adjustable

Audio compression

G.726/G.711 (Default is G.726)

Compression transmission rate

64Kbps-6144Kbps


video resolution

first stream: 720P(1280*720) and Q720P(640*352) optional

sub stream: Q720(640*352) and QQ720P(320*176) optional

JPEG code rate: Q720P(640*352) and QQ720P(320*176) optional (for mobile phone viewing)

Video frame rate

20fps(50HZ), 20fps(60HZ)

OSD

support OSD name and Time OSD (on and off available)

Image setting

Brightness, Contrast, Saturation, Exposure, Flip and Mirror are adjustable

Video Mask

Can set four mask regions, color also can be set

Function

Storage

Max 32G TF Card, supporting Timer record storage

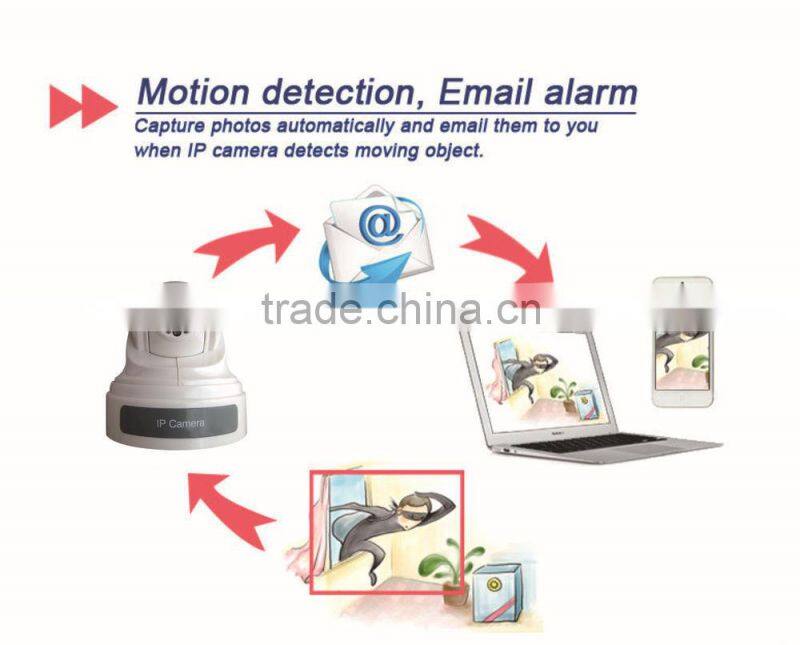

Motion detection

can set 4 independent detection area (sensitivity is 1-100 adjustable)

Alarm linkage

sending pictures to named mailbox; upload pictures and video to FTP server; pictures and videos to TF Card

Network protocol

TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP, and so on

Access protocol

support ONVIF, support purview check(default purview check is closed)

Port

Audio Input

1CH Audio Input, built-in Microphone

Audio Output

1CH Audio output, built-in speaker

Network port

10Base-T/100Base-TX Ethernet port

WIFI 802.11b/g/n wireless network

common specification

Power supply

DC 5V 2A

Max Power consumption

4W

Size

105mmx120mmx130mm

Operating temperature

0 ~ +55 ℃

Operating humidity

10 ~ 95%RH
