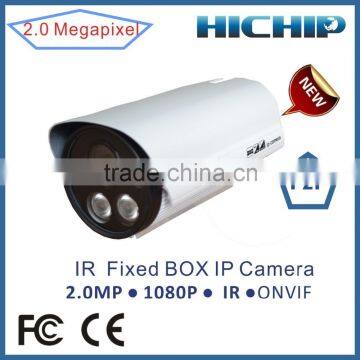

Hichip Outdoor 1080P Megapixel IP Camera With I/o Alarm Port

Camera

Model

HX4015S-1080

Operating system

embedded Linux

Processor

Hi3516C

Image sensor

1/2.7” 2 megapixel progressive CMOS sensor

Minimum illumination

0.1Lux

Lens

8mm

Distance

30m

 Compression standard

Video compression

H.264 Main profile and Baseline profile adjustable

Audio compression

G.726/G.711 (Default is G.711)

Video compression

32Kbps-8Mbps, can self-defined, default is 6144Kbps


video resolution

first stream: 1080P(1920*1080) and 720P(1280*720) optional

sub stream: Q720(640*352) and QQ720P(320*176) optional

Three Stream:QQ720P(320*176)

JPEG code rate: Q720P(640*352) and QQ720P(320*176) (for mobile phone viewing)

Video frame rate

25fps(50HZ), 25fps(60HZ)

OSD

support OSD name and Time OSD (on and off available)

Image setting

Brightness, Contrast, Saturation, Exposure, Flip and Mirror are adjustable

  Function

Storage

Max 32G SD Card

Motion detection

can set 4 independent detection area (sensitivity is 1-100 adjustable)

Alarm linkage

sending pictures to named mailbox; upload pictures and video to FTP server; pictures and videos to SD Card

Network protocal

TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP, and so on

Access protocal

support ONVIF, support purview check(default close purview check)

Port

Audio Input

built-in Microphone, 1CH Audio Input, support connect external MIC/pickup

Audio Output

built-in speaker, 1CH Audio output, support connect external microphone or amplifier

Network port

10Base-T/100Base-TX Ethernet interface

WIFI 802.11b/g/n wireless network

 common specification

Power supply

DC 12V 1A

Power consumption

5.5W

Size

180mmx103mmx93mm

Operating temperature

-20 ~ +55 ℃

Operating humidity

10 ~ 95%RH
