Home > Products > HC Thermal pad > coustomized soft thermal conductive silicone pad for cooling
coustomized soft thermal conductive silicone pad for cooling
- SHENZHEN
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | KUAYUE | |
| Model Number | HC |
Product Description
HCseries is an high sticky thermal silicone pad which mainly for heat transfer or insulating between theheat-generating electonic components or heatsinks or product out covings without fastening devices.
Features:
Thermal conductivity is 1.0 w/m-k
High thermal performance , high reliability
High compressibility, soft and flexible
Natural viscosity ,do not need surface adhesive
Meet the environmental requirements of ROHS and UL
Application:
Between circuit board and heat sink
Filing the interface between IC and heat sink or housing
Filling the interface between IC and heat sink material
Between Aluminum PCB and housing
Product parameters :
Package Type: High quality polybags and carton or according to customers' requirements
Package Measurements: 430X230X120 CM
Items per Carton: 5000 Pieces / Carton
Dongguan Kuayue Electronic Co., Ltd is a a manufacturer of thermal interface materials. We specialize in research & development, production and sale of thermal conductivity materials
| test item | test method | unit | test value |
| color | Visual | -- | black |
| material | -- | -- | natural graphite |
| thickness | ASTMD374 | mm | 0.05 ~ 1.0 |
| density | ASTMD792 | g/cm3 | 1.5 |
| continous use temp | EN344 | °c | -40 ~140 |
| tensile range | ASTMF-152 | 4900kpa | 715 |
| hardness | ASTMD2240 | shore A | 80 |
| flame rating | UL94 | -- | V0 |
| thermal conductivity(vertical direction) | ASTMD5470 | w/mk | 10 |
| test item | test value | unit | test method |
| base materials | fiberglass | -- | -- |
| color | white | -- | visual |
| thickness | 0.1 to 0.5 | mm | ASTM D 374 |
| retention force | > 48 | 1kg(inch/25°c) | PSTC-7 |
| breakdown voltage | 2 | kv/mm | ASTM D149 |
| initial adhesion | 0.6 | kg/inch | -- |
| thermal conductivity | 1.0 | w/m.k | ASTM E1461-1 |
| continuous use temp | -20 to 120 | °c | EN344 |
| temperature range | 120 to 140 | °c | -- |

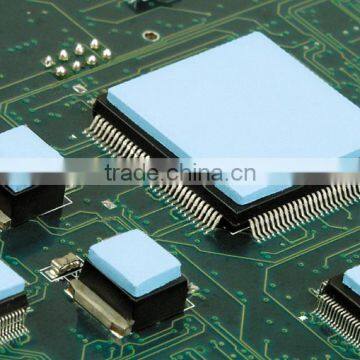

Product Picture:
