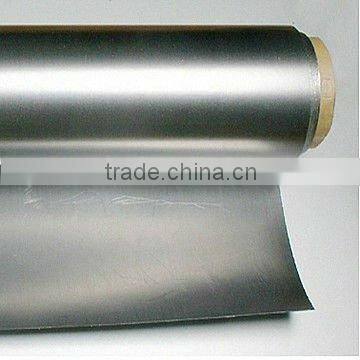

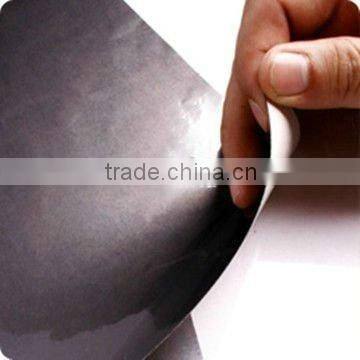

Expanded Thermal Graphite Sheets
- shenzhen
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | China | Brand Name | KUAYUE | |
| Model Number | Various | Type | Reinforced Sheet | |
| Application | IC ,CPU,MOS,LED,eat sink,D-TV,ptop | Thickness | 0.2m-1.0mm | |
| Grade | Industrial Grade | C Content (%) | 0.9 to 2.0g/cm3 |
Product Description
Specifications
Expanded Thermal Graphite Sheets1.Thickness: 0.2mm to 1.5mm
2.Natural graphite
3.Roll type
4.Industrial diret price
Expanded Thermal Graphite Sheets
Description
The expanded thermal graphite sheets is a kind of totally new thermal & radiating material, heat conducting evenly
along vertical & horizontal direction, shielding with heat and component while improving the performance
of the consumer electronic products.
Key property
Ultra-high thermal conductive performance
Easy to operate
Low thermal resistance
Light weight
Application
IC ; CPU; MOS; LED; Heat sink; LCD-TV; Laptop; Communication equipment;
Wireless switch; DVD; Hand-held device; Camera/digital camera; Mobile phone
Physical properties
Test item | Test method | Unit | GSM Test value | GSB Test value | GS+PET Test value |
Color | Visual | Black | Black | Black | |
Material | Natural graphite | Natural graphite | Natural graphite | ||
Thickness | ASTM D374 | Mm | 0.1 to 1.0 | 0.2 to 1.0 | 0.2 to 1.0 |
Specific Gravity | ASTM D792 | g/cc | 1.5 | 0.9 to 2.0 | 1.5 to 1.8 |
Continuous Use Temp | EN344 | -40 to +400 | -40 to +400 | -40 to +400 | |
Tensile Strength | ASTM F-152 | kpa | 715 | 715 | 715 |
Hardness | ASTM D2240 | Shore A | 80 | 80 | >80 |
Flame Rating | UL 94 | V-0 | V-0 | V-0 | |
Conductivity (vertical direction) | ASTM D5470 | w/m-k | 20 | 15 | 5 |
Conductivity (horizontal direction) | ASTM D5470 | w/m-k | 300 to 500 | 300 to 500 | 300 to 500 |
Configurations available: Specific size could be provided according to your requirements.
