High Automation Plywood Making Machine/glue Spreader,glue Spreader/gumming Machine

High automation plywood making machine/glue

spreader,glue spreader/gumming machine

SPECIFICATION:

1. Wood machine manufacturer in China for 20 years glue applicator.

2. High quality & competitive price sizing machine

3. Technician oversea available glue applicator.

PRODUCT DESCRIPTION:

Plywood glue spreader machine is one of the main equipments of the plywood production, it is will be after modulation good adhesive evenly coated to the surface veneer of a mechanical equipment.

According to the number of plywood glue roller coating machine, can be classified into double roller coating machine, three roller coating machine and four roller coating machine three forms.

Process performance is poor due to the double roller coating machine, glue quantity is not easy to control, easy to crush veneer and low production efficiency of defects, so use more glue to glue roller.

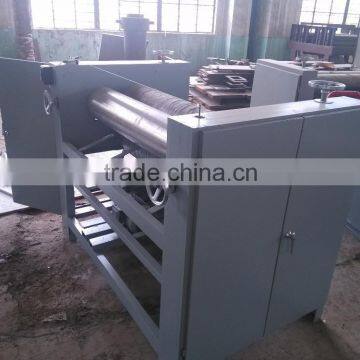

Plywood glue spreader machine consists of frame, glue roller, plastic bucket, retarding mechanism, adjusting device,etc.

1. Dia. & number of coating roller:245mmx2PCS
2. Dia. & number of squeeze rolle:219X2PCS
3. glue roller length:1450mm
4. reduction gears:250#
5. machine size:L2200mm*W1100mmxH1260mm
6. total power:3kw

STRUCTURE:

The machine consists of two sizing rolls , paper  leading roll , olives rolls, glue-in pipe, scraper , glue- stopper device and pneumatic compression devices and other components .Above the sizing rolls, there is glue-in pipe, to provide glue on the two rolls , the amount of glue into the pipe can be controlled by intake valve . There are glue-stoppers on both end of sizing rolls, and its pressure can be adjusted, to prevent the glue flow away to the sides of the roll surface , keeping the excess glue flowing in glue holder behind the glue applicator roller . Scraper device is used for picking up and down paper ,usually we should lift the blade to extend the life of sizing rollers .

Why Choose Us:

1.Export 20 countries, such as Romania, Italy, Argentina, Turkey, Iran, Mexico, India etc.

2.More machine equipment more advanced, more precise.

3.Best price, high quality and nice service.

4.ISO Certificate.

5.100% quality testing before shippment.
