Filling and Sealing Machine
- shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | chenyu | |
| Model Number | CGF |
Product Description
Specifications
filling and sealing machine1.Fully automatic
2.spped:2000-40000bph
nology from Taiwan and Germany
4.PLC control
filling and sealing machine
filling and sealing machine is one of our company's main products,Our company have more than 15 years in many kinds of liquid filling line.

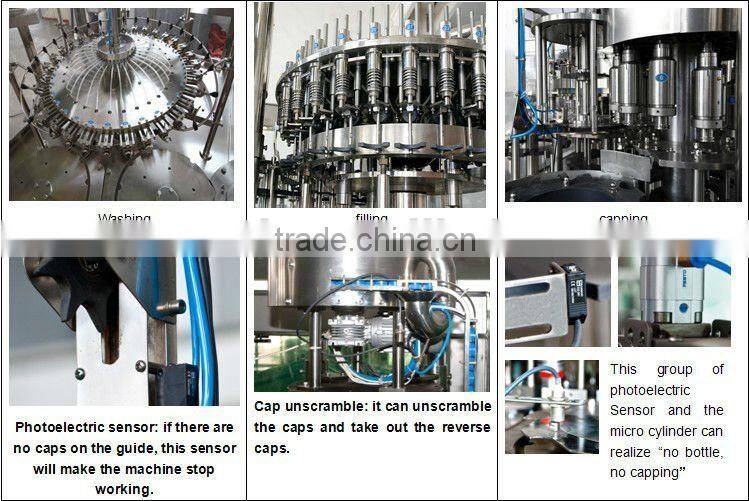

this machine is a 3 in 1 machine,include washing the bottle,filling water into the bottles and then capping. if you need,we can supply the whole line. (bottle making machine,water trement system,washing,filling,capping 3 in1 machine,label machine,packing machine and so on)
technical parameters of the water bottleing machine (washing,filling,capping 3 in 1) :
Model: | CGF16/12/6 | CGF18/18/6 | CGF24/24/8 | CGF32/32/12 | CGF40/40/12 | CGF48/48/12 |
Production Capacity:500ml(B/h) | 4000 | 6000 | 10000 | 14000 | 17000 | 20000 |
Suitable Bottle Standard:(mm) | 150-300 | 150-340 | 150-340 | 150-340 | 150-340 | 150-340 |
Suitable Cap Standard:(mm) | φ50-φ110 | |||||
Filling Pressure:(Mpa) | 0.2-0.3 | |||||
Filling Model: | by Gavity | |||||
Power:(KW) | 3.13 | 3.84 | 3.84 | 5.6 | 6.3 | 7.3 |
Filling Temperature: | Room Temperature | Room Temperature | Room Temperature | Room Temperature | Room Temperature | Room Temperature |
Overall SizeL×W×H(mm) | 2400×1670 | 2470×1970 | 2865×2170 | 3700×2570 | 3800×2950 | 4500×3400 |
Total Weight:(kg) | 2500 | 3000 | 4000 | 5000 | 6000 | 7000 |

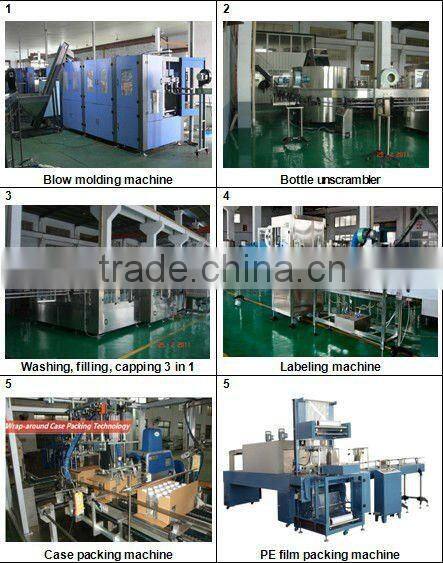

the photos of whole line
Our technology from Taiwan and Germany,Our machine have good quality and competitive price,Hope cooperate with you!
