Beverage Processing Machinery
- shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | chenyu | |
| Model Number | CGF |
Product Description
Specifications
beverage processing machinery1.Fully automatic
2.spped:2000-30000bph
nology from Taiwan and Germany
4.PLC control
beverage processing machinery
1. Technical parameters:
Model: | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-12 | RCGF40-40-12 | |
Production Capacity :500ml | 5000 | 8000 | 12000 | 15000 | |
Suitable Bottle Standard :(mm) | 150-340 | ||||
Suitable Cap Standard :(mm) | Φ50-Φ110 | ||||
Filling Temperature : | 80°-90° | ||||
Filling Pressure :(Mpa) | 0.2-0.25 | ||||
Installed Capacity :(L) | 3.5 | 4 | 6 | 8 | |
Overall Size L×W×H(mm) | 2400×1800×2350 | 2800×2200×2350 | 3600×2650×2350 | 3800×2950×2400 | |
Total Weight :(kg) | 3200 | 4200 | 5200 | 6200 | |

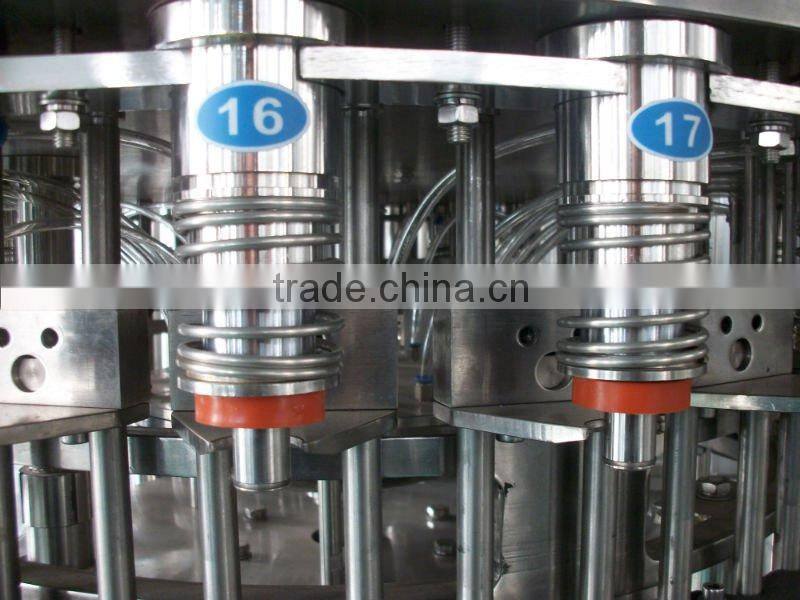

2. Machine Picture
3.Advantages
1. The washing, filling and capping 3 kinds of jobswill be finished just by this one machine.
2.it is very convenient to change diverse sizes of bottles by means of advanced bottleneck clamping & bottle suspending technology.
3.Main electronic components are all from famous international enterprises
4.Advanced programmable PLC is equipped to control the main machine. Working speed can be adjusted by frequency conversion device.
5.All spare parts that may touch with water are made from high-quality stainless steel.
6.The operation and maintenance are convenient.
Our technology from Taiwan and Germany,Our machine have good quality and competitive price,Hope cooperate with you!
