Pepsi Cola Filling Machine
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | CYFilling | |
| Model Number | DCGF |
Product Description
Specifications
pepsi cola filling machine1-stainless steel 304 316L
2- bottle size: 0.3-2.0L
3- capacity: 3000-30000BPH

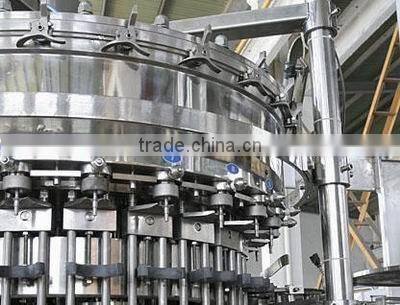

pepsi cola filling machine
Washing-Filling-Capping 3in1 Monobloc
DCGF Series carbonated beverage filling equipment adopts bottle neck holding transmission technology to realize fully automatic washing, filling and capping. It is equipped with CO2 accuracy pressure control, so that the liquid level is always stable. The application of alarm devices for bottle jam, bottle shortage, bottle damage, cap shortage, over loading etc. In several places ensure the quality of its production. The machine obtains advantages of high reliability, high efficiency, high grade of automation and easy operation, etc.
Characteristics:
1. The washing, filling and capping 3 kinds of jobs will be finished just by this one machine.
2. It is very convenient to change sizes of bottles by means of advanced bottleneck clamping & bottle suspending technology
3. Advanced programmable PLC is equipped to control the main machine.
4. Working speed can be adjusted by frequency conversion device.
5. Main electronic components are all from famous international enterprises
Technical parameters:
| Model | DCGF16/12/6 | DCGF18/18/6 | DCGF24/24/8 | DCGF32/32/10 | DCGF40/40/12 | DCGF50/50/15 |
| Number of Washing Head | 16 | 18 | 24 | 32 | 40 | 50 |
| Number of Filling Head | 12 | 18 | 24 | 32 | 40 | 50 |
| Number of Capping Head | 6 | 6 | 8 | 10 | 12 | 15 |
| Rated Production Capacity (500ml) | 3000BPH | 5000BPH | 8000BPH | 12000BPH | 15000BPH | 18000BPH |
| Installed Capacity | 3.5KW | 4KW | 4.8KW | 7.6KW | 8.3KW | 9.6KW |
| Overall Size | 2450× 1800× 2400mm | 2650× 1900× 2400mm | 2900× 2100× 2400mm | 4100× 2400× 2400mm | 4550× 2650× 2400mm | 5450× 3210× 2400mm |
